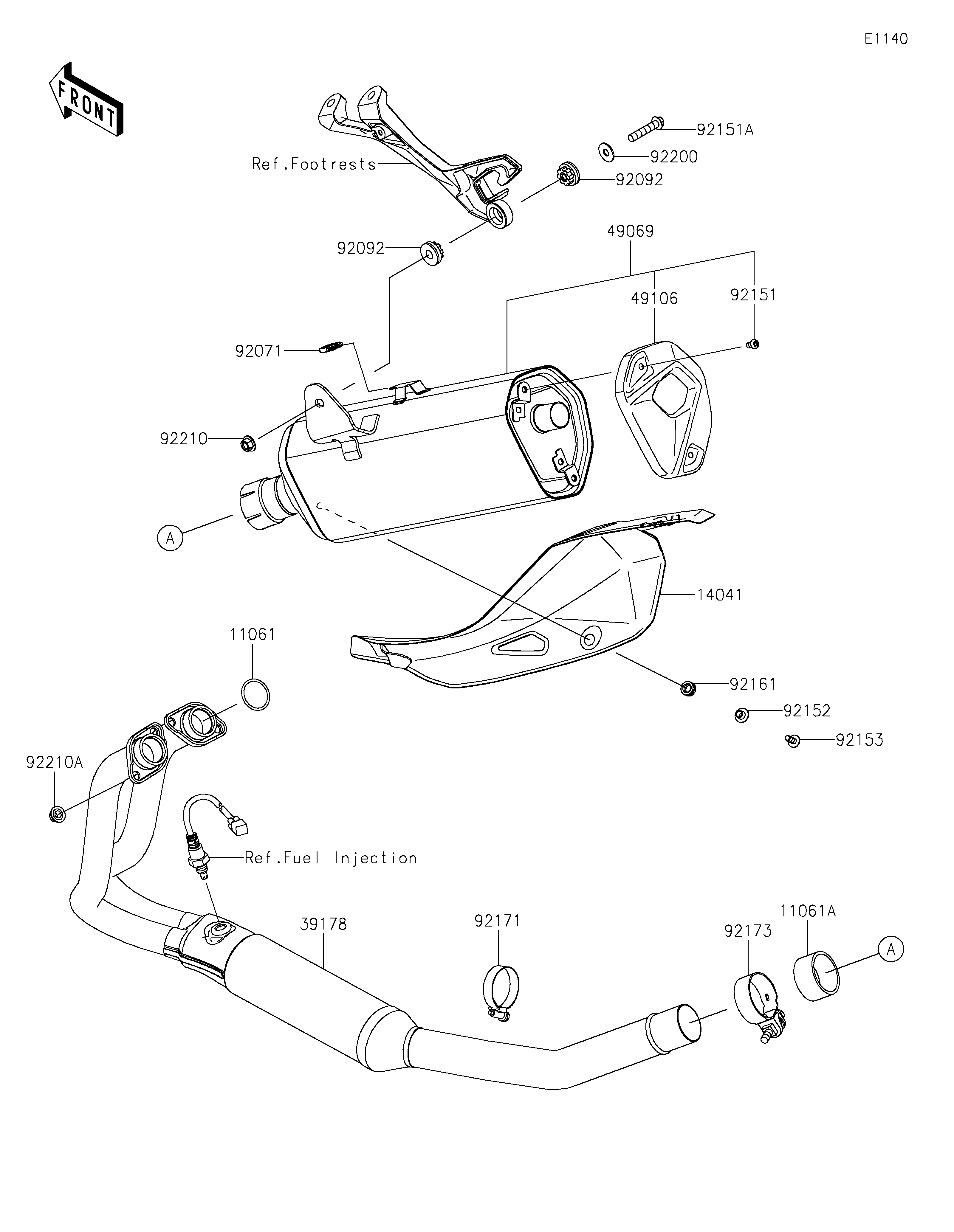

Parts Diagrams |
11061
11061A
14041
39178
49069
49106
92071
92092
92092
92151
92151A
92152
92153
92161
92171
92173
92200
92210
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE | 11061 | 11061-1249 | 2 | ||
| GASKET,EXHAUST PIPE CONNECTING | 11061A | 11061-1266 | 1 | ||
| COVER-COMP,MUFFLER | 14041 | 14041-0604 | 1 | ||
| MANIFOLD-COMP-EXHAUST | 39178 | 39178-0315 | 1 | ||
| MUFFLER-ASSY | 49069 | 49069-0846 | 1 | ||
| COVER-MUFFLER,END | 49106 | 49106-0827 | 1 | ||
| GROMMET | 92071 | 92071-0786 | 1 | ||
| BUSHING-RUBBER | 92092 | 92092-0018 | 2 | ||
| BOLT,SOCKET,6X10 | 92151 | 92151-1449 | 2 | ||
| BOLT,FLANGED,8X40 | 92151A | 92151-1532 | 1 | ||
| COLLAR,6.3X8.3X16 | 92152 | 92152-0286 | 1 | ||
| BOLT,SOCKET,6X16 | 92153 | 92153-0817 | 1 | ||
| DAMPER | 92161 | 92161-2152 | 1 | ||
| CLAMP | 92171 | 92171-0058 | 1 | ||
| CLAMP | 92173 | 92173-1931 | 1 | ||
| WASHER,8.0X22.0X1.5 | 92200 | 92200-0174 | 1 | ||
| NUT,8MM | 92210 | 92210-0121 | 1 | ||
| NUT,8MM | 92210A | 92210-1114 | 4 |
| GASKET,EXHAUST PIPE | |
| REF # | 11061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST PIPE CONNECTING | |
| REF # | 11061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-COMP,MUFFLER | |
| REF # | 14041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MANIFOLD-COMP-EXHAUST | |
| REF # | 39178 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MUFFLER-ASSY | |
| REF # | 49069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-MUFFLER,END | |
| REF # | 49106 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSHING-RUBBER | |
| REF # | 92092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X10 | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X40 | |
| REF # | 92151A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.3X8.3X16 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X16 | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92173 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.0X22.0X1.5 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
