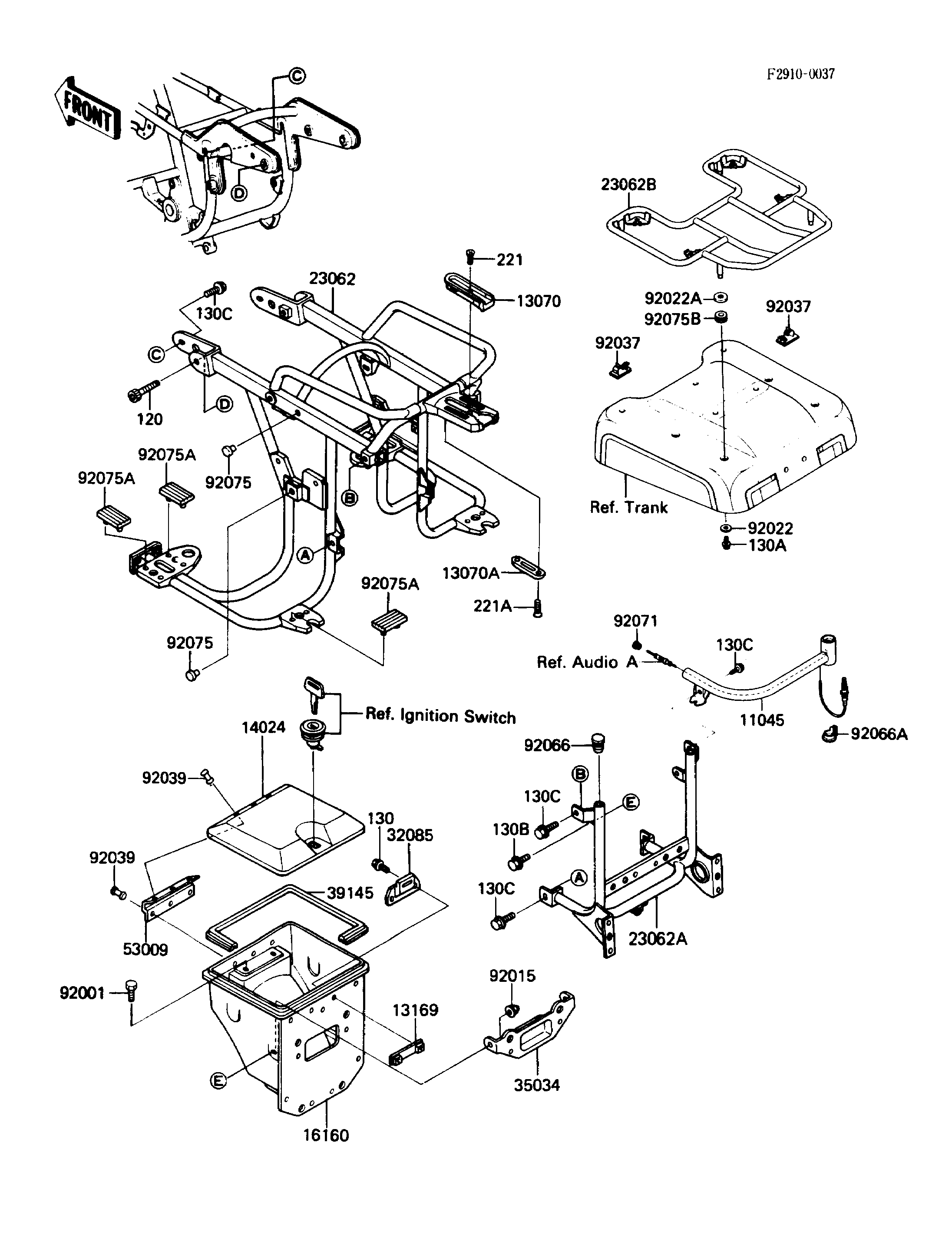

1987 Voyager - Accessory

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ANTENNA 11045 11045-1983 1
GUIDE,TRUNK LOCK 13070 13070-1083 1
GUIDE,TRUNK LOCK 13070A 13070-1104 2
PLATE,STORAGE CASE 13169 13169-1611 1
COVER,STORAGE CASE 14024 14025-1673 1
BODY,STORAGE CASE 16160 16160-1012 1
BRACKET-COMP,SIDEBAG 23062 23062-1052 1
BRACKET-COMP,TAIL LAMP 23062A 23062-1053 1
BRACKET-COMP,REAR SPEAKER 23062B 23062-1075 1
STOPPER,STORAGE CASE CAP 32085 32085-1127 1
REINFORCE,REAR FENDER 35034 35034-1106 1
TRIM-SEAL,STORAGE CASE 39145 39145-1008 1
HINGE,STORAGE CASE 53009 53009-1038 1
BOLT,6X20 92001 92001-1826 2
NUT,CAP,6MM,BLACK 92015 92015-1170 2
WASHER,6.5X26X1,BLACK 92022 92022-1248 4
WASHER,CAP TYPE 92022A 92022-1638 4
CLAMP,HARNESS 92037 92037-1816 2
RIVET,BLIND 92039 92039-1040 6
PLUG 92066 92066-1093 2
PLUG 92066A 92066-1287 1
GROMMET 92071 92071-1156 1
DAMPER 92075 92075-005 4
DAMPER 92075A 92075-1489 6
DAMPER 92075B 92075-197 4
BOLT-SOCKET,8X55 120 120S0855 2
BOLT-FLANGED,5X12 130 130C0512 2
BOLT-FLANGED,6X10,BLACK 130A 130C0610 4
BOLT-FLANGED,6X12 130B 130C0612 2
BOLT-FLANGED,8X16,BLACK 130C 130J0816 6
SCREW-CSK-CROS,5X8 221 221C0508 1
SCREW-CSK-CROS 221A 221C0512 4
