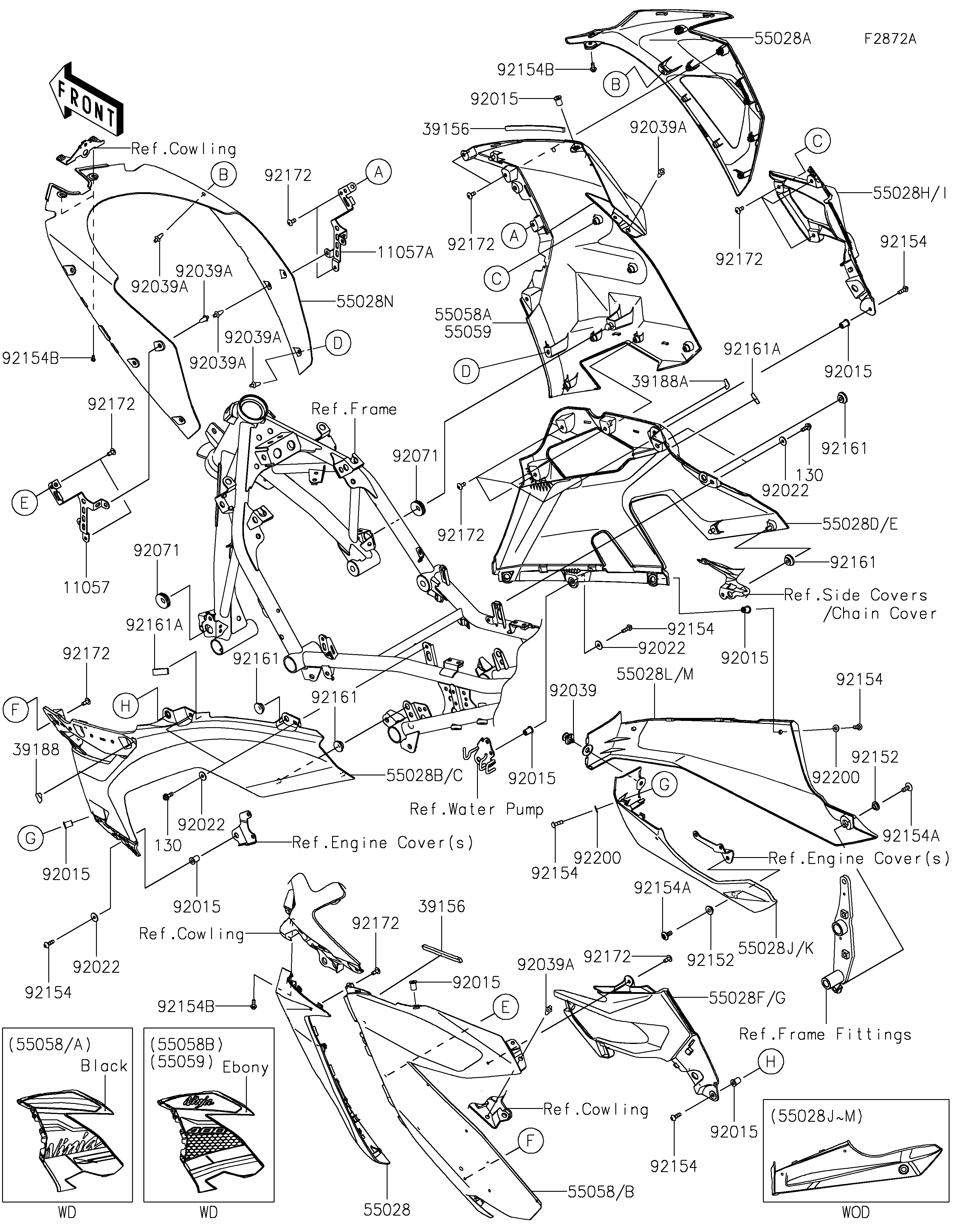

2020 NINJA® 400 ABS - Cowling Lowers(GLFA)

DOWNLOAD PDF
SELECT A NEW PART
55028B
55028B
55028D
55028D
55028F
55028F
55028H
55028H
55028J
55028J
55028L
55028L
55058
55058
55058A
55058A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COWLING,SIDE,LWR,LH,M.S.BLACK 55028B 55028-0641-660 1 CN
COWLING,SIDE,LWR,RH,M.S.BLACK 55028D 55028-0642-660 1 CN
COWLING,FIN,LH,M.M.G.GRAY 55028F 55028-0643-53U 1 CN
COWLING,FIN,RH,M.M.G.GRAY 55028H 55028-0644-53U 1 CN
COWLING,LWR,LH,M.S.BLACK 55028J 55028-0645-660 1 CN
COWLING,LWR,RH,M.S.BLACK 55028L 55028-0646-660 1 CN
COWLING,SIDE,UPP,LH,M.S.BLACK 55058 55058-5423-660 1 CN
COWLING,SIDE,UPP,RH,M.S.BLACK 55058A 55058-5425-660 1 CN
