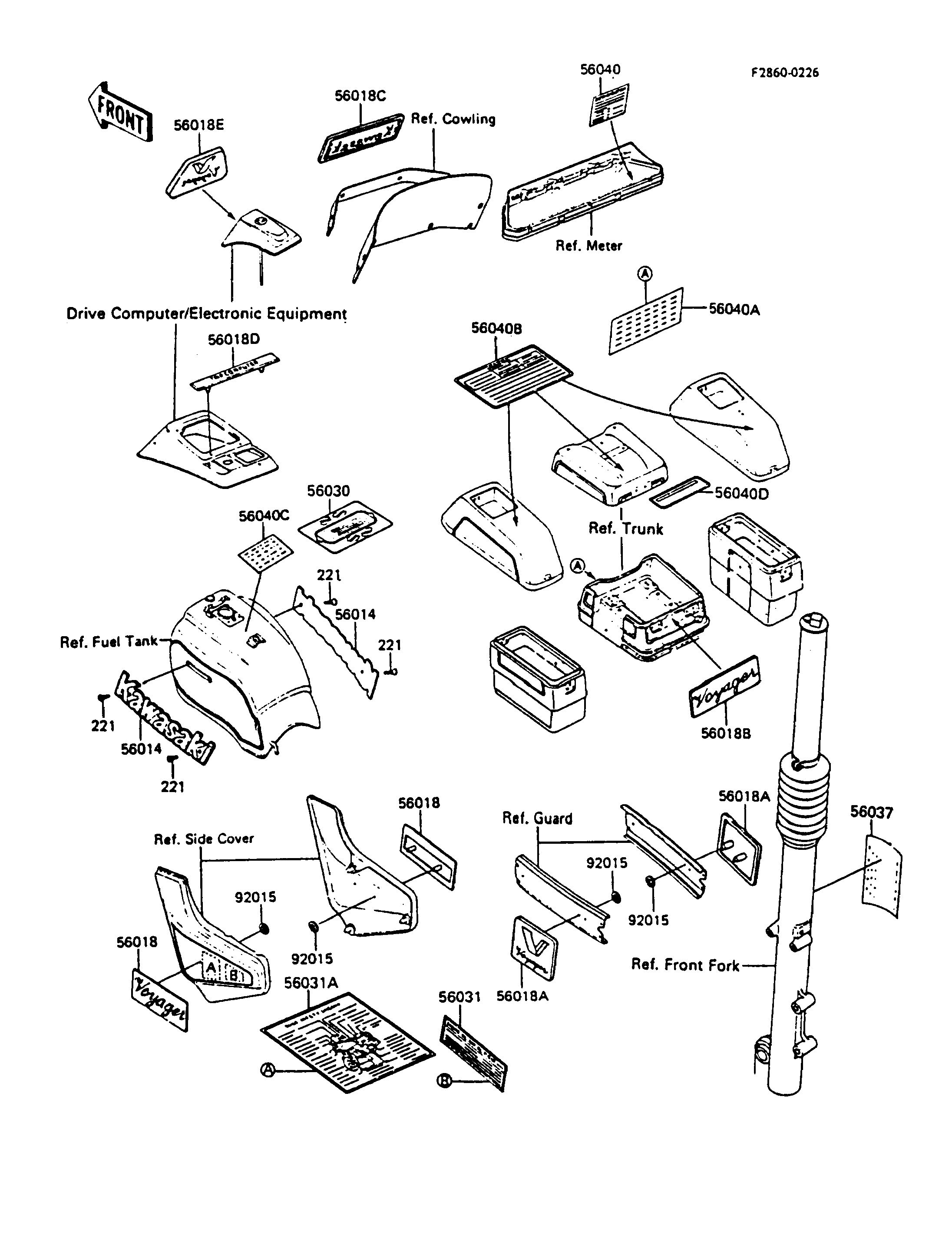

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK | 56014 | 56014-1058 | 2 | ||
| MARK,SIDE COVER,"VOYAGER" | 56018 | 56018-1421 | 2 | ||
| MARK,SIDEBAG | 56018A | 56018-1422 | 2 | ||
| MARK,TRUNK,"VOYAGER" | 56018B | 56018-1423 | 1 | ||
| MARK,COWLING,"KAWASAKI" | 56018C | 56018-1424 | 1 | ||
| MARK,TRIP COMPUTER | 56018D | 56018-1425 | 1 | ||
| MARK,COMPASS SENSOR COVER | 56018E | 56018-1426 | 1 | ||
| LABEL,RIDING & SAFETY | 56030 | 56030-1087 | 1 | ||
| LABEL-MANUAL,ENGINE OIL | 56031 | 56031-1321 | 1 | ||
| LABEL-MANUAL,DAILY SAFETY | 56031A | 56031-1323 | 1 | ||
| LABEL-SPECIFICATION,TIRE&LOAD | 56037 | 56037-1387 | 1 | ||
| LABEL-WARNING,BREAK IN CAUTION | 56040 | 56040-1007 | 1 | ||
| LABEL-WARNING,TRUNK ADJUST | 56040A | 56040-1109 | 1 | ||
| LABEL-WARNING,MAXIMUM LOAD | 56040B | 56040-1114 | 3 | ||
| LABEL-WARNING,EVAPO | 56040C | 56040-1121 | 1 | CA | |
| LABEL-WARNING,MAXIMUM LOAD | 56040D | 56040-1222 | 1 | ||
| NUT,PUSH,3MM | 92015 | 92018-005 | 8 | ||
| SCREW-CSK-CROS | 221 | 221C0306 | 4 |
| EMBLEM,FUEL TANK | |
| REF # | 56014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,"VOYAGER" | |
| REF # | 56018 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDEBAG | |
| REF # | 56018A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,TRUNK,"VOYAGER" | |
| REF # | 56018B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,COWLING,"KAWASAKI" | |
| REF # | 56018C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,TRIP COMPUTER | |
| REF # | 56018D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,COMPASS SENSOR COVER | |
| REF # | 56018E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL,RIDING & SAFETY | |
| REF # | 56030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,ENGINE OIL | |
| REF # | 56031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-MANUAL,DAILY SAFETY | |
| REF # | 56031A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-SPECIFICATION,TIRE&LOAD | |
| REF # | 56037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,BREAK IN CAUTION | |
| REF # | 56040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,TRUNK ADJUST | |
| REF # | 56040A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,MAXIMUM LOAD | |
| REF # | 56040B |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| LABEL-WARNING,EVAPO | |
| REF # | 56040C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| LABEL-WARNING,MAXIMUM LOAD | |
| REF # | 56040D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,PUSH,3MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SCREW-CSK-CROS | |
| REF # | 221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
