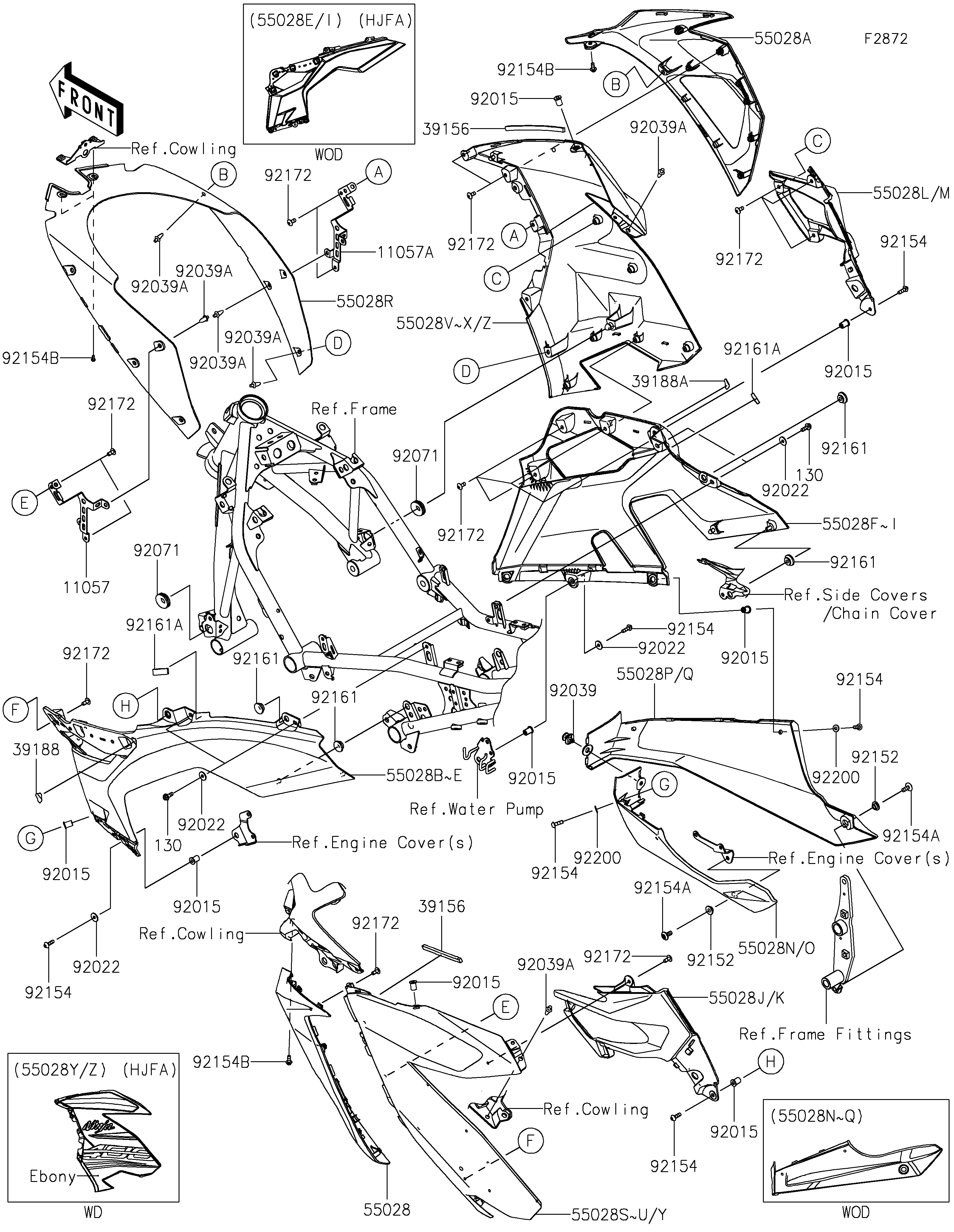

Parts Diagrams |
55028E
55028E
55028I
55028I
55028K
55028K
55028M
55028M
55028O
55028O
55028Q
55028Q
55028Y
55028Y
55028Z
55028Z
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COWLING,SIDE,LWR,LH,EBONY | 55028E | 55028-0641-H8 | 1 | ||
| COWLING,SIDE,LWR,RH,EBONY | 55028I | 55028-0642-H8 | 1 | ||
| COWLING,FIN,LH,L.GREEN | 55028K | 55028-0643-777 | 1 | ||
| COWLING,FIN,RH,L.GREEN | 55028M | 55028-0644-777 | 1 | ||
| COWLING,LWR,LH,EBONY | 55028O | 55028-0645-H8 | 1 | ||
| COWLING,LWR,RH,EBONY | 55028Q | 55028-0646-H8 | 1 | ||
| COWLING,SIDE,UPP,LH,EBONY | 55028Y | 55028-5486-H8 | 1 | ||
| COWLING,SIDE,UPP,RH,EBONY | 55028Z | 55028-5487-H8 | 1 |
| COWLING,SIDE,LWR,LH,EBONY | |
| REF # | 55028E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,LWR,RH,EBONY | |
| REF # | 55028I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,FIN,LH,L.GREEN | |
| REF # | 55028K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,FIN,RH,L.GREEN | |
| REF # | 55028M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,LH,EBONY | |
| REF # | 55028O |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,RH,EBONY | |
| REF # | 55028Q |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,UPP,LH,EBONY | |
| REF # | 55028Y |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,SIDE,UPP,RH,EBONY | |
| REF # | 55028Z |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
