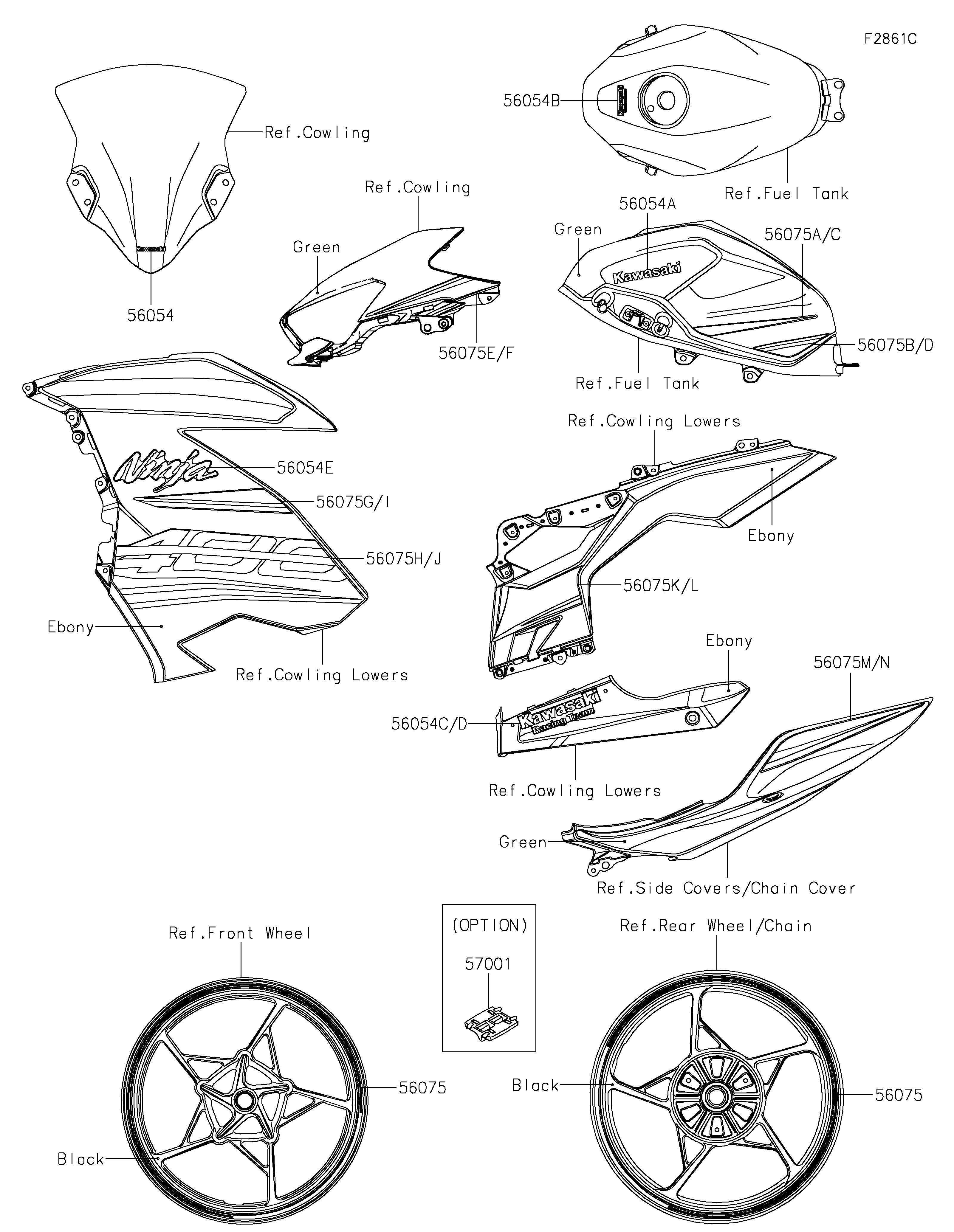

2019 Ninja® 400 - Decals(Green)(HJFA)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56054B
56054C
56054D
56054E
56075
56075
56075A
56075B
56075C
56075D
56075E
56075F
56075G
56075H
56075I
56075J
56075K
56075L
56075M
56075N
57001
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,WINDSHIELD,KAWASAKI 56054 56054-2261 1
MARK,FUEL TANK,KAWASAKI 56054A 56054-2395 2
MARK,FUEL TANK,KAWASAKI RT 56054B 56054-2396 1
MARK,LWR COWL.,LH,KAWASAKI RT 56054C 56054-2397 1
MARK,LWR COWL.,RH,KAWASAKI RT 56054D 56054-2398 1
MARK,UPP SIDE COWL.,NINJA 56054E 56054-2399 2
PATTERN,WHEEL,BLACK,6X1079 56075 56075-1540 4
PATTERN,FUEL TANK,LH,UPP 56075A 56075-4227 1
PATTERN,FUEL TANK,LH,LWR 56075B 56075-4228 1
PATTERN,FUEL TANK,RH,UPP 56075C 56075-4229 1
PATTERN,FUEL TANK,RH,LWR 56075D 56075-4230 1
PATTERN,UPP COWL.,LH 56075E 56075-4231 1
PATTERN,UPP COWL.,RH 56075F 56075-4232 1
PATTERN,UPP SIDE COWL.,LH,UPP 56075G 56075-4233 1
PATTERN,UPP SIDE COWL.,LH,LWR 56075H 56075-4234 1
PATTERN,UPP SIDE COWL.,RH,UPP 56075I 56075-4235 1
PATTERN,UPP SIDE COWL.,RH,LWR 56075J 56075-4236 1
PATTERN,LWR SIDE COWL.,LH 56075K 56075-4237 1
PATTERN,LWR SIDE COWL.,RH 56075L 56075-4238 1
PATTERN,TAIL COVER,LH 56075M 56075-4239 1
PATTERN,TAIL COVER,RH 56075N 56075-4240 1
RIM STRIPE APPLICATOR 57001 57001-1752 AR (OPTION)
