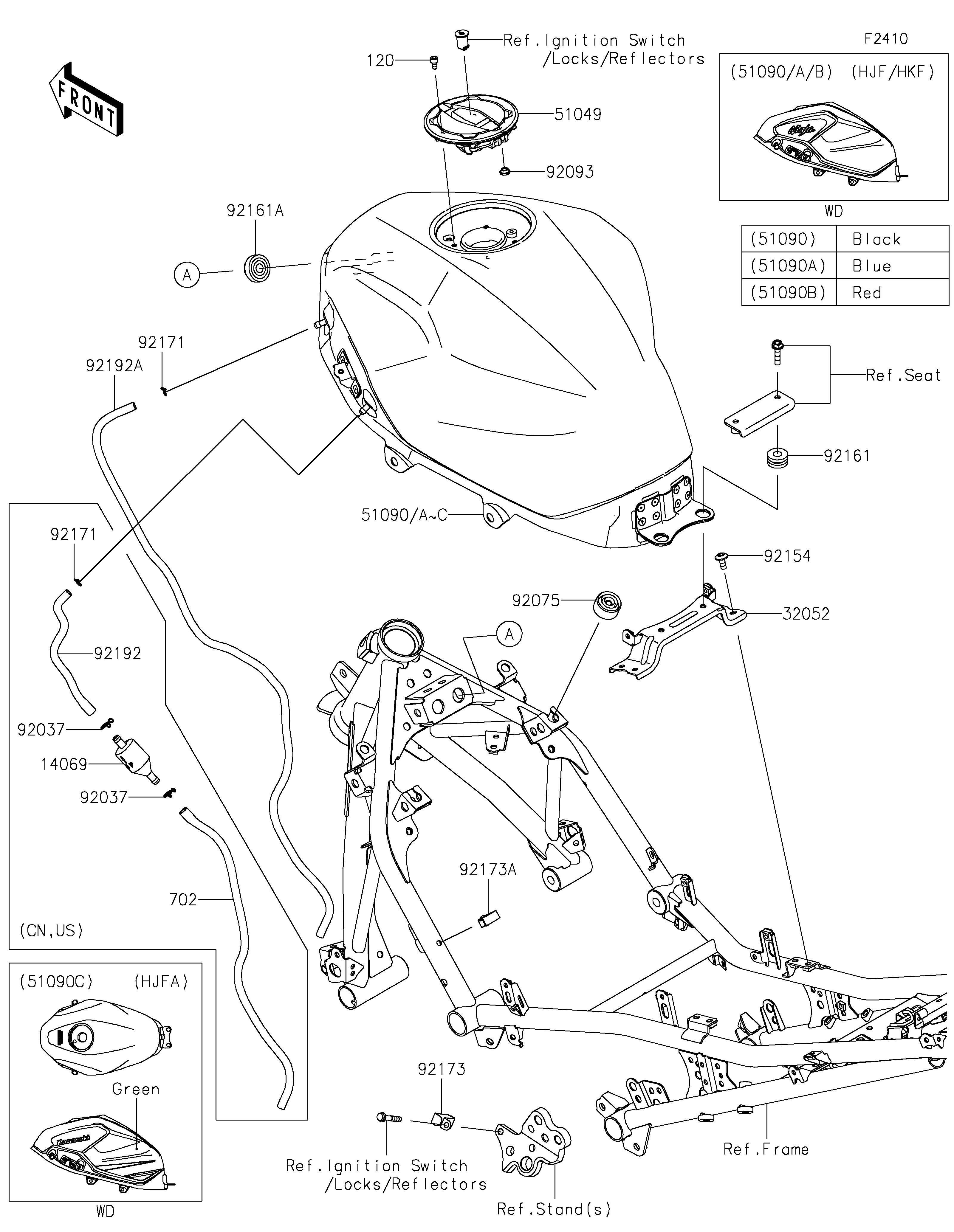

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BREATHER,FUEL TANK | 14069 | 14069-1004 | 1 | _________________________________________CN,US | |
| TANK-COMP-FUEL,L.GREEN | 51090C | 51090-5236-777 | 1 | ||
| CLAMP,TUBE | 92037 | 92037-147 | 2 | _________________________________________CN,US | |
| CLAMP,8X0.7 | 92171 | 92171-1973 | 2 | _________________________________________CA | |
| TUBE,6X9X200 | 92192 | 92192-1824 | 1 | _________________________________________CN,US | |
| TUBE-RUBBER,6X9X450 | 702 | 702A06450 | 1 | _________________________________________CN,US |
| BREATHER,FUEL TANK | |
| REF # | 14069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| TANK-COMP-FUEL,L.GREEN | |
| REF # | 51090C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| CLAMP,8X0.7 | |
| REF # | 92171 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | _________________________________________CA |
| TUBE,6X9X200 | |
| REF # | 92192 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| TUBE-RUBBER,6X9X450 | |
| REF # | 702 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
