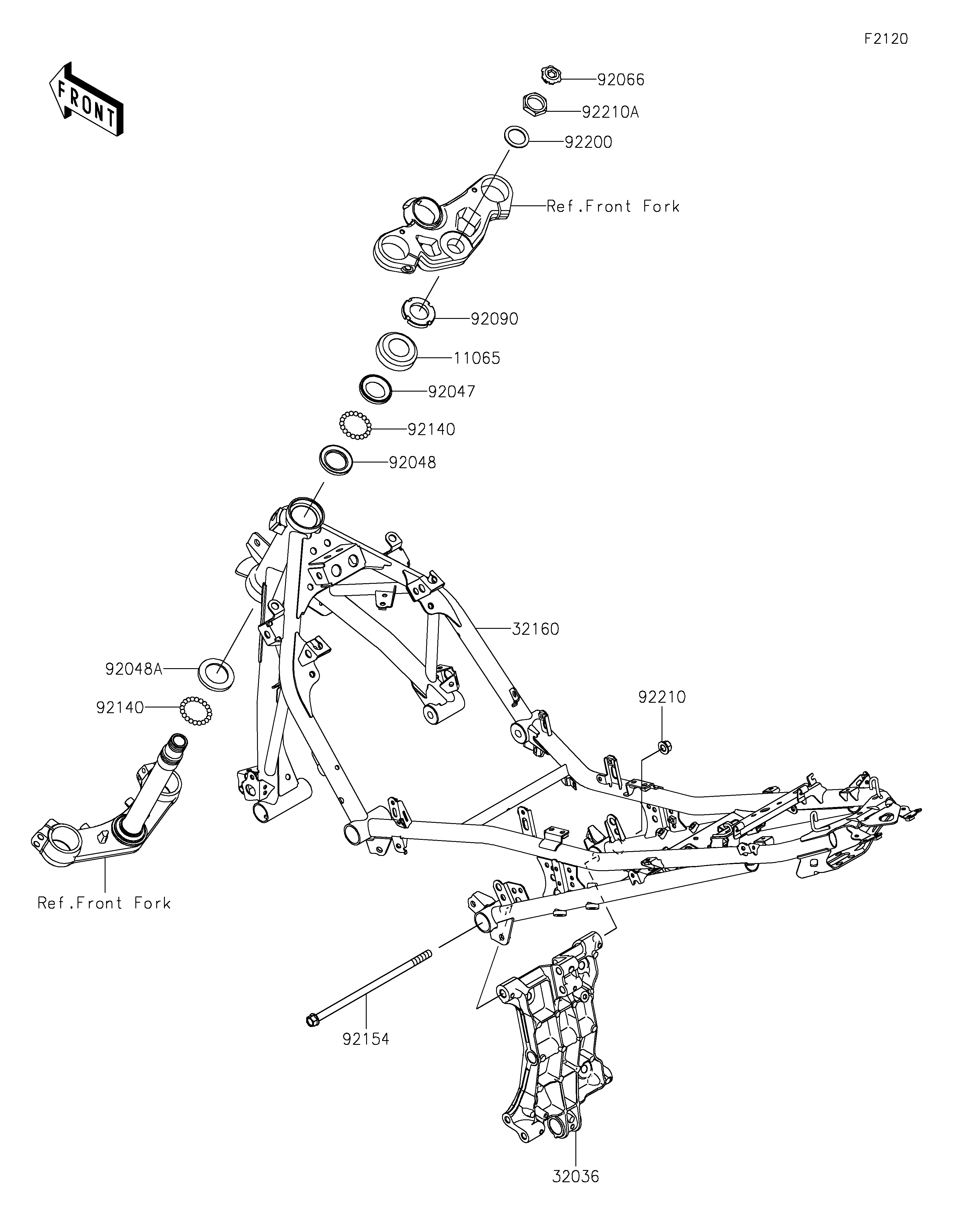

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11065 | 11065-1290 | 1 | _________________________________________CN,US | |
| BRACKET-SWINGARM | 32036 | 32036-0376 | 1 | _________________________________________CN,US | |
| FRAME-COMP,F.S.BLACK | 32160 | 32160-0949-18R | 1 | _________________________________________CN,US | |
| RACE,STEERING STEM BEARING | 92047 | 92047-011 | 1 | _________________________________________CN,US | |
| RACE,STEERING STEM BEARING | 92048 | 92048-006 | 1 | _________________________________________CN,US | |
| RACE,STEERING STEM BEARING | 92048A | 92048-008 | 1 | _________________________________________CN,US | |
| PLUG | 92066 | 92066-0915 | 1 | _________________________________________CN,US | |
| NUT,30MM | 92090 | 92090-007 | 1 | _________________________________________CN,US | |
| BALL,6.35MM | 92140 | 92140-0008 | 39 | _________________________________________CN,US 3 | |
| BOLT,FLANGED,10X231 | 92154 | 92154-3738 | 1 | _________________________________________CN,US | |
| WASHER,25.5X36X1.6 | 92200 | 92200-1858 | 1 | _________________________________________CN,US | |
| NUT,LOCK,FLANGED,10MM | 92210 | 92210-1139 | 1 | _________________________________________CN,US | |
| NUT,25MM | 92210A | 92210-1586 | 1 | _________________________________________CN,US |
| CAP | |
| REF # | 11065 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| BRACKET-SWINGARM | |
| REF # | 32036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| FRAME-COMP,F.S.BLACK | |
| REF # | 32160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| RACE,STEERING STEM BEARING | |
| REF # | 92047 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| RACE,STEERING STEM BEARING | |
| REF # | 92048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| RACE,STEERING STEM BEARING | |
| REF # | 92048A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| NUT,30MM | |
| REF # | 92090 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| BALL,6.35MM | |
| REF # | 92140 |
|---|---|
| PART NUMBER | |
| QUANTITY | 39 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US 3 |
| BOLT,FLANGED,10X231 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| WASHER,25.5X36X1.6 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| NUT,LOCK,FLANGED,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
| NUT,25MM | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | _________________________________________CN,US |
