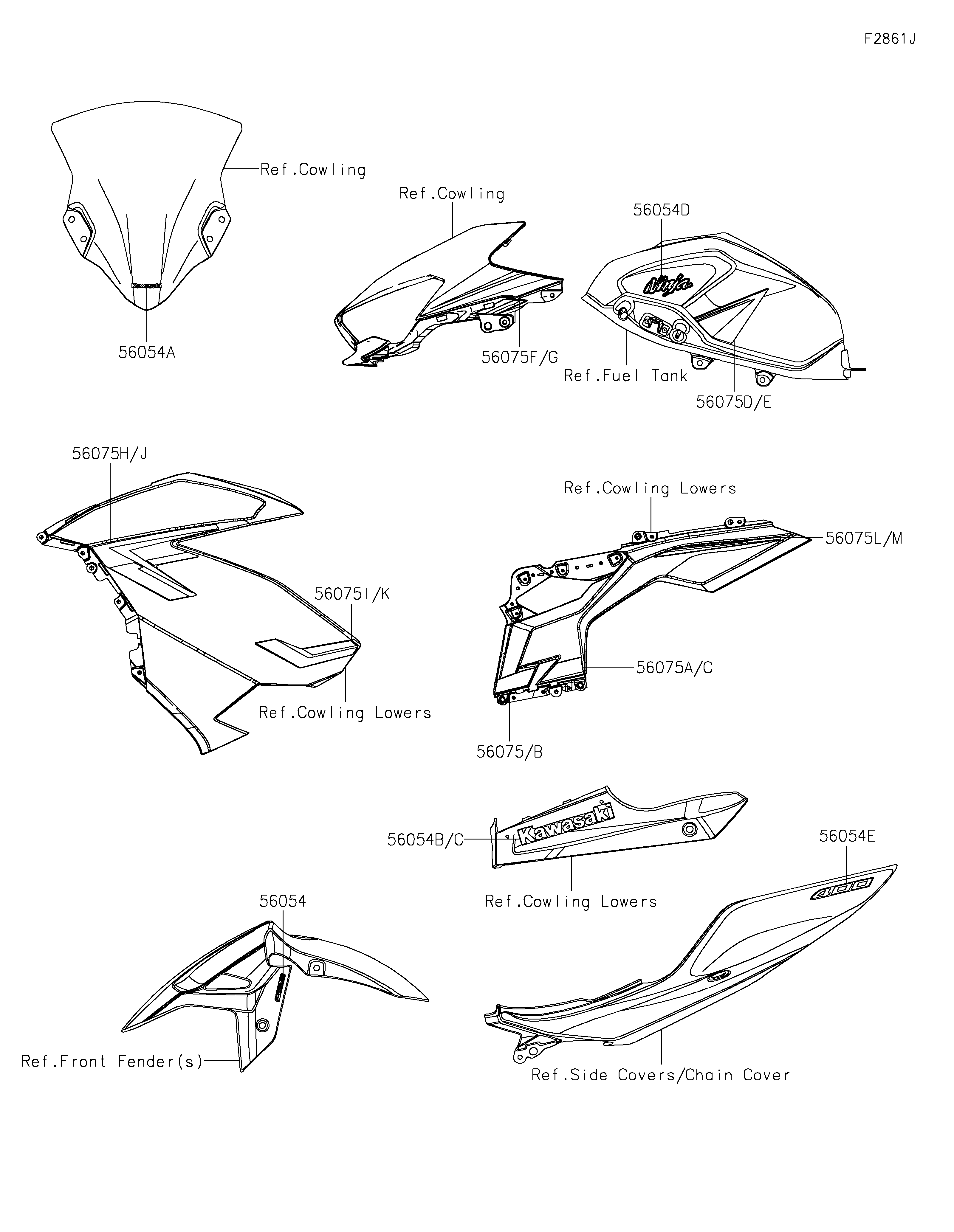

2018 NINJA® 400 ABS - Decals(Gray)(GKFB)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56054B
56054C
56054D
56054E
56075
56075A
56075B
56075C
56075D
56075E
56075F
56075G
56075H
56075I
56075J
56075K
56075L
56075M
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FR FENDER,ABS 56054 56054-1412 -
MARK,WINDSHIELD,KAWASAKI 56054A 56054-2261 -
MARK,LWR COWL.,LH,KAWASAKI 56054B 56054-2496 -
MARK,LWR COWL.,RH,KAWASAKI 56054C 56054-2497 -
MARK,FUEL TANK,NINJA 56054D 56054-2529 -
MARK,TAIL COVER,400 56054E 56054-2530 -
PATTERN,LWR COWL.,LH,FR 56075 56075-7361 -
PATTERN,LWR COWL.,LH,RR 56075A 56075-7362 -
PATTERN,LWR COWL.,RH,FR 56075B 56075-7364 -
PATTERN,LWR COWL.,RH,RR 56075C 56075-7365 -
PATTERN,FUEL TANK,LH 56075D 56075-7605 -
PATTERN,FUEL TANK,RH 56075E 56075-7606 -
PATTERN,UPP COWL.,LH 56075F 56075-7607 -
PATTERN,UPP COWL.,RH 56075G 56075-7608 -
PATTERN,SIDE COWL.,LH,UPP 56075H 56075-7663 -
PATTERN,SIDE COWL.,LH,LWR 56075I 56075-7664 -
PATTERN,SIDE COWL.,RH,UPP 56075J 56075-7665 -
PATTERN,SIDE COWL.,RH,LWR 56075K 56075-7666 -
PATTERN,LWR COWL.,LH,UPP 56075L 56075-7667 -
PATTERN,LWR COWL.,RH,UPP 56075M 56075-7668 -
