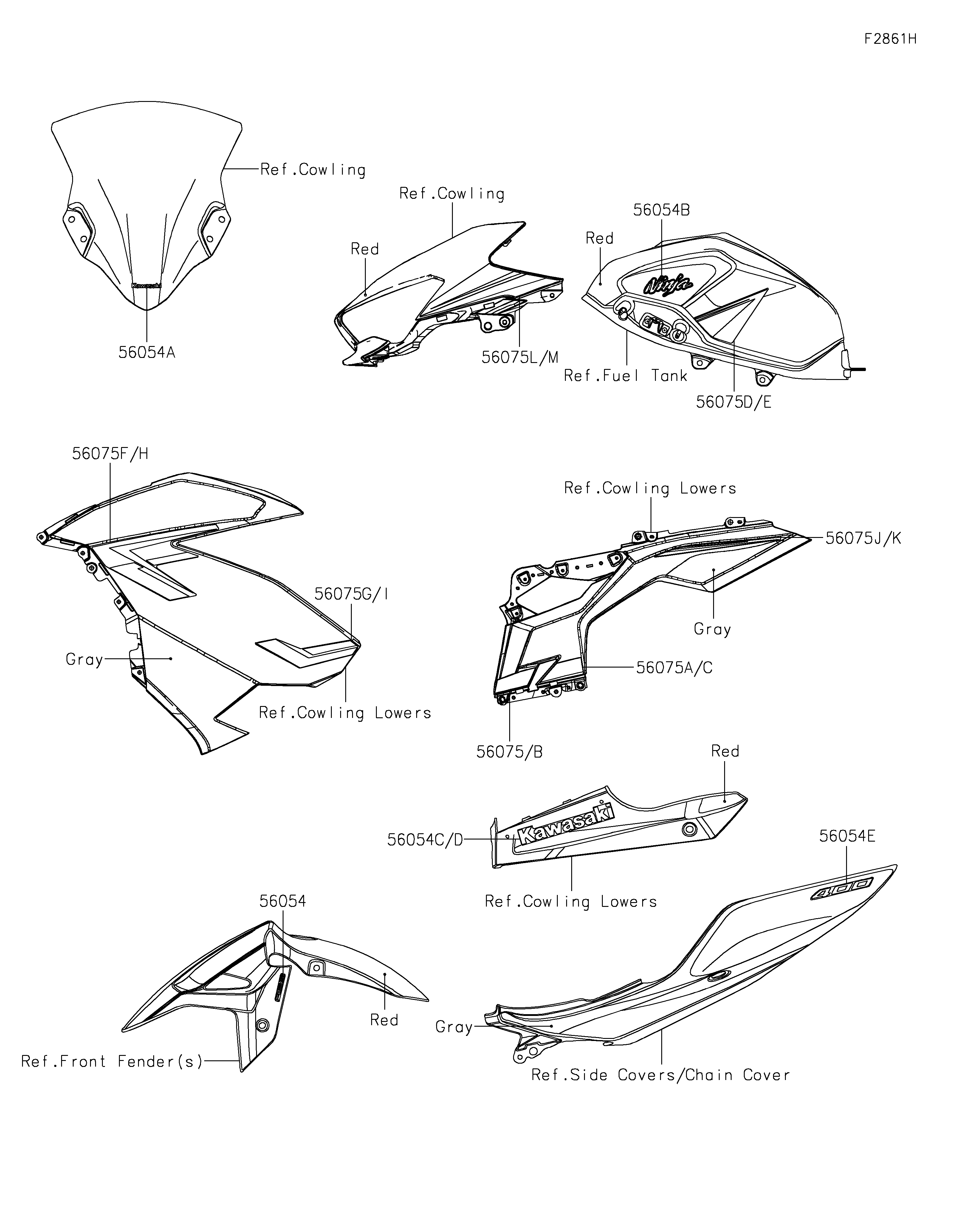

2018 NINJA® 400 ABS - Decals(Red)(GKFB)(CA,US)

DOWNLOAD PDF
SELECT A NEW PART
56054
56054A
56054B
56054C
56054D
56054E
56075
56075A
56075B
56075C
56075D
56075E
56075F
56075G
56075H
56075I
56075J
56075K
56075L
56075M
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,FR FENDER,ABS 56054 56054-1412 - CA,US
MARK,WINDSHIELD,KAWASAKI 56054A 56054-2261 - CA,US
MARK,FUEL TANK,NINJA 56054B 56054-2522 - CA,US
MARK,LWR COWL.,LH 56054C 56054-2523 - CA,US
MARK,LWR COWL.,RH 56054D 56054-2524 - CA,US
MARK,TAIL COVER,400 56054E 56054-2528 - CA,US
PATTERN,LWR COWL.,LH,FR 56075 56075-7541 - CA,US
PATTERN,LWR COWL.,LH,RR 56075A 56075-7542 - CA,US
PATTERN,LWR COWL.,RH,FR 56075B 56075-7544 - CA,US
PATTERN,LWR COWL.,RH,RR 56075C 56075-7545 - CA,US
PATTERN,FUEL TANK,LH 56075D 56075-7549 - CA,US
PATTERN,FUEL TANK,RH 56075E 56075-7550 - CA,US
PATTERN,SIDE COWL.,LH,UPP 56075F 56075-7551 - CA,US
PATTERN,SIDE COWL.,LH,LWR 56075G 56075-7552 - CA,US
PATTERN,SIDE COWL.,RH,UPP 56075H 56075-7553 - CA,US
PATTERN,SIDE COWL.,RH,LWR 56075I 56075-7554 - CA,US
PATTERN,LWR COWL.,LH,UPP 56075J 56075-7555 - CA,US
PATTERN,LWR COWL.,RH,UPP 56075K 56075-7556 - CA,US
PATTERN,UPP COWL.,LH 56075L 56075-7557 - CA,US
PATTERN,UPP COWL.,RH 56075M 56075-7558 - CA,US
