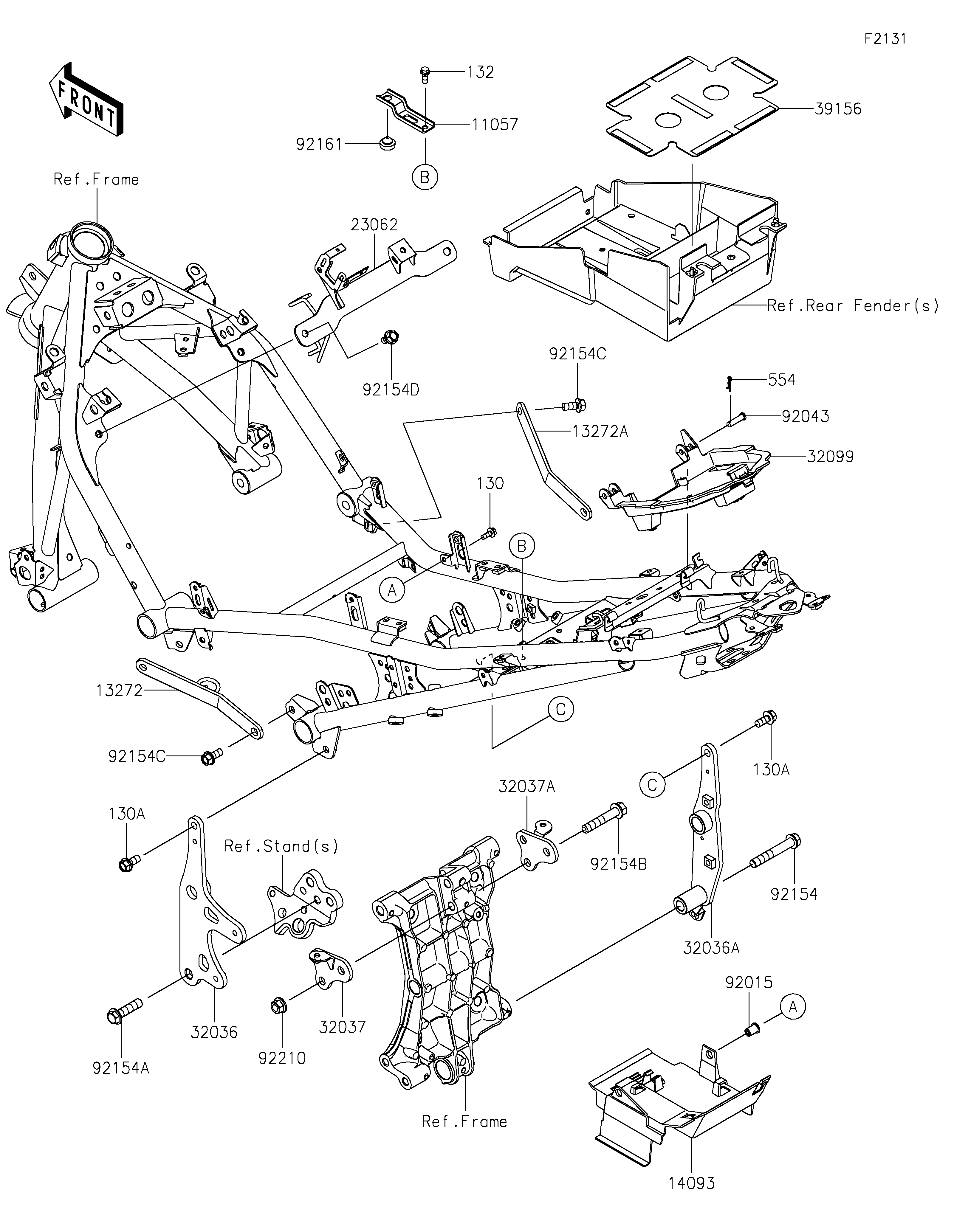

2018 NINJA® 400 ABS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11057
13272
13272A
14093
23062
32036
32036A
32037
32037A
32099
39156
92015
92043
92154
92154A
92154B
92154C
92154C
92154D
92161
92210
130
130A
130A
132
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,BATTERY 11057 11057-1213 -
PLATE,FRAME CONNECT,LH 13272 13272-2435 -
PLATE,FRAME CONNECT,RH 13272A 13272-2552 -
COVER,ECU 14093 14093-0646 -
BRACKET-COMP,CROSS FRAME 23062 23062-0970 -
BRACKET-SWINGARM,LH 32036 32036-0378 -
BRACKET-SWINGARM,RH 32036A 32036-0379 -
BRACKET-SHOCKABSORBER,LH 32037 32037-0407 -
BRACKET-SHOCKABSORBER,RH 32037A 32037-0408 -
CASE,SEAT UNDER 32099 32099-0787 -
PAD,BATTERY CASE 39156 39156-2220 -
NUT,WELL,5MM 92015 92015-1757 -
PIN,6X23 92043 92043-0746 -
BOLT,FLANGED,10X65 92154 92154-1964 -
BOLT,FLANGED,10X40 92154A 92154-2812 -
BOLT,FLANGED,10X54 92154B 92154-2813 -
BOLT-FLANGED,8X14 92154C 92154-3782 -
BOLT-FLANGED,8X14 92154D 92154-3851 -
DAMPER,9.5X18X6 92161 92161-1473 -
NUT,LOCK,FLANGED,10MM 92210 92210-1139 -
BOLT-FLANGED,5X14 130 130BA0514 -
BOLT-FLANGED,8X18 130A 130CA0818 -
BOLT-FLANGED-SMALL,6X14 132 132BC0614 -
PIN-SNAP,1.2X21.2 554 554DA0600 -
