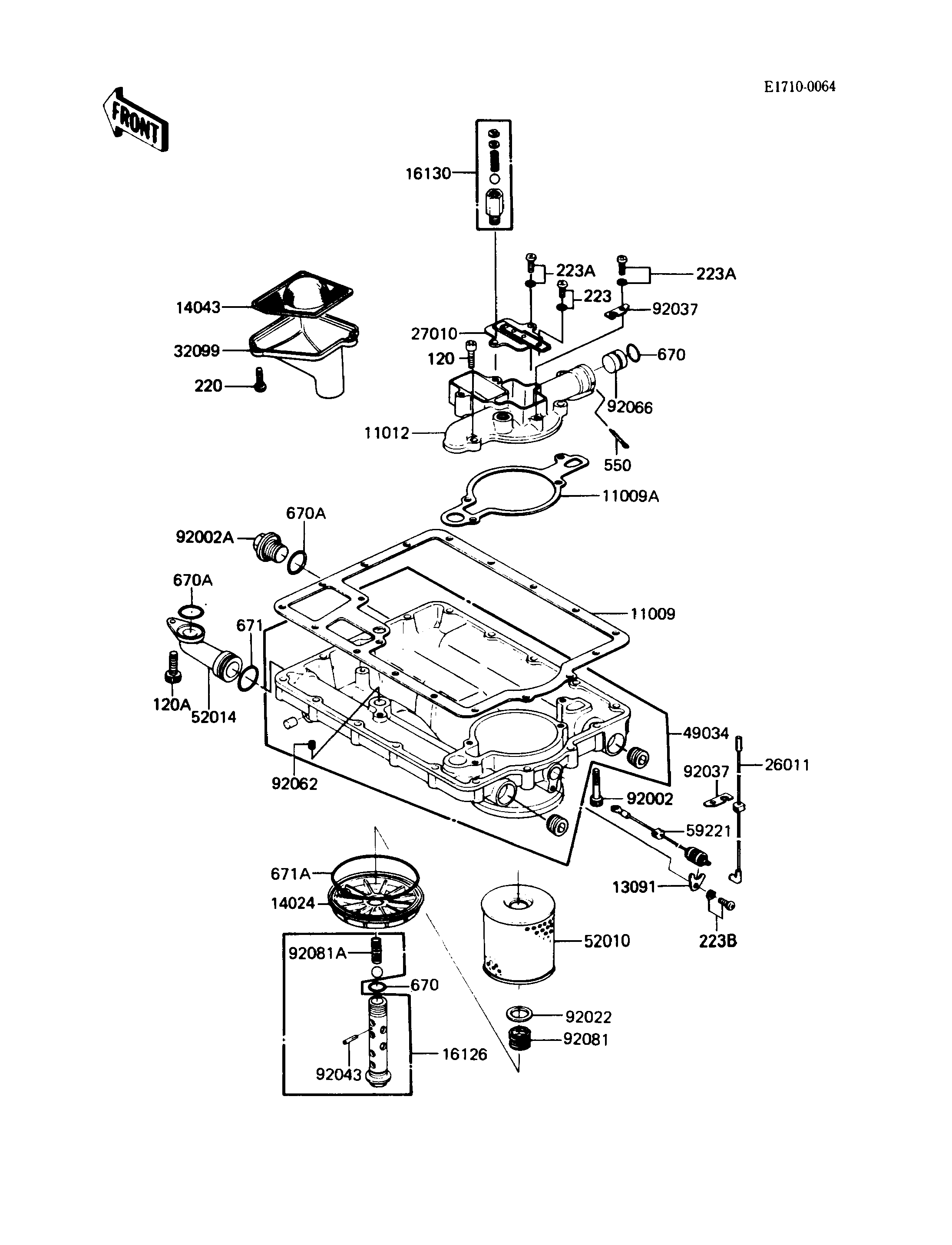

1987 Voyager - Oil Pan/Oil Filter

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,OIL PAN 11009 11009-1093 1
GASKET,OIL FILTER CAP 11009A 11009-1198 1
CAP,OIL FILTER 11012 11012-1148 1
HOLDER,CONNECTOR 13091 13091-1080 1
COVER,OIL FILTER 14024 14025-1170 1
FILTER,OIL 14043 14043-1008 1
VALVE,OIL FILTER 16126 16126-1006 1
VALVE-ASSY-RELIEF 16130 16130-1001 1
WIRE-LEAD,OIL SWITCH 26011 26011-1262 1
SWITCH,OIL LEVEL 27010 27010-1038 1
CASE,OIL FILTER 32099 32099-1017 1
PAN-OIL 49034 49034-5005 1
ELEMENT-OIL FILTER 52010 16099-002 1
ELBOW,OIL PASSAGE 52014 52014-1002 1
CONNECTOR-CORD,OIL SWITCH 59221 59221-1002 1
BOLT,6X35 92002 92002-1270 17
BOLT,OIL DRAIN 92002A 92002-1276 1
WASHER,20.5X30X1 92022 92022-1012 1
CLAMP,LEAD WIRE 92037 92037-1211 3
PIN,SPRING,2X20 92043 92043-111 1
NOZZLE,BLACK 92062 92062-011 1
PLUG,OIL GALLARY,16X3.2 92066 92066-1023 1
SPRING,OIL FILTER 92081 92081-1018 1
SPRING 92081A 92081-133 1
BOLT-SOCKET,6X35 120 120P0635 4
BOLT-SOCKET 120A 120Z0620 1
SCREW-PAN-CROS,6X20,WHITE 220 220B0620 3
SCREW-PAN-WS-CROS 223 223B0406 1
SCREW-PAN-WS-CROS 223A 223B0614 3
SCREW-PAN-WS-CROS 223B 223D0614 1
PIN-COTTER,2.0X40 550 550D2040 1
O RING,16MM 670 670B2016 2
O RING,22MM 670A 670B2022 2
O RING,25MM 671 671B2525 1
O RING,95MM 671A 671B2595 1
