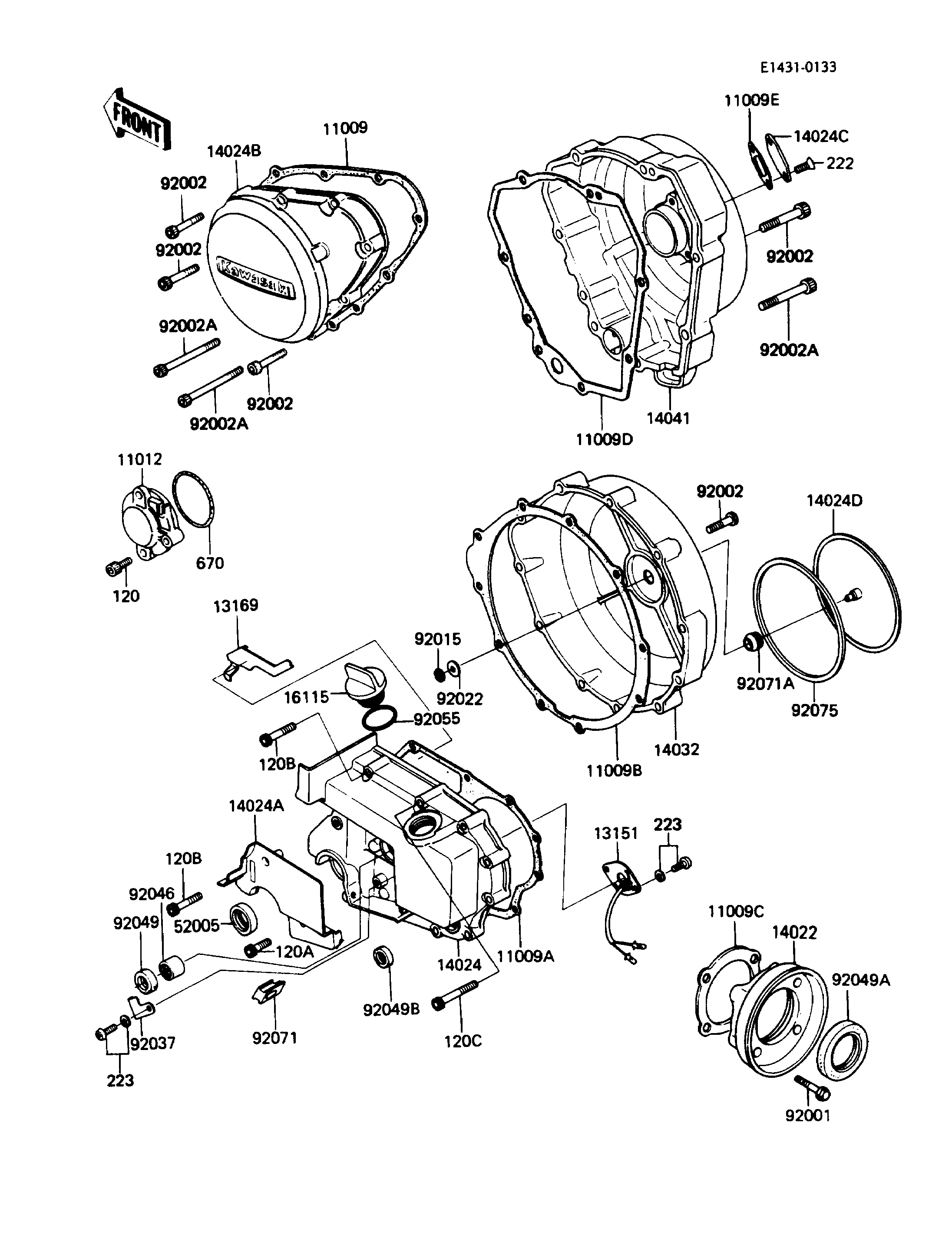

1987 Voyager - Engine Cover(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,ENGINE COVER,LH 11009 11009-1090 1
GASKET,MISSION COVER 11009A 11009-1091 1
GASKET,CLUTCH COVER 11009B 11009-1092 1
GASKET,BEARING CAP 11009C 11009-1159 1
GASKET,GENERATOR COVER 11009D 11009-1269 1
GASKET,OIL INSPECTION COVER 11009E 11009-1270 1
CAP,TIMING SPROCKET 11012 11012-1060 1
SWITCH-COMP,NEUTRAL 13151 13151-1013 1
PLATE,BAFFLE,BREATHER 13169 13169-1131 1
CAP-BEARING,OUTLET SHAFT 14022 14022-1005 1
COVER,TRANSMISSION,SILVER #10 14024 14025-1617 1
COVER,RELEASE 14024A 14025-1618 1
COVER,LH,GENERATOR 14024B 14025-1703 1
COVER,OIL INSPECTION 14024C 14025-1704 1
COVER,CLUTCH COVER 14024D 14025-1814 1
COVER-CLUTCH 14032 14032-1111 1
COVER-COMP,GENERATOR 14041 14041-1024 1
CAP-OIL FILLER 16115 16115-1009 1
GAUGE,OIL LEVEL 52005 52005-1017 1
BOLT,FLANGED,6X28 92001 92003-202 4
BOLT,6X35 92002 92002-1282 24
BOLT,6X50 92002A 92002-1283 4
NUT,LOCK,5MM 92015 92018-004 1
WASHER,5.5X20X1.2 92022 92022-104 1
CLAMP,CABLE 92037 92037-1152 1
BEARING-NEEDLE,7E-HK1412 92046 92046-037 1
SEAL-OIL,TC14244.8 92049 92049-1037 1
SEAL-OIL,TC35527 92049A 92049-1038 1
SEAL-OIL,TB13225.5 92049B 92051-005 1
RING-O,31.5X2.6 92055 92055-049 1
GROMMET 92071 92071-1051 1
GROMMET,CLUTCH COVER 92071A 92071-1108 1
DAMPER,CLUTCH COVER 92075 92075-1594 1
BOLT-SOCKET 120 120Z0614 2
BOLT-SOCKET 120A 120Z0616 1
BOLT-SOCKET 120B 120Z0635 9
BOLT-SOCKET 120C 120Z0645 4
SCREW-CSK-RD-CROS 222 222E0510 2
SCREW-PAN-WS-CROS 223 223B0612 3
O RING,45MM 670 670B3045 1
