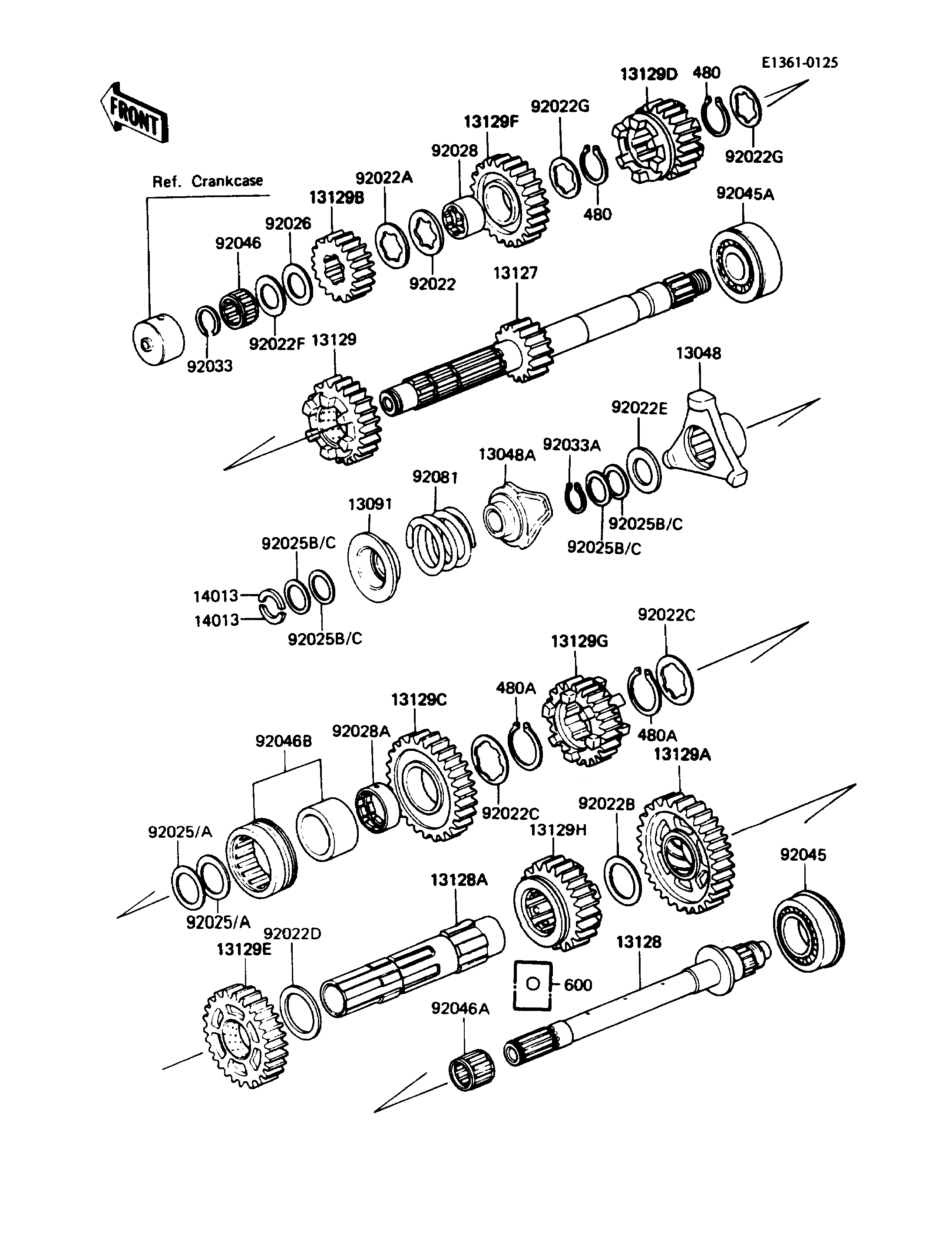

1987 Voyager - Transmission

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAM-DAMPER,FOLLOWER 13048 13048-1010 1
CAM-DAMPER 13048A 13048-1011 1
HOLDER,SPRING 13091 13091-1091 1
SHAFT-TRANSMISSION INPUT,16T 13127 13127-1113 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1050 1
SHAFT,OUTPUT,OUTER 13128A 13128-1109 1
GEAR,INPUT 4TH,27T 13129 13129-1098 1
GEAR,OUTPUT LOW,41T 13129A 13129-1426 1
GEAR,INPUT 2ND,20T 13129B 13129-1427 1
GEAR,OUTPUT 2ND,36T 13129C 13129-1428 1
GEAR,INPUT 3RD,24T 13129D 13129-1429 1
GEAR,OUTPUT 3RD,33T 13129E 13129-1430 1
GEAR,INPUT TOP,29T 13129F 13129-1592 1
GEAR,OUTPUT TOP,27T 13129G 13129-1593 1
GEAR,OUTPUT 4TH,30T 13129H 13129-1594 1
RING-POSITION 14013 14013-1001 2
WASHER,TOOTHED,30X38X3 92022 92022-1098 1
WASHER,CLAW,29X38X1 92022A 92022-1099 1
WASHER,34.3X44X1 92022B 92022-1100 1
WASHER,TOOTHED,36.3X46X1 92022C 92022-1101 2
WASHER,36.3X46X2 92022D 92022-1102 1
WASHER,23.2X38X3 92022E 92022-1103 1
WASHER,22.3X35X1.6 92022F 92022-212 1
WASHER,TOOTHED,26X35.5X1.5 92022G 92024-042 2
SHIM,34.3X42X0.1 92025 92025-1002 AR
SHIM,34.3X42X0.3 92025A 92025-1003 AR
SHIM,23.3X30.7X0.1 92025B 92025-1004 AR
SHIM,23.3X30.7X0.3 92025C 92025-1005 AR
SPACER,22X35.5X1.0 92026 92026-1020 1
BUSHING,INPUT TOP GEAR 92028 92028-1302 1
BUSHING,OUTPUT 2ND GEAR 92028A 92028-1303 1
RING-SNAP,20X25.5X1.2 92033 92033-025 1
RING-SNAP,22.8MM 92033A 92033-1021 1
BEARING-BALL,#3206 92045 92045-1018 1
BEARING-BALL,5305NSH2 92045A 92045-1028 1
BEARING-NEEDLE,FWF-223014 92046 92046-031 1
BEARING-NEEDLE,K23X28X24 92046A 92046-1015 1
BEARING-NEEDLE,TR1-346226E02 92046B 92046-1119 1
SPRING,DAMPER 92081 92081-1286 1
CIRCLIP-TYPE-C,28MM 480 480J2800 2
CIRCLIP-TYPE-C,36MM 480A 480J3600 2
BALL-STEEL,5/32" 600 600A0500 4
