Parts Diagrams |

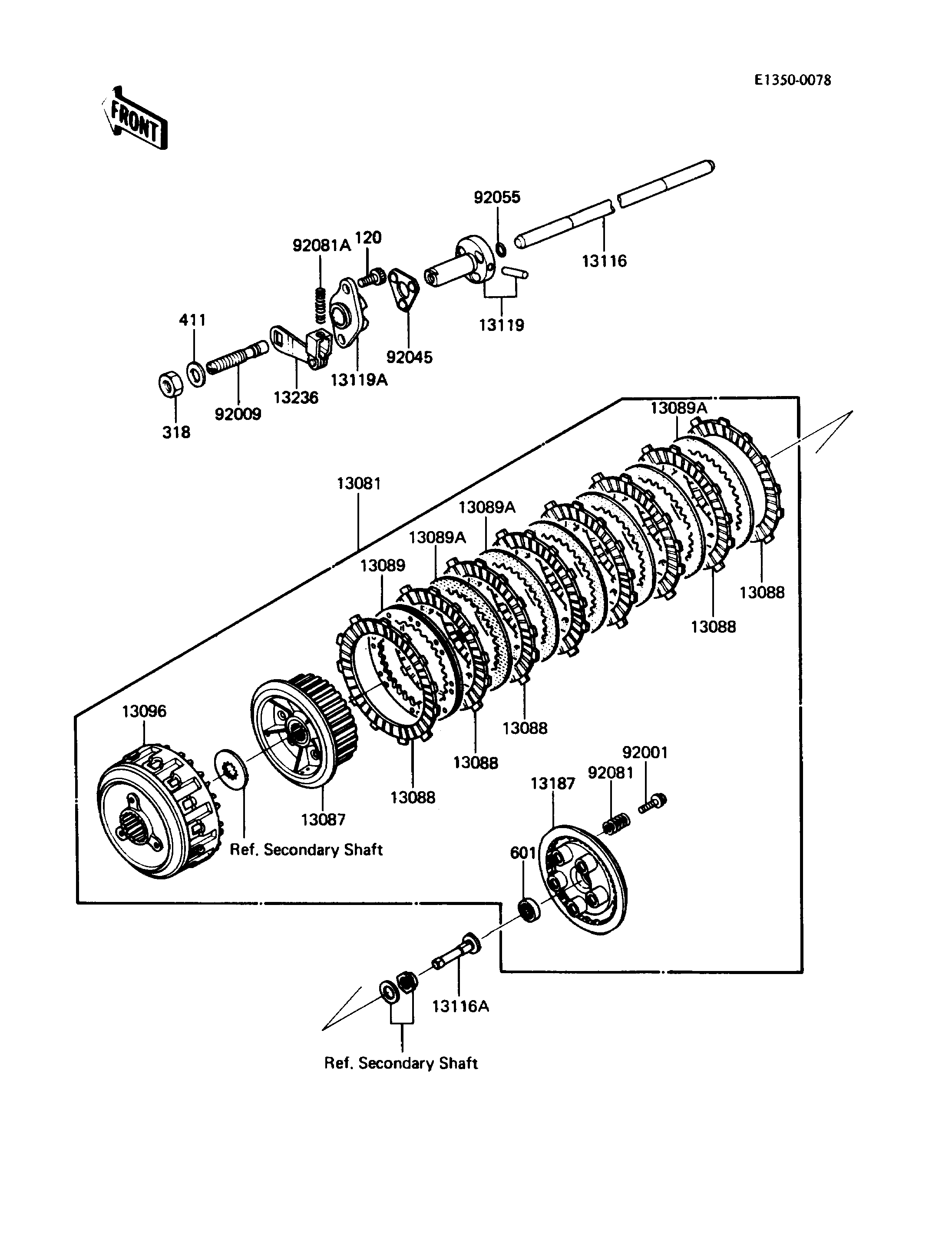

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CLUTCH-ASSY | 13081 | 13081-1172 | 1 | ||
| HUB-CLUTCH | 13087 | 13087-1055 | 1 | ||
| PLATE-FRICTION | 13088 | 13088-1018 | 8 | ||
| PLATE-CLUTCH | 13089 | 13089-1056 | 1 | ||
| PLATE-CLUTCH | 13089A | 13089-1057 | 6 | ||
| HOUSING-CLUTCH | 13096 | 13096-1059 | 1 | ||
| ROD-PUSH,CLUTCH | 13116 | 13116-1050 | 1 | ||
| ROD-PUSH | 13116A | 13116-1108 | 1 | ||
| CAM-RELEASE,CLUTCH,INNER | 13119 | 13119-1007 | 1 | ||
| CAM-RELEASE,CLUTCH,OUTER | 13119A | 13119-1008 | 1 | ||
| PLATE-CLUTCH OPERATING | 13187 | 13187-1015 | 1 | ||
| LEVER-COMP,CLUTCH RELEASE | 13236 | 13236-1055 | 1 | ||
| BOLT,FLANGED,6X18 | 92001 | 92001-1066 | 5 | ||
| SCREW,8MM | 92009 | 92009-1052 | 1 | ||
| BEARING-BALL,CLUTCH RELEASE | 92045 | 92045-1023 | 1 | ||
| RING-O,4.8X1.9 | 92055 | 92055-087 | 1 | ||
| SPRING,CLUTCH | 92081 | 92081-1033 | 5 | ||
| SPRING,COIL,9.7X95 | 92081A | 92081-1532 | 1 | ||
| BOLT-SOCKET,6X14 | 120 | 120P0614 | 2 | ||
| NUT-HEX-SMALL,8MM | 318 | 318B0800 | 1 | ||
| WASHER-PLAIN,8MM | 411 | 411B0800 | 1 | ||
| BEARING-BALL,#6001C3 | 601 | 601B6001 | 1 |
| CLUTCH-ASSY | |
| REF # | 13081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HUB-CLUTCH | |
| REF # | 13087 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-FRICTION | |
| REF # | 13088 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH | |
| REF # | 13089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH | |
| REF # | 13089A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| HOUSING-CLUTCH | |
| REF # | 13096 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-PUSH,CLUTCH | |
| REF # | 13116 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD-PUSH | |
| REF # | 13116A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAM-RELEASE,CLUTCH,INNER | |
| REF # | 13119 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAM-RELEASE,CLUTCH,OUTER | |
| REF # | 13119A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH OPERATING | |
| REF # | 13187 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-COMP,CLUTCH RELEASE | |
| REF # | 13236 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X18 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| SCREW,8MM | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,CLUTCH RELEASE | |
| REF # | 92045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,4.8X1.9 | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| SPRING,COIL,9.7X95 | |
| REF # | 92081A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,6X14 | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX-SMALL,8MM | |
| REF # | 318 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,8MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-BALL,#6001C3 | |
| REF # | 601 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
