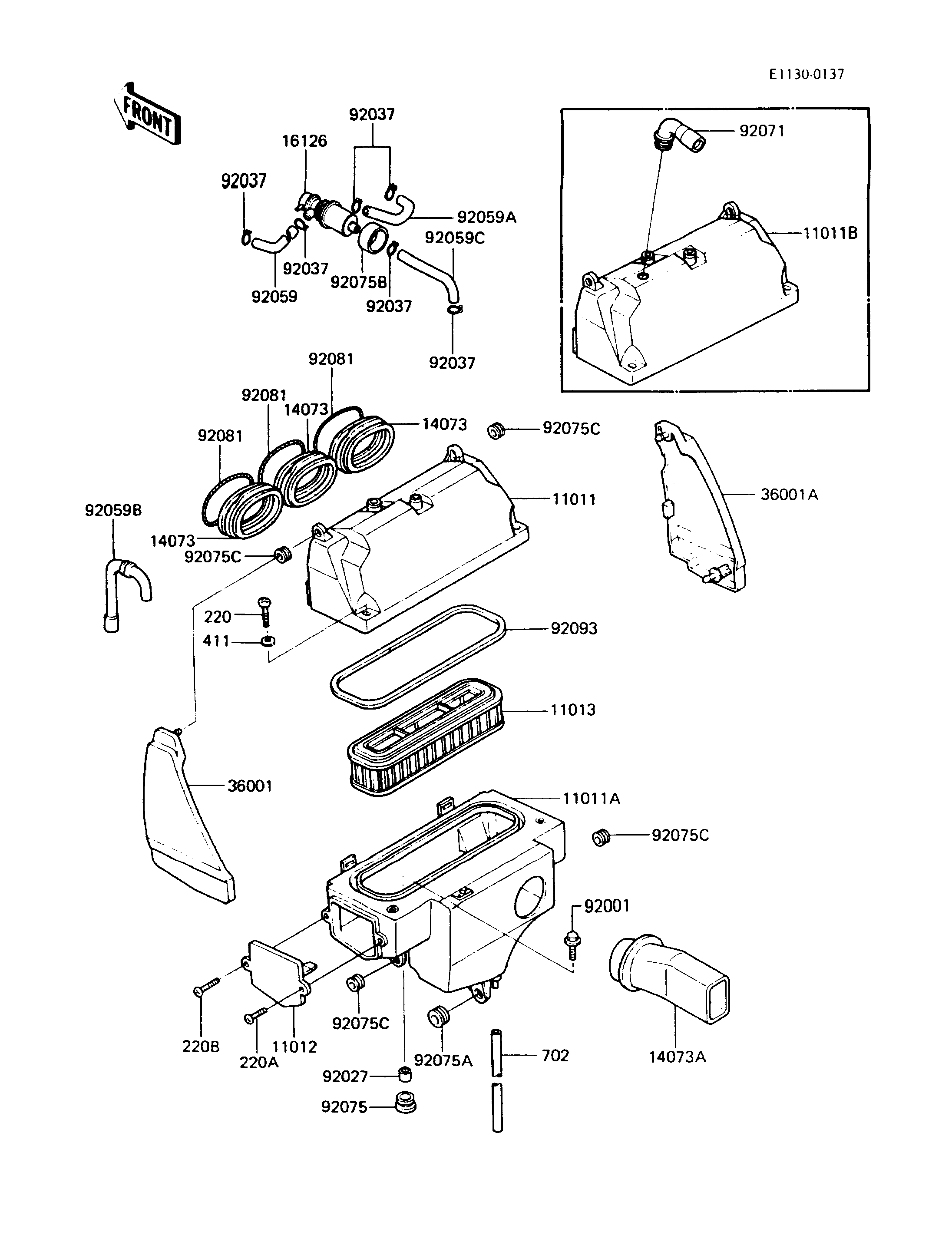

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-AIR FILTER,UPP | 11011 | 11011-1132 | 1 | US | |
| CASE-AIR FILTER,LWR | 11011A | 11011-1133 | 1 | ||
| CASE-AIR FILTER,UPP | 11011B | 11011-1171 | 1 | CA | |
| CAP,AIR FILTER | 11012 | 11012-1285 | 1 | ||
| ELEMENT-AIR FILTER | 11013 | 11013-1073 | 1 | ||
| DUCT,AIR FILTER | 14073 | 14073-1098 | 3 | ||
| DUCT,AIR FILTER | 14073A | 14073-1099 | 1 | ||
| VALVE,AIR SWITCHING | 16126 | 16126-1015 | 1 | ||
| COVER-SIDE,AIR FILTER,LH | 36001 | 36001-1202 | 1 | ||
| COVER-SIDE,AIR FILTER,RH | 36001A | 36001-1203 | 1 | ||
| BOLT,6X25,W/WASHER | 92001 | 92001-1140 | 2 | ||
| COLLAR,6.8X10X10.5 | 92027 | 92027-120 | 2 | ||
| CLAMP,TUBE | 92037 | 92037-213 | 6 | ||
| TUBE,SWITCH VALVE,LH | 92059 | 92059-1076 | 1 | ||
| TUBE,SWITCH VALVE,RH | 92059A | 92059-1077 | 1 | ||
| TUBE,AIR FILTER | 92059B | 92059-1266 | 1 | ||
| TUBE,AIRCUT VALVE | 92059C | 92059-1272 | 1 | ||
| GROMMET,AIR FILTER | 92071 | 92071-1114 | 1 | CA | |
| DAMPER,AIR FILTER | 92075 | 92075-1124 | 2 | ||
| DAMPER,FILTER COVER | 92075A | 92075-1126 | 1 | ||
| DAMPER,AIR SWITCH VALVE | 92075B | 92075-1195 | 1 | ||
| DAMPER | 92075C | 92075-1470 | 4 | ||
| SPRING,COIL,3.6X237.2 | 92081 | 92081-1540 | 3 | ||
| SEAL,AIR FILTER | 92093 | 92093-1088 | 1 | ||
| SCREW-PAN-CROS,6X30 | 220 | 220B0630 | 2 | ||
| SCREW-PAN-CROS,6X20,BLACK | 220A | 220C0620 | 1 | ||
| SCREW-PAN-CROS,6X30,BLACK | 220B | 220C0630 | 1 | ||
| WASHER-PLAIN,6MM | 411 | 411B0600 | 2 | ||
| TUBE-RUBBER,6X110 | 702 | 702A06110 | 1 |
| CASE-AIR FILTER,UPP | |
| REF # | 11011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
| CASE-AIR FILTER,LWR | |
| REF # | 11011A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-AIR FILTER,UPP | |
| REF # | 11011B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| CAP,AIR FILTER | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT-AIR FILTER | |
| REF # | 11013 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR FILTER | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR FILTER | |
| REF # | 14073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE,AIR SWITCHING | |
| REF # | 16126 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,AIR FILTER,LH | |
| REF # | 36001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,AIR FILTER,RH | |
| REF # | 36001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X25,W/WASHER | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.8X10X10.5 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| TUBE,SWITCH VALVE,LH | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,SWITCH VALVE,RH | |
| REF # | 92059A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,AIR FILTER | |
| REF # | 92059B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,AIRCUT VALVE | |
| REF # | 92059C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET,AIR FILTER | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | CA |
| REMARKS | |
| DAMPER,AIR FILTER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,FILTER COVER | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,AIR SWITCH VALVE | |
| REF # | 92075B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPRING,COIL,3.6X237.2 | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SEAL,AIR FILTER | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,6X30 | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,6X20,BLACK | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,6X30,BLACK | |
| REF # | 220B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,6MM | |
| REF # | 411 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE-RUBBER,6X110 | |
| REF # | 702 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
