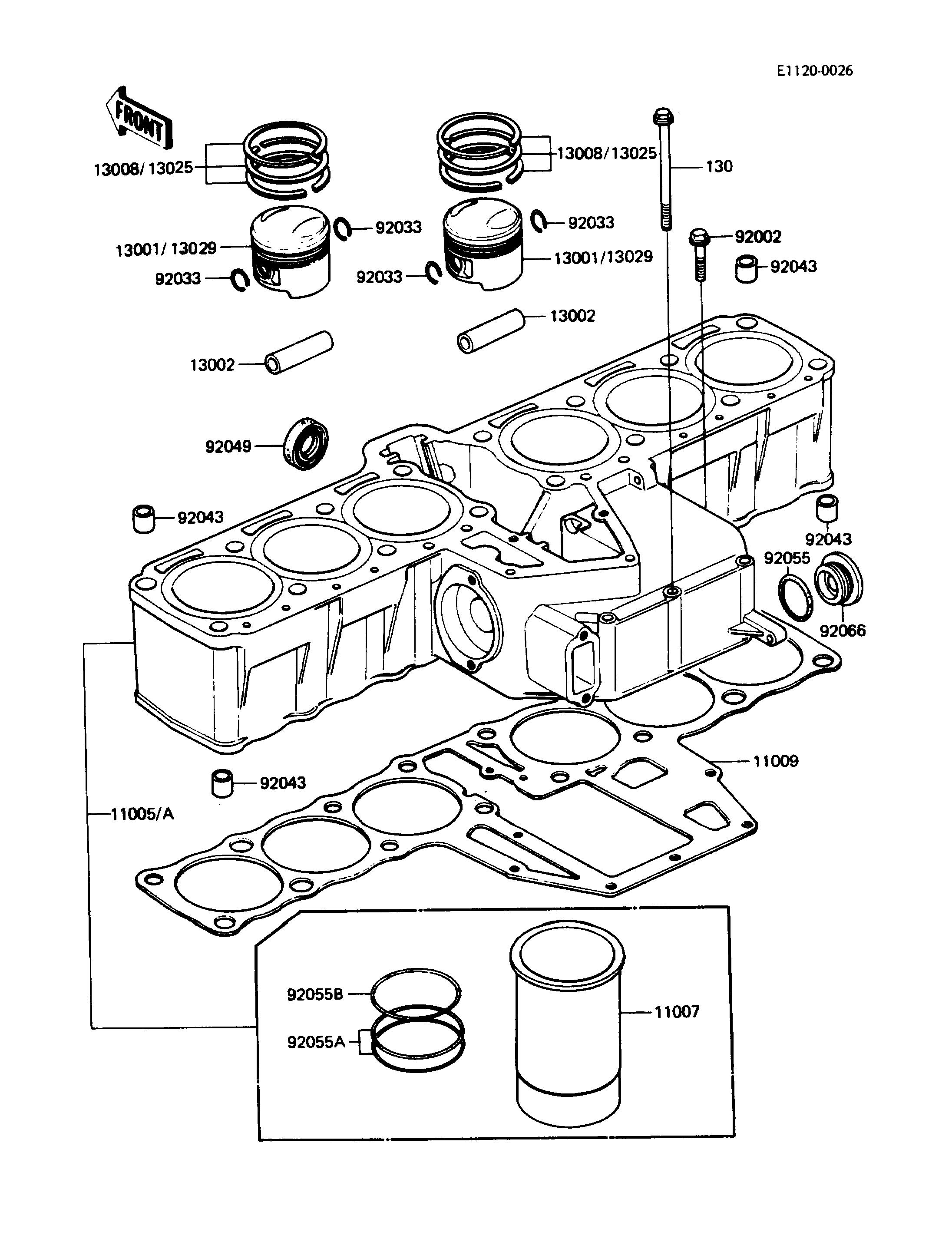

1987 Voyager - Cylinder/Piston(s)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CYLINDER-ENGINE 11005 11005-1403 1 US
CYLINDER-ENGINE 11005A 11005-1405 1 CA
LINER-CYLINDER 11007 11007-1006 6
GASKET,CYLINDER BASE 11009 11009-1101 1
PISTON-ENGINE,STD 13001 13001-1120 6
PIN-PISTON 13002 13002-032 6
RING-SET-PISTON,STD 13008 13008-5059 6
RING-SET-PISTON L,O/S 0.50 13025 13025-5025 6
PISTON-ENGINE L,O/S,0.50 13029 13029-1053 6
BOLT,6X28 92002 92002-1105 1
RING-SNAP 92033 92036-005 12
PIN,DOWEL,11X14X12.5 92043 92042-028 4
SEAL-OIL,TC17317 92049 92049-1028 1
RING-O 92055 92055-091 1
RING-O,67MM 92055A 92055-1032 12
RING-O,67.5MM 92055B 92055-1035 6
PLUG,RELEASE,30X8 92066 92067-024 1
BOLT-FLANGED 130 130Y0685 3
