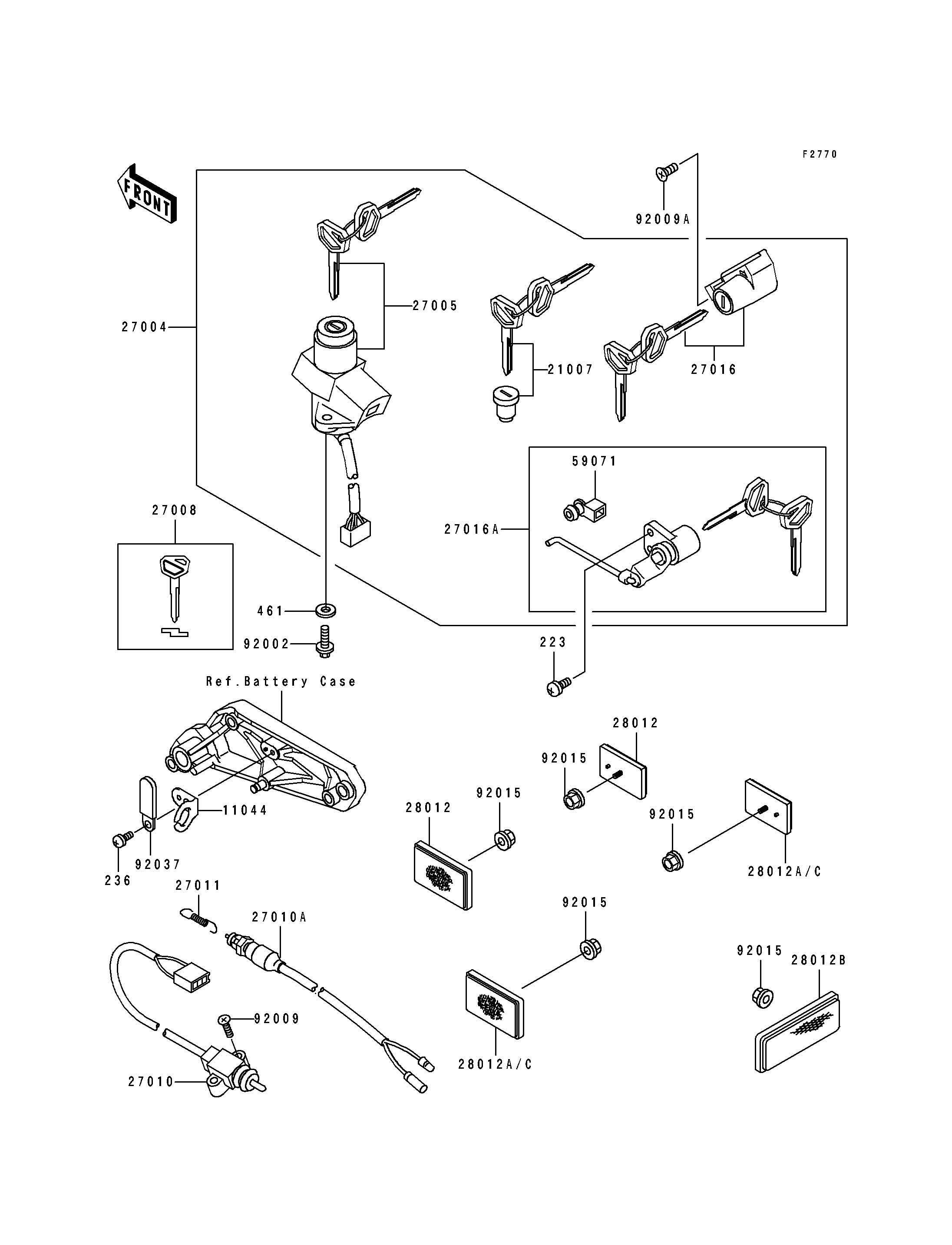

1996 Eliminator 600 - Ignition Switch/Locks/Reflectors
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,BRAKE SWITCH | 11044 | 11044-1873 | 1 | ||
| ROTOR,LOCK,TANK CAP | 21007 | 21007-5039 | 1 | ||
| SWITCH-ASSY | 27004 | 27004-5472 | 1 | ||
| SWITCH-ASSY-IGNITION | 27005 | 27005-5104 | 1 | ||
| KEY-LOCK,BLANK | 27008 | 27008-1173 | 1 | (OPTION) | |
| SWITCH,SIDE STAND | 27010 | 27010-1186 | 1 | ||
| SWITCH,BRAKE LAMP | 27010A | 27010-1337 | 1 | ||
| SPRING | 27011 | 27011-020 | 1 | ||
| LOCK-ASSY,HELMET | 27016 | 27016-5211 | 2 | ||
| LOCK-ASSY,SEAT | 27016A | 27016-5220 | 1 | ||
| REFLECTOR-REFLEX,FR | 28012 | 28012-1009 | 2 | ||
| REFLECTOR-REFLEX,RR | 28012A | 28012-1054 | 2 | ||
| REFLECTOR-REFLEX | 28012B | 28012-1077 | 1 | ||
| JOINT | 59071 | 59071-1103 | 2 | ||
| BOLT,TORX,6X16 | 92002 | 92002-1333 | 2 | ||
| SCREW,5X20 | 92009 | 92009-1359 | 2 | ||
| SCREW,5X12 | 92009A | 92009-1401 | 2 | ||
| NUT,FLANGED,5MM | 92015 | 92015-1259 | 5 | ||
| CLAMP,WIRING HARNESS | 92037 | 92037-1539 | 1 | ||
| SCREW-PAN-WS-CROS | 223 | 223B0510 | 2 | ||
| SCREW-PAN-WSP-CROS | 236 | 236B0514 | 1 | ||
| WASHER-SPRING | 461 | 461L0600 | 2 |
| BRACKET,BRAKE SWITCH | |
| REF # | 11044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROTOR,LOCK,TANK CAP | |
| REF # | 21007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH-ASSY | |
| REF # | 27004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH-ASSY-IGNITION | |
| REF # | 27005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KEY-LOCK,BLANK | |
| REF # | 27008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | (OPTION) |
| SWITCH,SIDE STAND | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,BRAKE LAMP | |
| REF # | 27010A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 27011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LOCK-ASSY,HELMET | |
| REF # | 27016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LOCK-ASSY,SEAT | |
| REF # | 27016A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| REFLECTOR-REFLEX,FR | |
| REF # | 28012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| REFLECTOR-REFLEX,RR | |
| REF # | 28012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| REFLECTOR-REFLEX | |
| REF # | 28012B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT | |
| REF # | 59071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,TORX,6X16 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X20 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X12 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| CLAMP,WIRING HARNESS | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WS-CROS | |
| REF # | 223 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WSP-CROS | |
| REF # | 236 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER-SPRING | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
