Parts Diagrams |

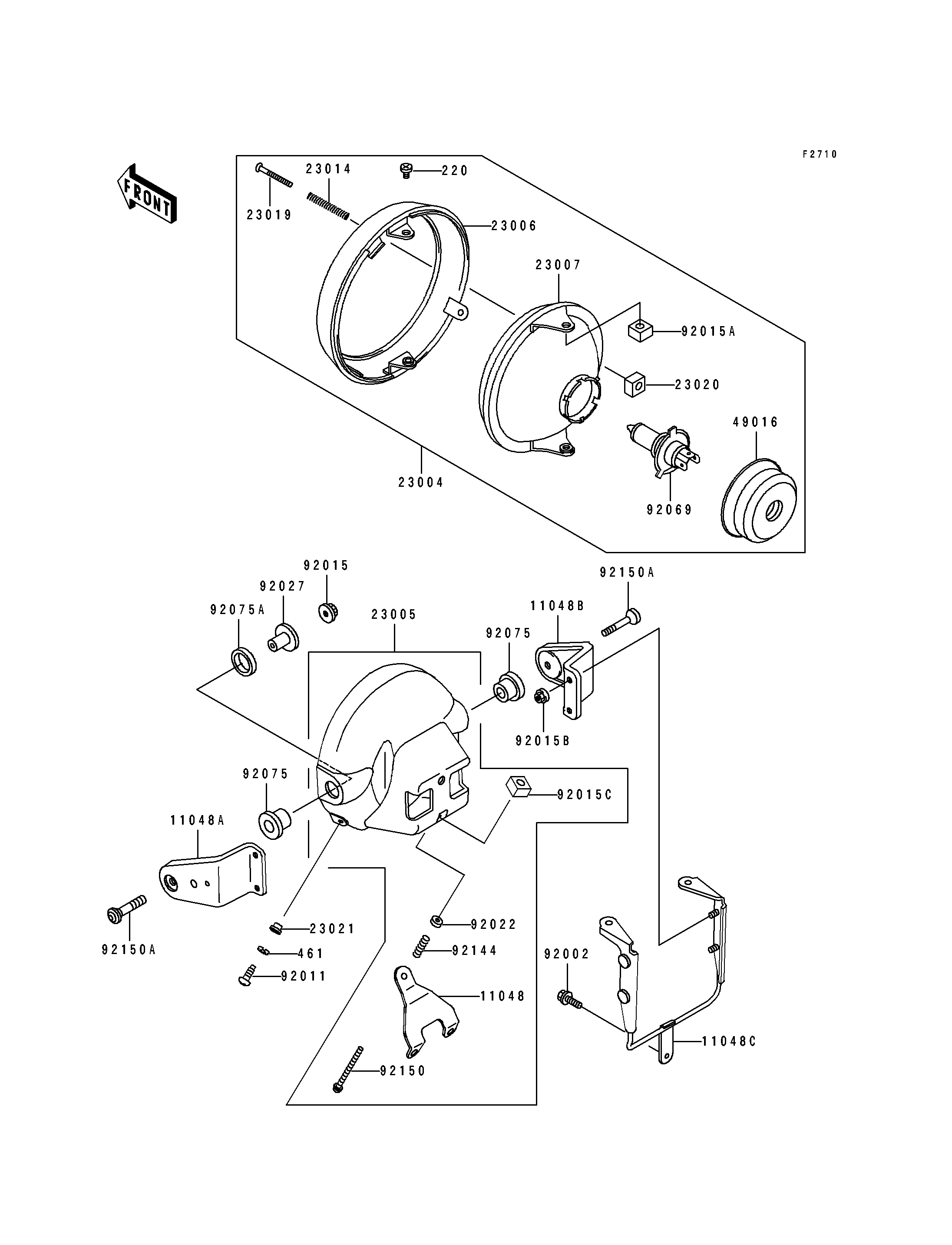

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,HEAD LAMP BODY | 11048 | 11048-1406 | 1 | ||
| BRACKET,HEAD LAMP,LH | 11048A | 11048-1407 | 1 | ||
| BRACKET,HEAD LAMP,RH | 11048B | 11048-1408 | 1 | ||
| BRACKET,HEAD LAMP | 11048C | 11048-1409 | 1 | ||
| LAMP-HEAD | 23004 | 23004-1275 | 1 | ||
| BODY-COMP-HEAD LAMP | 23005 | 23005-1144 | 1 | ||
| RIM-LAMP,CR PLATED | 23006 | 23006-1020 | 1 | ||
| LENS-COMP,HEAD LAMP | 23007 | 23007-1224 | 1 | ||
| SPRING,FOCUS ADJUSTING | 23014 | 23014-005 | 1 | ||
| SCREW,FOCUS ADJUSTING | 23019 | 23019-021 | 1 | ||
| NUT,4MM,FOCUS ADJUST | 23020 | 23020-018 | 1 | ||
| WASHER | 23021 | 23021-010 | 2 | ||
| COVER-SEAL,HEAD LAMP | 49016 | 49016-1046 | 1 | ||
| BOLT | 92002 | 92002-1626 | 3 | ||
| SCREW,5MM | 92011 | 92011-024 | 2 | ||
| NUT,FLANGED,8MM | 92015 | 92015-1014 | 2 | ||
| NUT,5MM | 92015A | 92015-1157 | 2 | ||
| NUT,CAP,6MM,BLACK | 92015B | 92015-1170 | 4 | ||
| NUT,5MM,FOCUS ADJUST | 92015C | 92015-1799 | 1 | ||
| WASHER,5.2X13X1 | 92022 | 92022-1380 | 1 | ||
| COLLAR,L=20 | 92027 | 92027-1131 | 2 | ||
| BULB,12V 60/55W,H4 | 92069 | 92069-1002 | 1 | ||
| DAMPER,HEAD LAMP FITTING | 92075 | 92075-1109 | 2 | ||
| DAMPER,HEAD LAMP FITTING | 92075A | 92075-1110 | 2 | ||
| SPRING | 92144 | 92144-1417 | 1 | ||
| BOLT,ADJUST,5X45 | 92150 | 92150-1590 | 1 | ||
| BOLT,SOCKET,8X40 | 92150A | 92150-1735 | 2 | ||
| SCREW-PAN-CROS | 220 | 220D0510 | 2 | ||
| WASHER-SPRING,5MM | 461 | 461F0500 | 2 |
| BRACKET,HEAD LAMP BODY | |
| REF # | 11048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,HEAD LAMP,LH | |
| REF # | 11048A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,HEAD LAMP,RH | |
| REF # | 11048B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,HEAD LAMP | |
| REF # | 11048C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LAMP-HEAD | |
| REF # | 23004 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY-COMP-HEAD LAMP | |
| REF # | 23005 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM-LAMP,CR PLATED | |
| REF # | 23006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS-COMP,HEAD LAMP | |
| REF # | 23007 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,FOCUS ADJUSTING | |
| REF # | 23014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,FOCUS ADJUSTING | |
| REF # | 23019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,4MM,FOCUS ADJUST | |
| REF # | 23020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 23021 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL,HEAD LAMP | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW,5MM | |
| REF # | 92011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,FLANGED,8MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,6MM,BLACK | |
| REF # | 92015B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM,FOCUS ADJUST | |
| REF # | 92015C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,5.2X13X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=20 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 60/55W,H4 | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,HEAD LAMP FITTING | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,HEAD LAMP FITTING | |
| REF # | 92075A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,ADJUST,5X45 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X40 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-SPRING,5MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
