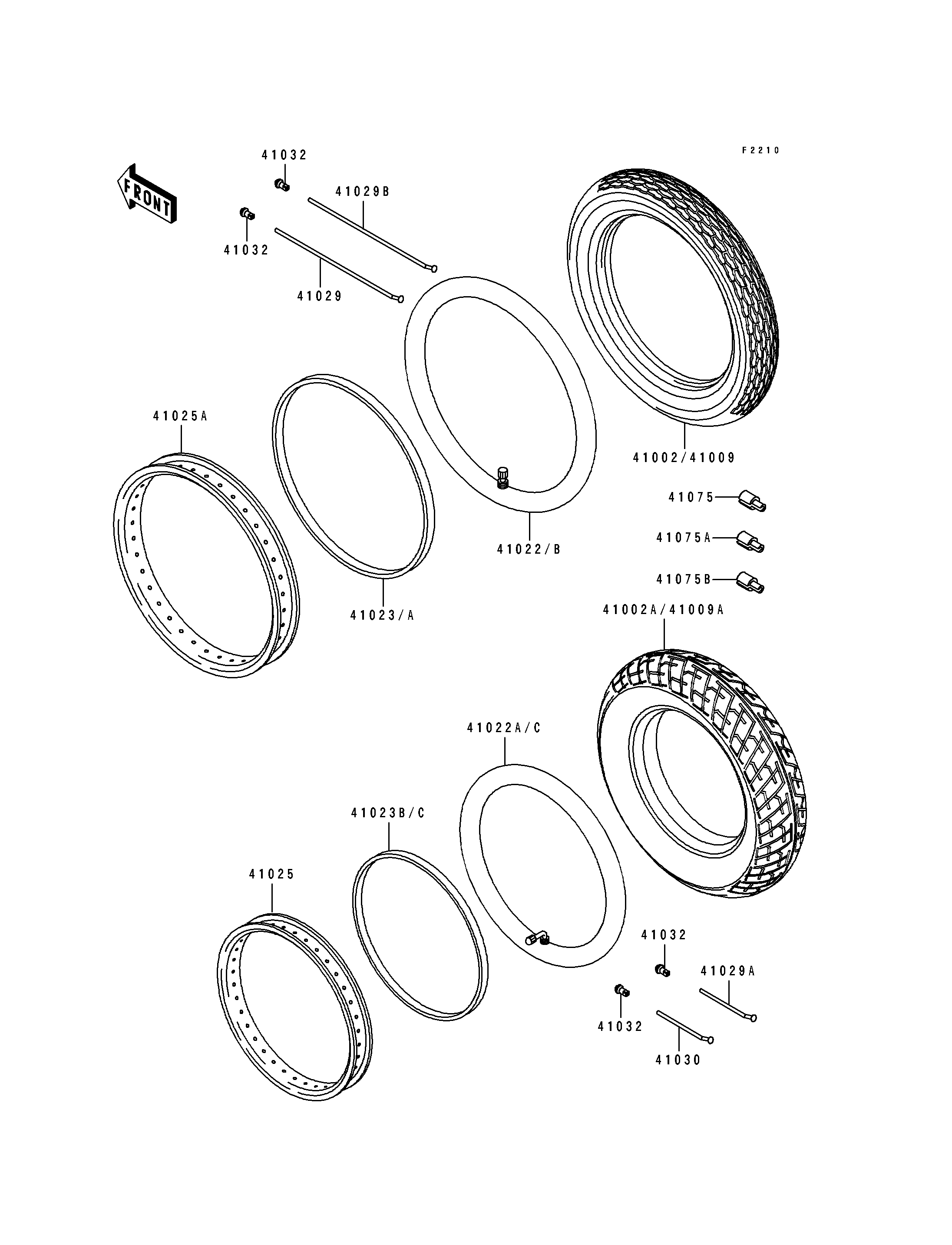

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE,FR,100/90-18 56H,F17(D) | 41002 | 41002-1691 | 1 | ||
| TIRE,RR,150/80-15M/C 70H,K255 | 41002A | 41002-1737 | 1 | ||
| TIRE,FR,100/90-18 56H,L303(BS) | 41009 | 41009-1097 | 1 | ||
| TIRE,RR,150/80-15 70H,G546(BS) | 41009A | 41009-1098 | 1 | ||
| TUBE-TIRE,100/90-18(D) | 41022 | 41022-1131 | 1 | ||
| TUBE-TIRE,150/80-15(D) | 41022A | 41022-1132 | 1 | ||
| TUBE-TIRE,100/90-18(BS) | 41022B | 41022-1174 | 1 | ||
| TUBE-TIRE,150/80-15(BS) | 41022C | 41022-1175 | 1 | ||
| BAND-RIM,X-18(BS) | 41023 | 41023-1010 | 1 | ||
| BAND-RIM,100/90-18(D) | 41023A | 41023-1076 | 1 | ||
| BAND-RIM,150/80-15(D) | 41023B | 41023-1083 | 1 | ||
| BAND-RIM,140/90-15(BS) | 41023C | 41023-1096 | 1 | ||
| RIM,RR,3.00X15 | 41025 | 41025-1232 | 1 | ||
| RIM,FR,2.15X18 | 41025A | 41025-1283 | 1 | ||
| SPOKE-INNER,FR,LH,190MMX170D | 41029 | 41029-1229 | 18 | ||
| SPOKE-INNER,RR,73.5MMX109D | 41029A | 41029-1230 | 24 | ||
| SPOKE-INNER,FR,RH,173.5MMX170D | 41029B | 41029-1231 | 18 | ||
| SPOKE-OUTER,RR,73.5MMX65D | 41030 | 41030-1129 | 24 | ||
| NIPPLE-SPOKE | 41032 | 41032-1073 | 84 | ||
| BALANCER-WHEEL,10G | 41075 | 41075-1007 | AR | ||
| BALANCER-WHEEL,20G | 41075A | 41075-1008 | AR | ||
| BALANCER-WHEEL,30G | 41075B | 41075-1009 | AR |
| TIRE,FR,100/90-18 56H,F17(D) | |
| REF # | 41002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE,RR,150/80-15M/C 70H,K255 | |
| REF # | 41002A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE,FR,100/90-18 56H,L303(BS) | |
| REF # | 41009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TIRE,RR,150/80-15 70H,G546(BS) | |
| REF # | 41009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,100/90-18(D) | |
| REF # | 41022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,150/80-15(D) | |
| REF # | 41022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,100/90-18(BS) | |
| REF # | 41022B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE-TIRE,150/80-15(BS) | |
| REF # | 41022C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM,X-18(BS) | |
| REF # | 41023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM,100/90-18(D) | |
| REF # | 41023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM,150/80-15(D) | |
| REF # | 41023B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND-RIM,140/90-15(BS) | |
| REF # | 41023C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,RR,3.00X15 | |
| REF # | 41025 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,FR,2.15X18 | |
| REF # | 41025A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,FR,LH,190MMX170D | |
| REF # | 41029 |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,RR,73.5MMX109D | |
| REF # | 41029A |
|---|---|
| PART NUMBER | |
| QUANTITY | 24 |
| DESTINATION | |
| REMARKS | |
| SPOKE-INNER,FR,RH,173.5MMX170D | |
| REF # | 41029B |
|---|---|
| PART NUMBER | |
| QUANTITY | 18 |
| DESTINATION | |
| REMARKS | |
| SPOKE-OUTER,RR,73.5MMX65D | |
| REF # | 41030 |
|---|---|
| PART NUMBER | |
| QUANTITY | 24 |
| DESTINATION | |
| REMARKS | |
| NIPPLE-SPOKE | |
| REF # | 41032 |
|---|---|
| PART NUMBER | |
| QUANTITY | 84 |
| DESTINATION | |
| REMARKS | |
| BALANCER-WHEEL,10G | |
| REF # | 41075 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BALANCER-WHEEL,20G | |
| REF # | 41075A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
| BALANCER-WHEEL,30G | |
| REF # | 41075B |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | |
