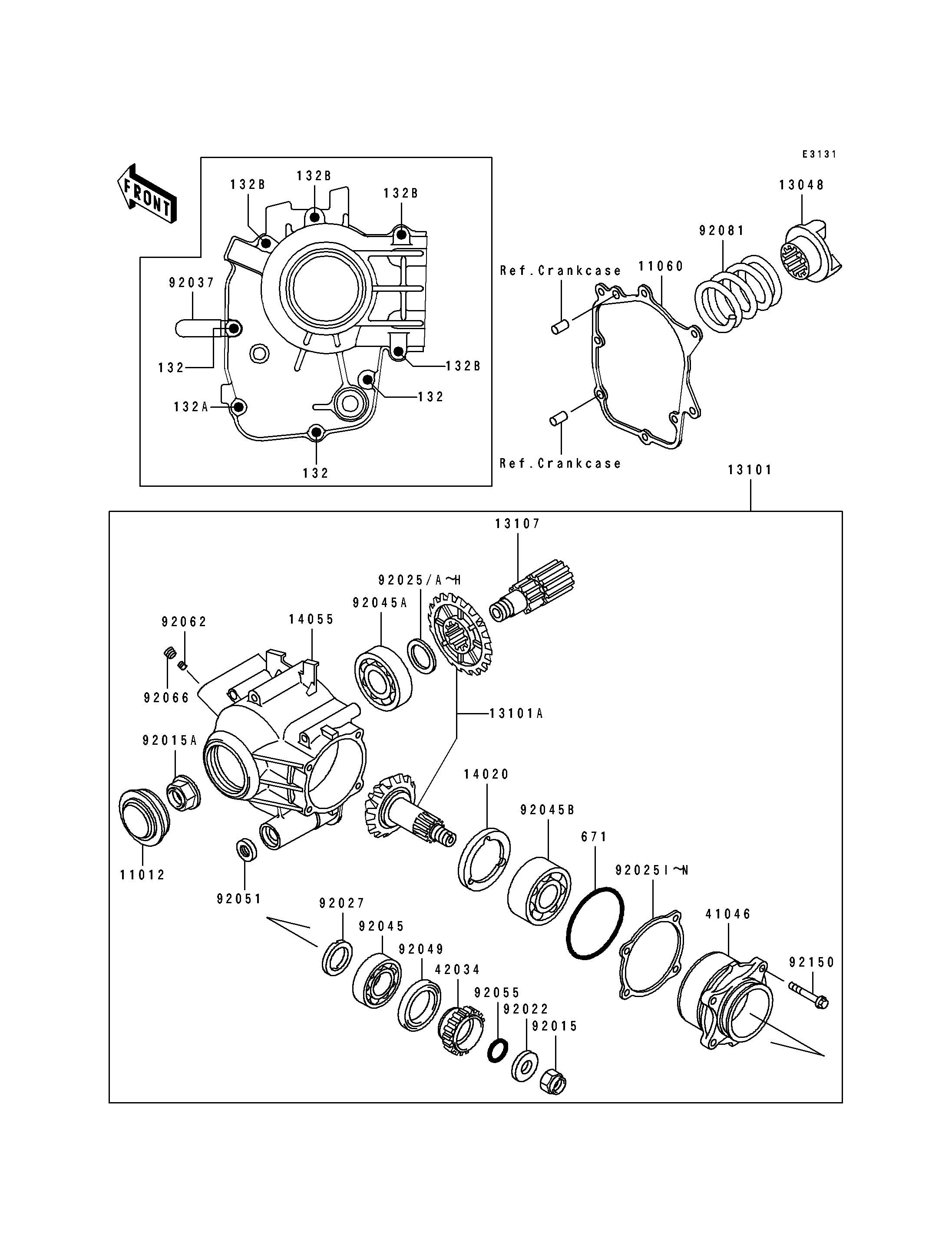

1997 Eliminator 600 - Front Bevel Gear

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,FRONT BEVEL 11012 11012-1672 1
GASKET,BEVEL GEAR CASE,FR 11060 11060-1152 1
CAM-DAMPER 13048 13048-1068 1
GEAR-ASSY,FRONT BEVEL 13101 13101-1229 1
GEAR-ASSY,FRONT BEVEL 13101A 13101-5060 1
SHAFT,BEVEL GEAR 13107 13107-1178 1
RETAINER 14020 14020-1065 1
CASE-GEAR,FRONT BEVEL 14055 14055-1118 1
HOUSING-BEARING,FRONT BEVEL 41046 41046-1096 1
COUPLING,FR DRIVEN 42034 42034-1091 1
NUT,LOCK,14MM 92015 92015-1067 1
NUT 92015A 92015-1543 1
WASHER,14.1X31X5 92022 92022-1115 1
SHIM,25.3X36X0.15 92025 92025-1688 AR
SHIM,25.3X36X0.50 92025A 92025-1689 AR
SHIM,25.3X36X0.60 92025B 92025-1690 AR
SHIM,25.3X36X0.70 92025C 92025-1691 AR
SHIM,25.3X36X0.80 92025D 92025-1692 AR
SHIM,25.3X36X0.90 92025E 92025-1693 AR
SHIM,25.3X36X1.00 92025F 92025-1694 AR
SHIM,25.3X36X1.10 92025G 92025-1695 AR
SHIM,25.3X36X1.20 92025H 92025-1696 AR
SHIM,T=0.10 92025I 92025-1772 AR
SHIM,T=0.15 92025J 92025-1773 AR
SHIM,T=0.70 92025K 92025-1774 AR
SHIM,T=0.80 92025L 92025-1775 AR
SHIM,T=1.00 92025M 92025-1776 AR
SHIM,T=1.20 92025N 92025-1777 AR
COLLAR 92027 92027-1994 1
CLAMP,WIRING HARNESS 92037 92037-1539 1
BEARING-BALL,6205 92045 92045-1115 1
BEARING-BALL,TMB305 92045A 92045-1137 1
BEARING-BALL,5305SH2CD2 92045B 92045-1147 1
SEAL-OIL,TC35527 92049 92049-1038 1
SEAL-OIL,TB13225.5 92051 92051-005 1
RING-O,ID=18.64 92055 92055-1044 1
NOZZLE,6X8,BLACK 92062 92062-1079 1
PLUG,OIL LINE,1/8X7 92066 92066-1227 1
SPRING,CAM DAMPER 92081 92081-1981 1
BOLT,6X25 92150 92150-1777 4
BOLT-FLANGED-SMALL 132 132E0625 3
BOLT-FLANGED-SMALL 132A 132E0640 1
BOLT-FLANGED-SMALL 132B 132E0685 4
O RING,70MM 671 671B2570 1
