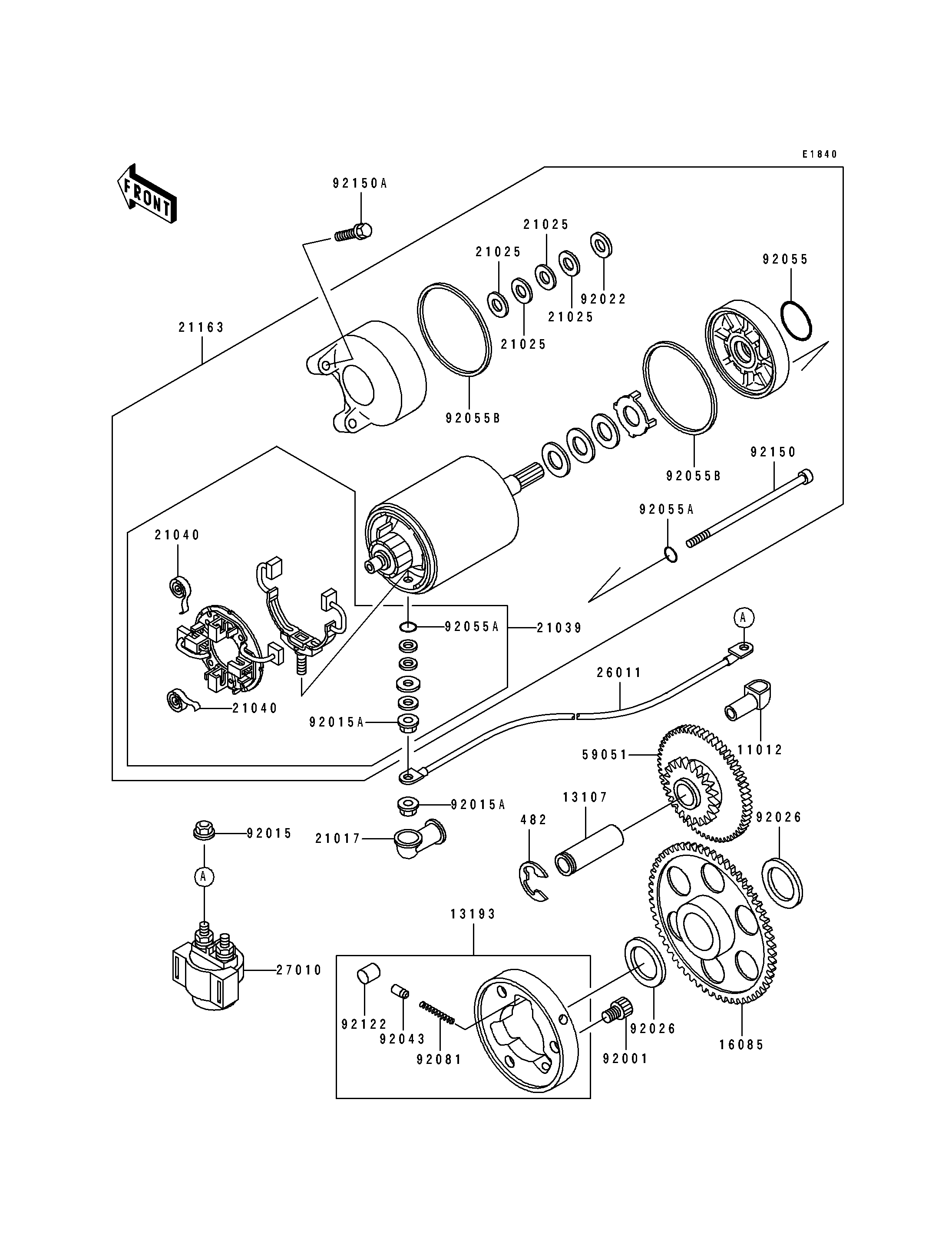

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,TERMINAL | 11012 | 11012-1354 | 1 | ||
| SHAFT,IDLE GEAR | 13107 | 13107-1144 | 1 | ||
| CLUTCH-ASSY-ONEWAY | 13193 | 13193-1002 | 1 | ||
| GEAR,ONEWAY CLUTCH | 16085 | 16085-1030 | 1 | ||
| GROMMET,STARTER TERMINAL | 21017 | 21017-017 | 1 | ||
| WASHER,9.1X18X0.2 | 21025 | 21025-011 | 4 | ||
| BRUSH,CARBON | 21039 | 21039-1062 | 1 | ||
| SPRING-BRUSH | 21040 | 21040-1057 | 2 | ||
| STARTER-ELECTRIC | 21163 | 21163-1230 | 1 | ||
| WIRE-LEAD,STARTER MOTOR | 26011 | 26011-1251 | 1 | ||
| SWITCH,STARTER | 27010 | 27010-1314 | 1 | ||
| GEAR-SPUR,IDLE | 59051 | 59051-1138 | 1 | ||
| BOLT,SOCKET,8X10 | 92001 | 92001-1424 | 3 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1193 | 2 | ||
| NUT,STARTER MOTOR | 92015A | 92015-1476 | 2 | ||
| WASHER,9.1X18X0.8 | 92022 | 92022-1132 | 1 | ||
| SPACER,25X36X3.2 | 92026 | 92026-1025 | 2 | ||
| PIN | 92043 | 92043-132 | 3 | ||
| RING-O | 92055 | 92055-1276 | 1 | ||
| RING-O,4.5X2.0 | 92055A | 92055-1370 | 3 | ||
| RING-O,STARTER MOTOR | 92055B | 92055-1381 | 2 | ||
| SPRING,COIL | 92081 | 92081-159 | 3 | ||
| ROLLER | 92122 | 92122-006 | 3 | ||
| BOLT | 92150 | 92150-1243 | 2 | ||
| BOLT,6X25 | 92150A | 92150-1779 | 2 | ||
| CIRCLIP-TYPE-E | 482 | 482J0300 | 1 |
