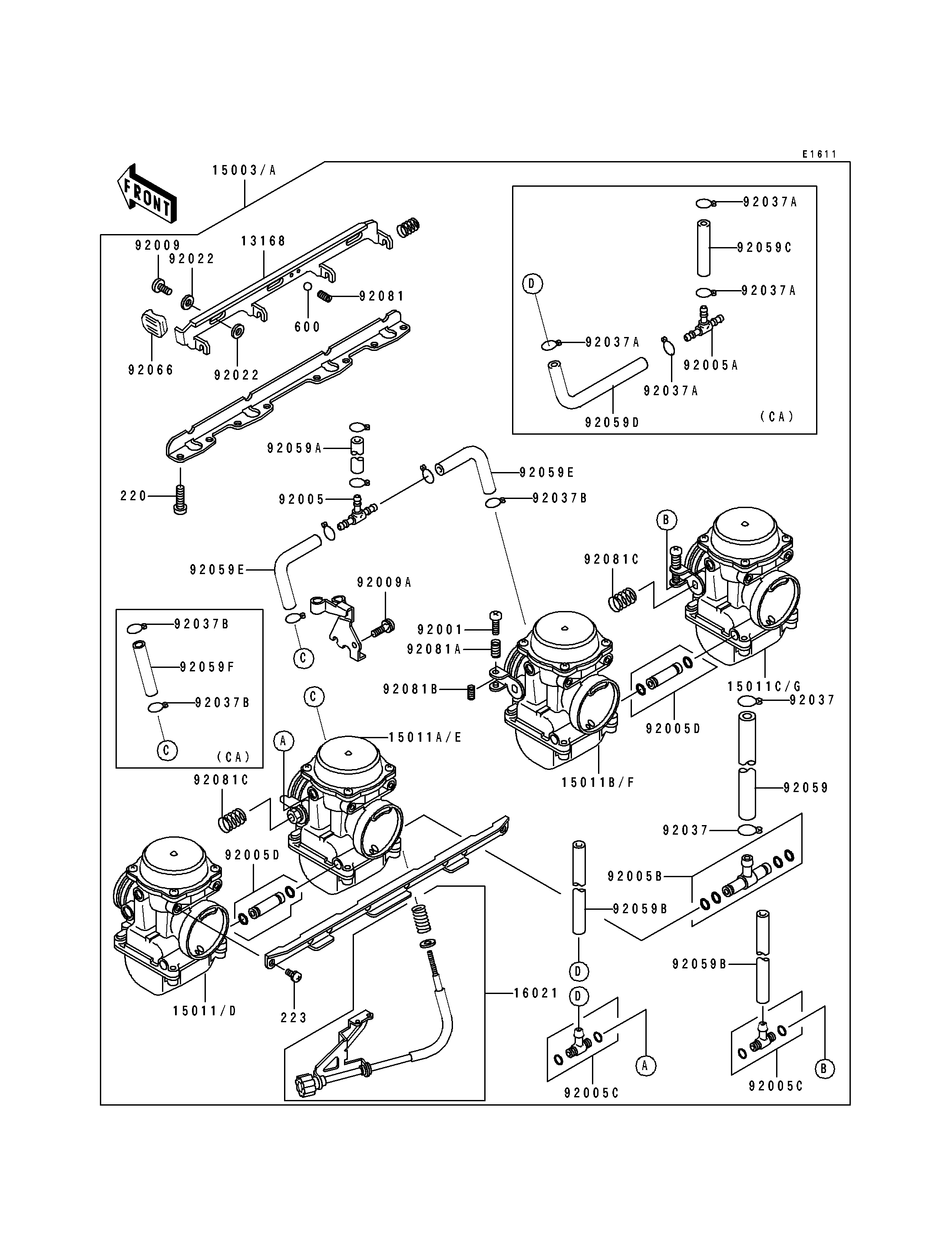

1997 Eliminator 600 - Carburetor

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER,STARTER 13168 13168-1434 1
CARBURETOR-ASSY 15003 15003-1205 1
CARBURETOR-ASSY 15003A 15003-1206 1
CARBURETOR,LH,OUTSIDE 15011 15011-1105 1
CARBURETOR,LH,INSIDE 15011A 15011-1106 1
CARBURETOR,RH,INSIDE 15011B 15011-1107 1
CARBURETOR,RH,OUTSIDE 15011C 15011-1108 1
CARBURETOR,LH,OUTSIDE 15011D 15011-1113 1
CARBURETOR,LH,INSIDE 15011E 15011-1114 1
CARBURETOR,RH,INSIDE 15011F 15011-1115 1
CARBURETOR,RH,OUTSIDE 15011G 15011-1116 1
SCREW-THROTTLE STOP 16021 16021-1179 1
BOLT,THROTTLE ADJUST 92001 92001-1998 3
FITTING,FUEL,T-TYPE 92005 92005-1112 1
FITTING,T-TYPE 92005A 92005-1119 1
FITTING 92005B 92005-1288 1
FITTING 92005C 92005-1306 2
FITTING 92005D 92005-1310 2
SCREW 92009 92009-1262 3
SCREW,5X10 92009A 92009-1365 1
WASHER,6.1X11X0.8,POLYACETAL 92022 92022-1199 6
CLAMP,FUEL TUBE 92037 92037-1075 2
CLAMP,TUBE 92037A 92037-1194 4
CLAMP,TUBE 92037B 92037-1477 2
CLAMP,TUBE 92037B 92037-1477 6
TUBE,FUEL,7.3X12.5X200 92059 92059-1029 1
TUBE,5X9X200 92059A 92059-1173 1
TUBE,6.5X9.5X290 92059B 92059-1376 2
TUBE,7X11X100 92059C 92059-1476 1
TUBE,7X11X260 92059D 92059-1613 1
TUBE,5X9X90 92059E 92059-1627 2
TUBE,5X9X120 92059F 92059-1721 1
PLUG,STARTER LEVER 92066 92066-1157 1
SPRING,SHAFT STOP 92081 92081-1619 1
SPRING,THROTTLE ADJUST UPP 92081A 92081-1620 3
SPRING,THROTTLE ADJUST LWR 92081B 92081-1621 3
SPRING,THROTTLE ADJUST CNT 92081C 92081-1622 2
SCREW-PAN-CROS,6X16 220 220B0616 8
SCREW-PAN-WS-CROS 223 223C0510 8
BALL-STEEL,3/16" 600 600A0600 1
