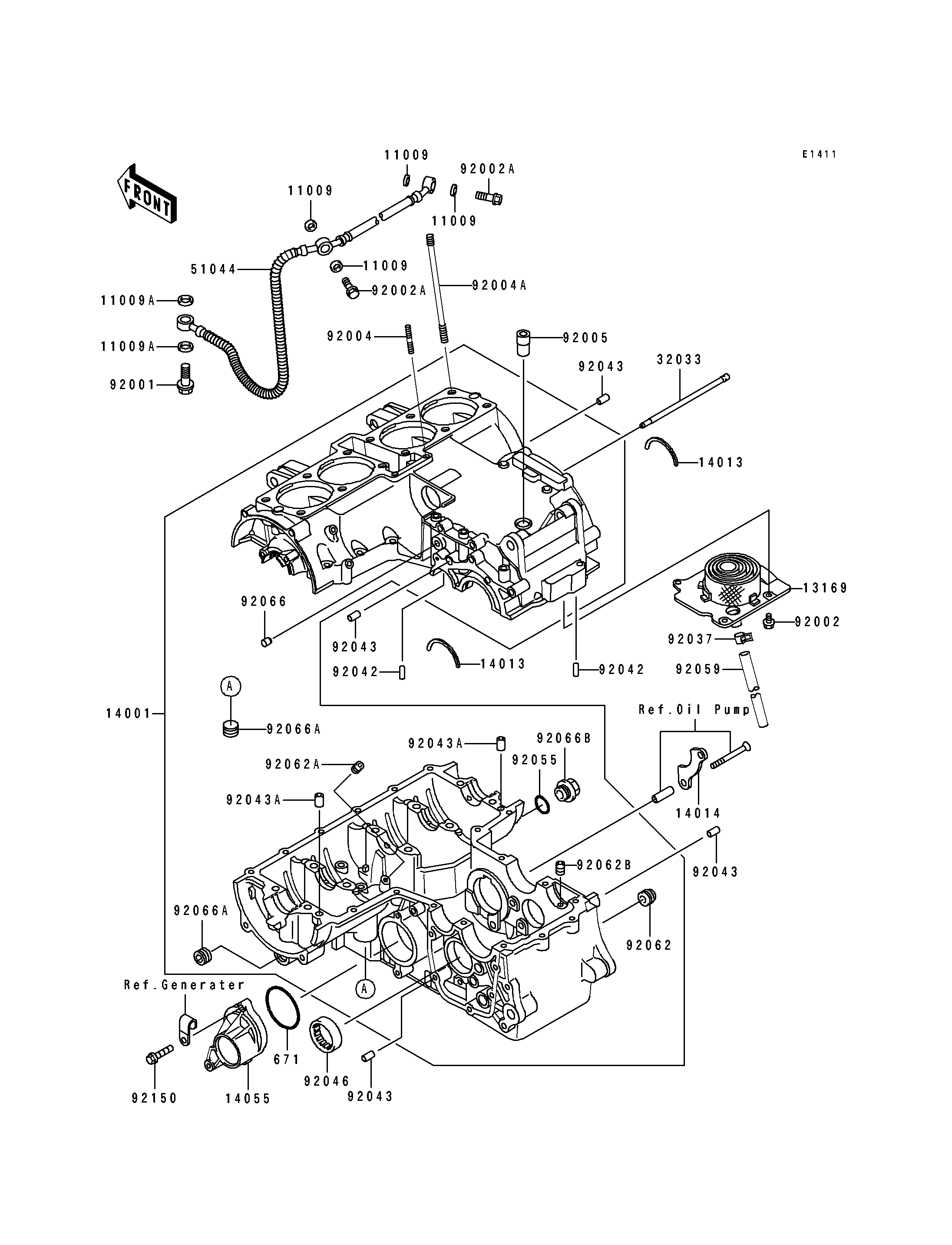

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,OIL PIPE,8.2X14X1.0 | 11009 | 11009-1344 | 4 | ||
| GASKET,12.4X17X1.5 | 11009A | 11009-1376 | 2 | ||
| PLATE,BREATHER | 13169 | 13169-1966 | 1 | ||
| SET-CRANKCASE | 14001 | 14001-5327 | 1 | ||
| RING-POSITION | 14013 | 14013-004 | 2 | ||
| PLATE-POSITION | 14014 | 14014-1006 | 1 | ||
| CASE-GEAR | 14055 | 14055-1116 | 1 | ||
| PIPE,OIL | 32033 | 32033-1858 | 1 | ||
| TUBE-ASSY,OIL | 51044 | 51044-1168 | 1 | ||
| BOLT,BANJO,12X23 | 92001 | 92001-1871 | 1 | ||
| BOLT,6X10 | 92002 | 92002-1449 | 4 | ||
| BOLT,BANJO,8X24 | 92002A | 92002-1858 | 2 | ||
| STUD,6X22 | 92004 | 92004-059 | 2 | ||
| STUD,8X128.5 | 92004A | 92004-1161 | 12 | ||
| FITTING,BREATHER | 92005 | 92005-1129 | 1 | ||
| CLAMP | 92037 | 92037-1181 | 1 | ||
| PIN,DOWEL,6X16 | 92042 | 92042-016 | 2 | ||
| PIN,6.2X8X14 | 92043 | 92043-1263 | 4 | ||
| PIN,8.2X10X14 | 92043A | 92043-1264 | 2 | ||
| BEARING-NEEDLE,37BTM4312 | 92046 | 92046-051 | 1 | ||
| RING-O | 92055 | 92055-1146 | 1 | ||
| TUBE | 92059 | 92059-1544 | 1 | ||
| NOZZLE | 92062 | 92062-014 | 1 | ||
| NOZZLE,6X8,BLACK | 92062A | 92062-1079 | 1 | ||
| NOZZLE,6X8,SILVER | 92062B | 92062-1081 | 1 | ||
| PLUG,OIL LINE,7.2X8 | 92066 | 92066-1012 | 1 | ||
| PLUG | 92066A | 92066-1252 | 2 | ||
| PLUG | 92066B | 92066-1394 | 1 | ||
| BOLT,6X25 | 92150 | 92150-1779 | 2 | ||
| O RING,55MM | 671 | 671B2555 | 1 |
