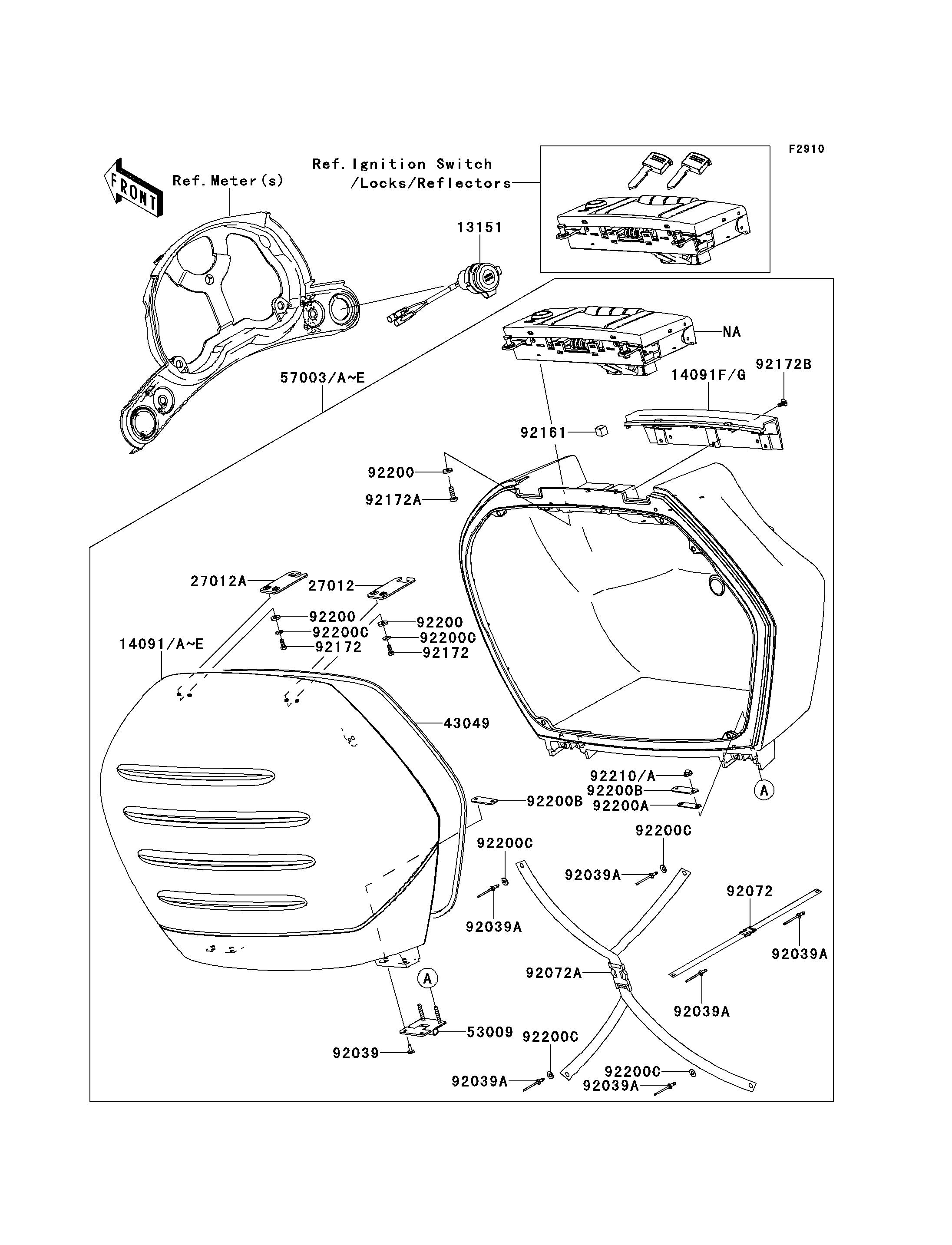

2009 Concours 14 ABS - Accessory

DOWNLOAD PDF
SELECT A NEW PART
13151
14091
14091B
14091C
14091E
14091G
27012
27012A
43049
53009
57003A
57003B
57003D
57003E
92039
92039A
92039A
92039A
92039A
92039A
92039A
92072
92072A
92161
92172
92172
92172A
92172B
92200
92200
92200
92200A
92200B
92200B
92200C
92200C
92200C
92200C
92200C
92200C
92210A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH-COMP 13151 13151-0040 1
COVER,SIDE BAG,LH,M.D.BLACK 14091 14091-0919-17K 1
COVER,SIDE BAG,LH,C.D.RED 14091B 14091-0919-25T 1
COVER,SIDE BAG,RH,M.D.BLACK 14091C 14091-0920-17K 1
COVER,SIDE BAG,RH,C.D.RED 14091E 14091-0920-25T 1
COVER,SIDE BAG,LID 14091G 14091-1688 2
HOOK 27012 27012-0110 2
HOOK 27012A 27012-0111 2
PACKING 43049 43049-0010 2
HINGE 53009 53009-0020 4
BAG-ASSY,LH,BODY BLK+COVER BLK 57003A 57003-0034-18P 1
BAG-ASSY,LH,BODY BLK+COVER RED 57003B 57003-0034-26A 1
BAG-ASSY,RH,BODY BLK+COVER BLK 57003D 57003-0035-18P 1
BAG-ASSY,RH,BODY BLK+COVER RED 57003E 57003-0035-26A 1
RIVET 92039 92039-0063 8
RIVET 92039A 92039-0072 12
BAND 92072 92072-0082 2
BAND 92072A 92072-1368 2
DAMPER 92161 92161-0573 2
SCREW,4X12 92172 92172-0303 8
SCREW,5X15 92172A 92172-0304 16
SCREW,4X8 92172B 92172-0306 6
WASHER,5MM 92200 92200-0373 24
WASHER 92200A 92200-0374 4
WASHER 92200B 92200-0375 8
WASHER 92200C 92200-0416 16
NUT,CAP,4MM 92210A 92210-0434 8
