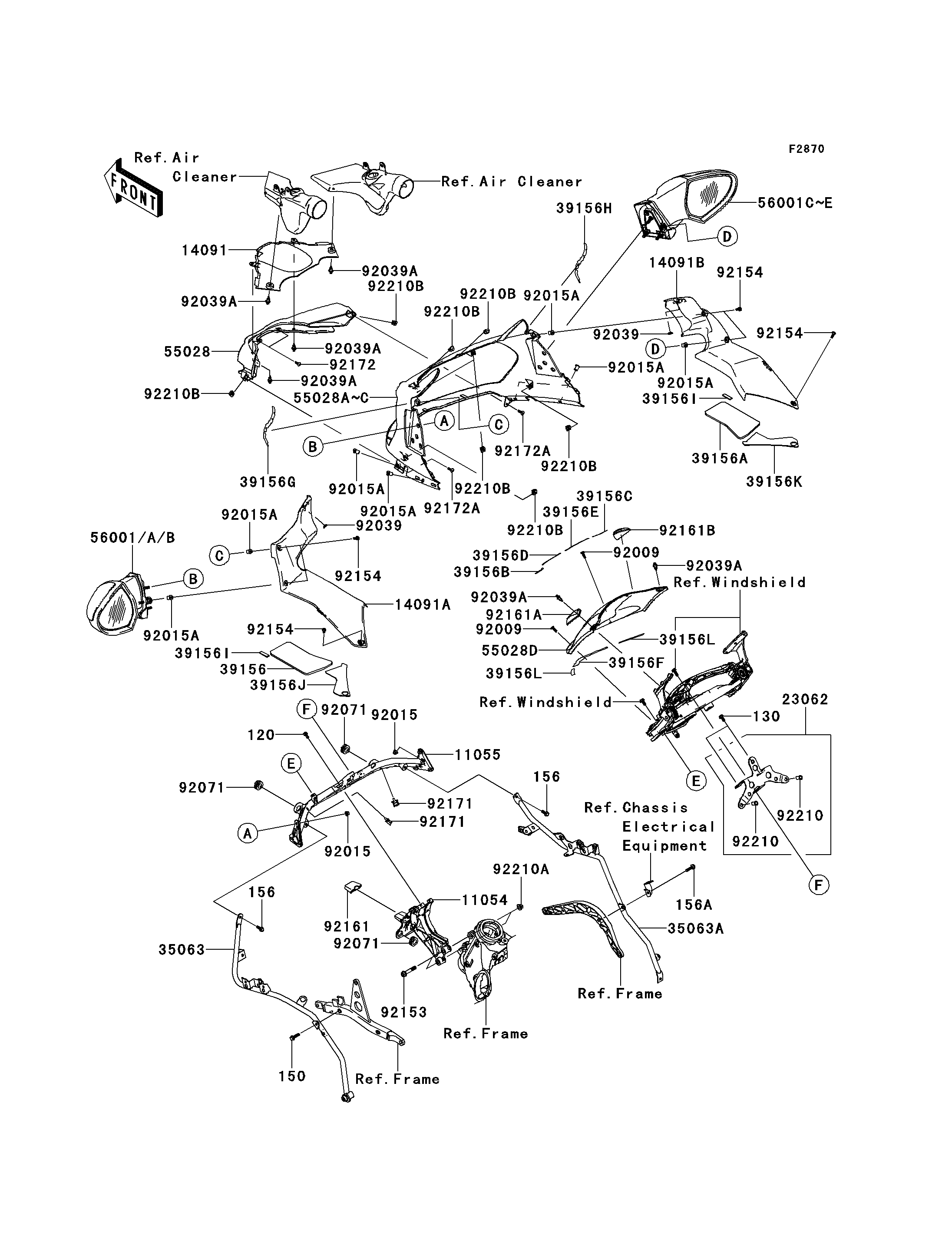

2009 Concours 14 ABS - Cowling(Upper)

DOWNLOAD PDF
SELECT A NEW PART
11054
11054
11055
11055
14091
14091
14091A
14091A
14091B
14091B
23062
23062
35063
35063
35063A
35063A
39156
39156
39156A
39156A
39156B
39156B
39156C
39156C
39156D
39156D
39156E
39156E
39156F
39156F
39156G
39156G
39156H
39156H
39156I
39156I
39156I
39156I
39156J
39156J
39156K
39156K
39156L
39156L
39156L
39156L
55028
55028
55028A
55028A
55028C
55028C
55028D
55028D
56001
56001
56001B
56001B
56001C
56001C
56001E
56001E
92009
92009
92009
92009
92015
92015
92015
92015
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92015A
92039
92039
92039
92039
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92039A
92071
92071
92071
92071
92071
92071
120
120
130
130
150
150
156
156
156
156
156A
156A
92153
92153
92154
92154
92154
92154
92154
92154
92154
92154
92161
92161
92161A
92161A
92161B
92161B
92171
92171
92171
92171
92172
92172
92172A
92172A
92172A
92172A
92210
92210
92210
92210
92210A
92210A
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
92210B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,COWLING 11054 11054-0741 1
BRACKET,MIRROR 11055 11055-0143 1
COVER,SHROUD,CNT 14091 14091-0859 1
COVER,INNER,LH 14091A 14091-0906 1
COVER,INNER,RH 14091B 14091-0907 1
BRACKET-COMP,METER 23062 23062-0036 1
STAY,COWLING,LH 35063 35063-0471 1
STAY,COWLING,RH 35063A 35063-0472 1
PAD,INNER COWLING,LH 39156 39156-0293 1
PAD,INNER COWLING,RH 39156A 39156-0295 1
PAD,UPP COWLING,CNT,LH 39156B 39156-0378 1
PAD,UPP COWLING,CNT,RH 39156C 39156-0379 1
PAD,UPP COWLING,CNT,LH 39156D 39156-0380 1
PAD,UPP COWLING,CNT,RH 39156E 39156-0381 1
PAD,UPP COWLING,CNT 39156F 39156-0382 1
PAD,UPP COWLING,LH 39156G 39156-0384 1
PAD,UPP COWLING,RH 39156H 39156-0385 1
PAD,INNER COWLING 39156I 39156-0386 2
PAD,INNER COWLING,LH 39156J 39156-0387 1
PAD,INNER COWLING,RH 39156K 39156-0388 1
PAD,UPP COWLING,CNT 39156L 39156-0398 2
COWLING,INTAKE 55028 55028-0192 1
COWLING,UPP,M.D.BLACK 55028A 55028-0198-17K 1
COWLING,UPP,C.D.RED 55028C 55028-0198-25T 1
COWLING,UPP,CNT 55028D 55028-0210 1
MIRROR-ASSY,LH,M.D.BLACK 56001 56001-0113-17K 1
MIRROR-ASSY,LH,C.D.RED 56001B 56001-0113-25T 1
MIRROR-ASSY,RH,M.D.BLACK 56001C 56001-0114-17K 1
MIRROR-ASSY,RH,C.D.RED 56001E 56001-0114-25T 1
SCREW,5X16 92009 92009-1909 2
NUT,FLANGED,6MM 92015 92015-1367 6
NUT,WELL,5MM 92015A 92015-1757 8
RIVET 92039 92039-0048 2
RIVET 92039A 92039-0051 6
GROMMET 92071 92071-1131 4
BOLT-SOCKET,6X12 120 120CA0612 4
BOLT-FLANGED,6X12 130 130BA0612 2
BOLT-WS,6X22 150 150R0622 1
BOLT-WP,6X18 156 156R0618 2
BOLT-WP,6X25 156A 156R0625 1
BOLT,FLANGED,8X50 92153 92153-1877 2
BOLT,SOCKET,5X16 92154 92154-0209 6
DAMPER,HEAD LAMP 92161 92161-0412 1
DAMPER,UPP COWLING,CNT,LH 92161A 92161-0565 1
DAMPER,UPP COWLING,CNT,RH 92161B 92161-0566 1
CLAMP 92171 92171-1665 2
SCREW,TAPPING,5X14 92172 92172-0265 2
SCREW,5X16 92172A 92172-0322 2
NUT,POP,6MM,L=16.5 92210 92210-0324 2
NUT,CAP,8MM 92210A 92210-0325 2
NUT,5MM 92210B 92210-0351 8
