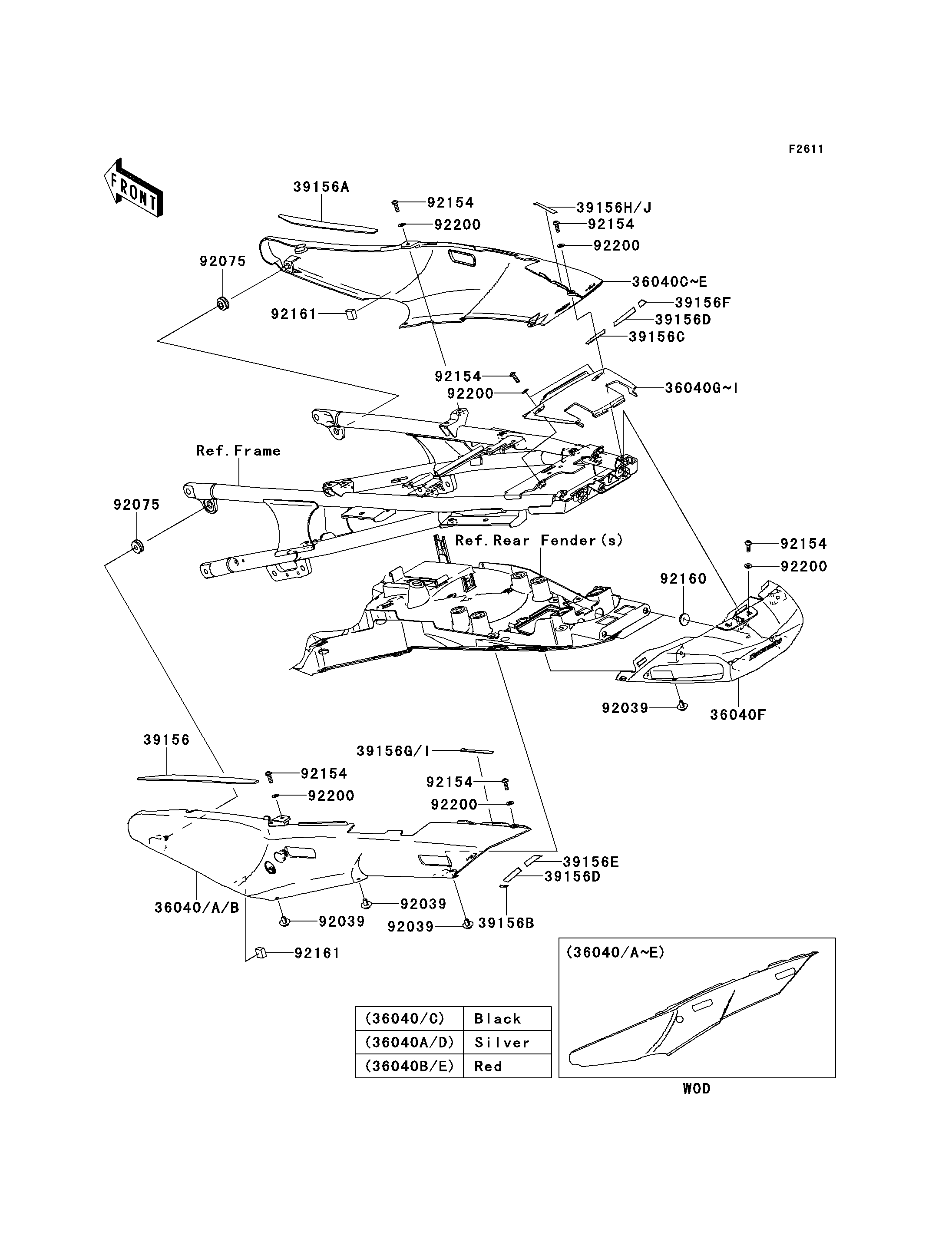

2009 Concours 14 ABS - Side Covers

DOWNLOAD PDF
SELECT A NEW PART
36040
36040B
36040C
36040E
36040F
36040G
36040I
39156
39156A
39156B
39156C
39156D
39156D
39156E
39156F
39156I
39156J
92039
92039
92039
92039
92075
92075
92154
92154
92154
92154
92154
92154
92160
92161
92161
92200
92200
92200
92200
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-TAIL,LH,M.D.BLACK 36040 36040-0055-17K 1
COVER-TAIL,LH,C.D.RED 36040B 36040-0055-25T 1
COVER-TAIL,RH,M.D.BLACK 36040C 36040-0056-17K 1
COVER-TAIL,RH,C.D.RED 36040E 36040-0056-25T 1
COVER-TAIL,RR 36040F 36040-0060 1
COVER-TAIL,CNT,M.D.BLACK 36040G 36040-0080-17K 1
COVER-TAIL,CNT,C.D.RED 36040I 36040-0080-25T 1
PAD,TAIL COVER,LH 39156 39156-0368 1
PAD,TAIL COVER,RH 39156A 39156-0369 1
PAD,TAIL COVER,LH 39156B 39156-0399 1
PAD,TAIL COVER,RH 39156C 39156-0400 1
PAD,TAIL COVER 39156D 39156-0401 2
PAD,TAIL COVER,LH 39156E 39156-0403 1
PAD,TAIL COVER,RH 39156F 39156-0404 1
PAD,TAIL COVER,LH 39156I 39156-0411 1
PAD,TAIL COVER,RH 39156J 39156-0412 1
RIVET 92039 92039-1256 8
DAMPER 92075 92075-1067 2
BOLT,SOCKET,5X16 92154 92154-0209 8
DAMPER 92160 92160-1613 2
DAMPER 92161 92161-0557 2
WASHER,NYLONE,5.3X11.5X0.5 92200 92200-0006 8
