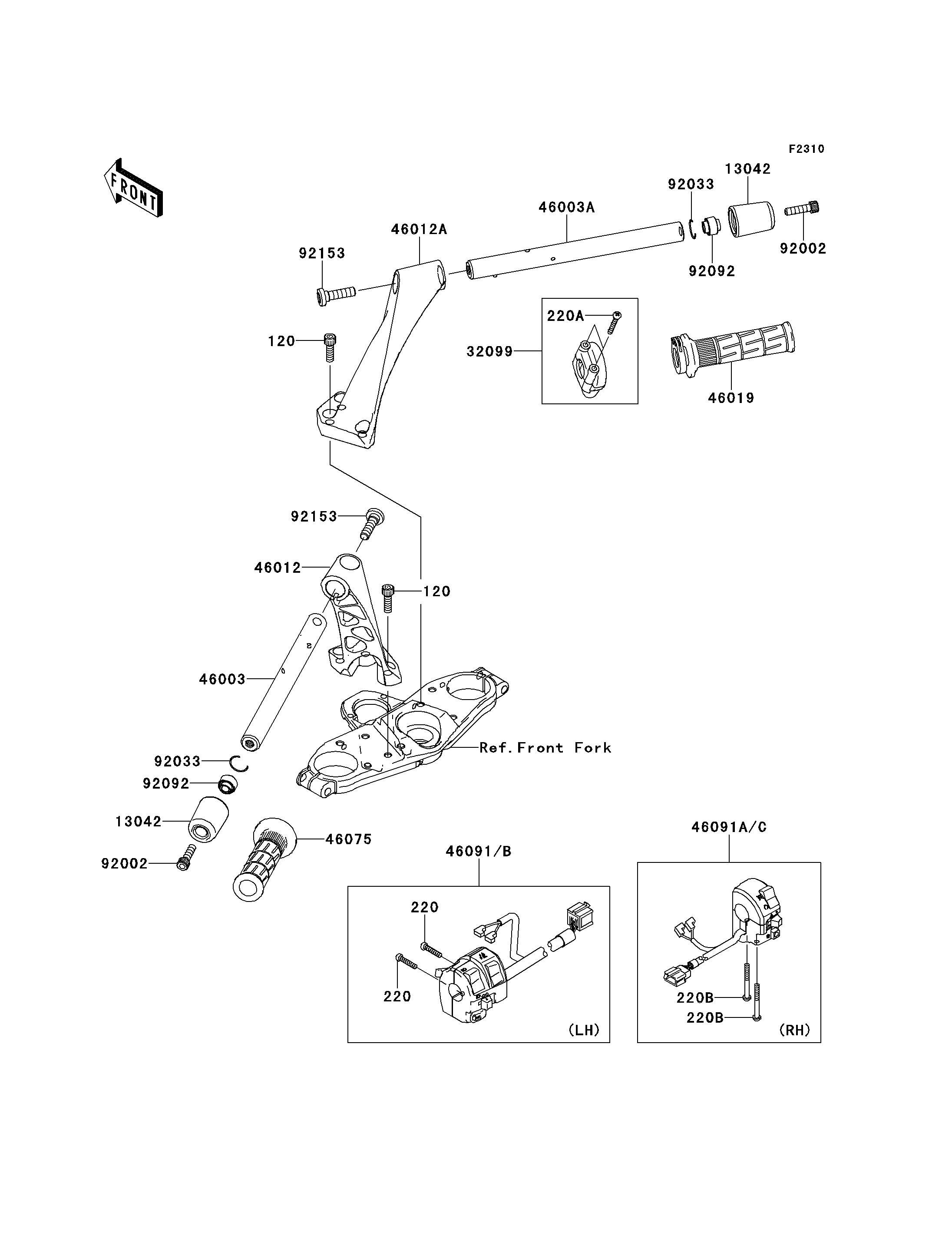

2009 Concours 14 ABS - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
120
120
220
220
220A
220B
220B
13042
13042
32099
46003
46003A
46012
46012A
46019
46075
46091B
46091C
92002
92002
92033
92033
92092
92092
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-SOCKET,8X25 120 120R0825 6
SCREW-PAN-CROS,5X25 220 220AB0525 2
SCREW-PAN-CROS,5X35 220A 220AB0535 2
SCREW-PAN-CROS,5X45 220B 220AB0545 2
WEIGHT,HANDLE 13042 13042-1006 2
CASE,THROTTLE 32099 32099-0027 1
HANDLE,LH 46003 46003-0142 1
HANDLE,RH 46003A 46003-0143 1
HOLDER-HANDLE,LH,P.SILVER 46012 46012-0053-458 1
HOLDER-HANDLE,RH,P.SILVER 46012A 46012-0054-458 1
GRIP-ASSY,THROTTLE 46019 46019-0001 1
GRIP,LH 46075 46075-1144 1
HOUSING-ASSY-CONTROL,LH 46091B 46091-0143 1
HOUSING-ASSY-CONTROL,RH 46091C 46091-0144 1
BOLT,SOCKET,8X30 92002 92002-1844 2
RING-SNAP,OD=22.2 92033 92033-1102 2
BUSHING-RUBBER,HANDLE 92092 92092-1018 2
BOLT,SOCKET,10X37 92153 92153-1440 2
