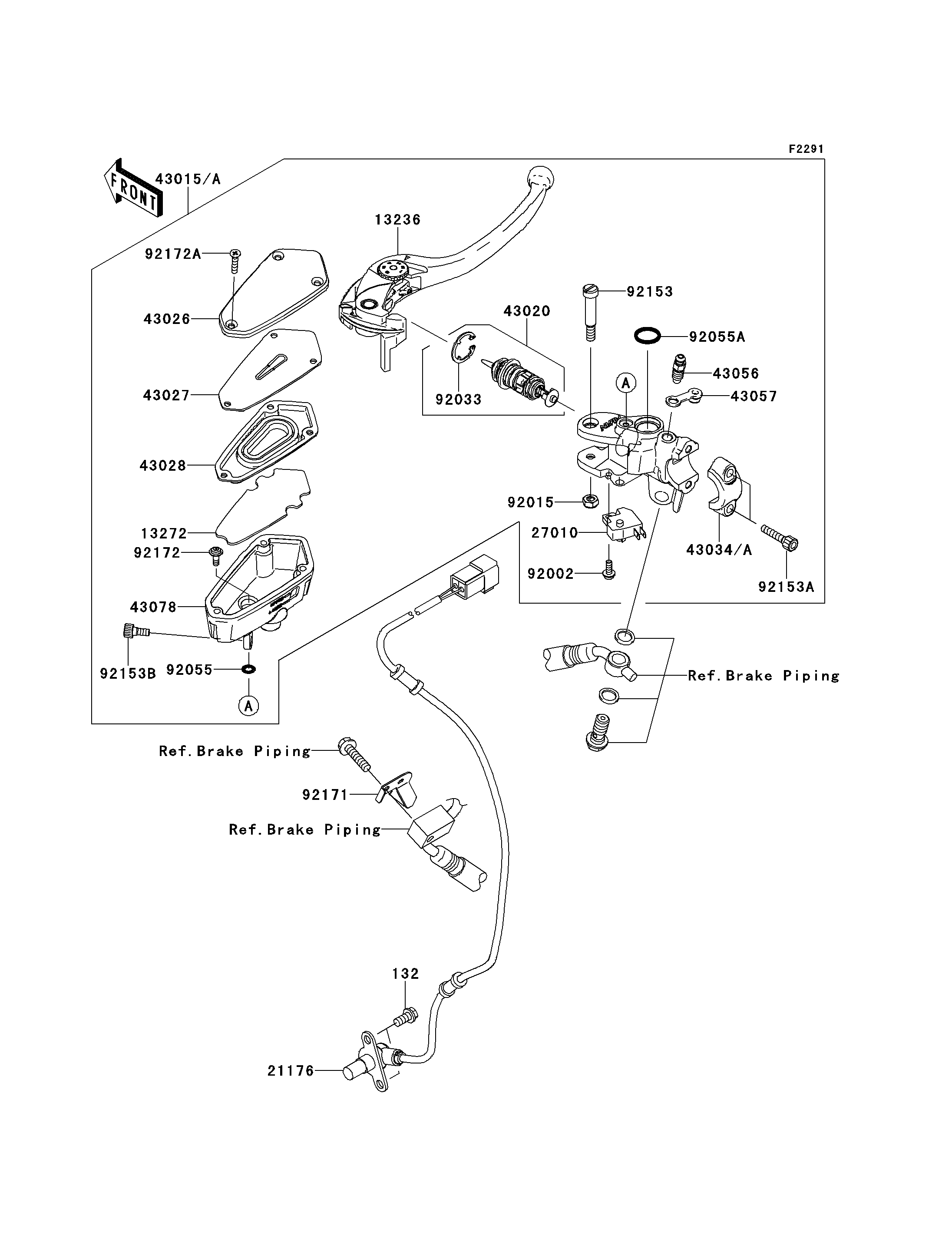

2009 Concours 14 ABS - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
132
13236
13272
21176
27010
43015
43015A
43020
43026
43027
43028
43034
43034A
43056
43057
43078
92002
92015
92033
92055
92055A
92153
92153A
92153B
92171
92172
92172A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED-SMALL,6X12 132 132BA0612 2
LEVER-COMP,FRONT BRAKE 13236 13236-0103 1
PLATE 13272 13272-0220 1
SENSOR,SPEED,FR 21176 21176-0075 1
SWITCH,BRAKE 27010 27010-0025 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0086 1 ( - JKBZGNA1 9A022218)
CYLINDER-ASSY-MASTER,FR 43015A 43015-0148 1 (JKBZGNA1 9A022219 - )
PISTON-COMP-BRAKE 43020 43020-0010 1
CAP-BRAKE 43026 43026-0011 1
PLATE-DIAPHRAGM 43027 43027-0003 1
DIAPHRAGM 43028 43028-0008 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-0056 1 (JKBZGNA1 9A022219 - )
HOLDER-BRAKE,MASTER CYLINDER 43034A 43034-1016 1 ( - JKBZGNA1 9A022218)
BREATHER-BRAKE 43056 43056-1056 1
CAP-BREATHER 43057 43057-1001 1
RESERVOIR 43078 43078-0048 1
BOLT,SCREW,4X12 92002 92002-1323 1
NUT,FLANGED,6MM,BLACK 92015 92015-1233 1
RING-SNAP 92033 92033-0034 1
RING-O 92055 92055-0137 1
RING-O,MASTER CYLINDER 92055A 92055-1251 1
BOLT,LEVER 92153 92153-0868 1
BOLT,SOCKET,6X22 92153A 92153-1518 2
BOLT,SOCKET,6X12 92153B 92153-1853 1
CLAMP 92171 92171-0624 1
SCREW 92172 92172-0319 1
SCREW,4X20 92172A 92172-0320 3
