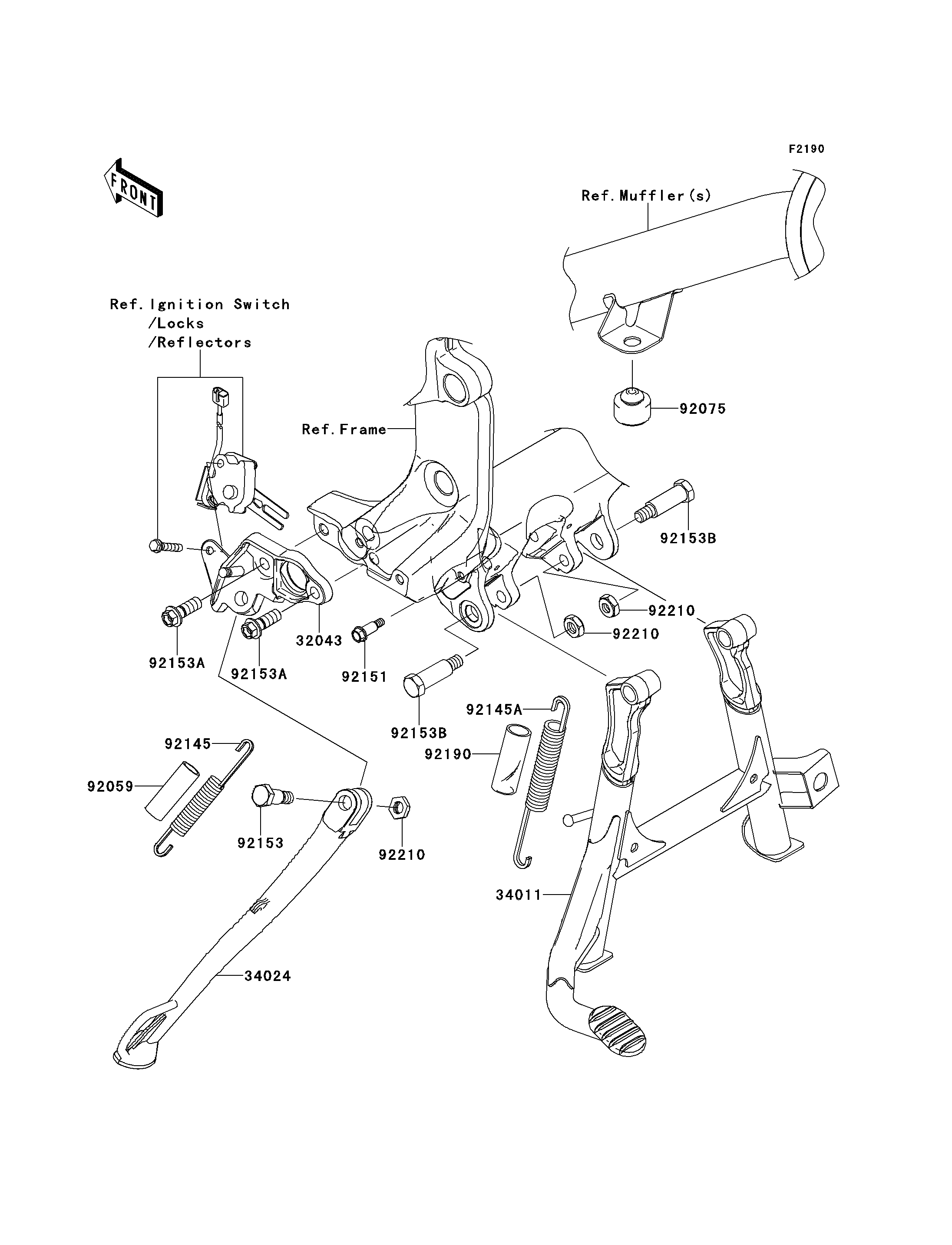

Parts Diagrams |
32043
34011
34024
92059
92075
92145
92145A
92151
92153
92153A
92153A
92153B
92153B
92190
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-STAND,SIDE,BLACK | 32043 | 32043-0070-18R | 1 | ||
| STAND-CENTER | 34011 | 34011-0016 | 1 | ||
| STAND-SIDE,BLACK | 34024 | 34024-0033-18R | 1 | ||
| TUBE,14X17X50 | 92059 | 92059-1961 | 1 | ||
| DAMPER | 92075 | 92075-015 | 1 | ||
| SPRING,SIDE STAND | 92145 | 92145-0562 | 1 | ||
| SPRING,CENTER STAND | 92145A | 92145-1550 | 1 | ||
| BOLT,6MM | 92151 | 92151-1295 | 1 | ||
| BOLT,SIDE STAND,10MM | 92153 | 92153-1416 | 1 | ||
| BOLT,FLANGED,10X28 | 92153A | 92153-1417 | 2 | ||
| BOLT,CENTER STAND,10MM | 92153B | 92153-1593 | 2 | ||
| TUBE,16.5X20.5X55 | 92190 | 92190-1462 | 1 | ||
| NUT,LOCK,10MM | 92210 | 92210-0278 | 3 |
| BRACKET-STAND,SIDE,BLACK | |
| REF # | 32043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAND-CENTER | |
| REF # | 34011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STAND-SIDE,BLACK | |
| REF # | 34024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE,14X17X50 | |
| REF # | 92059 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,SIDE STAND | |
| REF # | 92145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,CENTER STAND | |
| REF # | 92145A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6MM | |
| REF # | 92151 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SIDE STAND,10MM | |
| REF # | 92153 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X28 | |
| REF # | 92153A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,CENTER STAND,10MM | |
| REF # | 92153B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,16.5X20.5X55 | |
| REF # | 92190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
