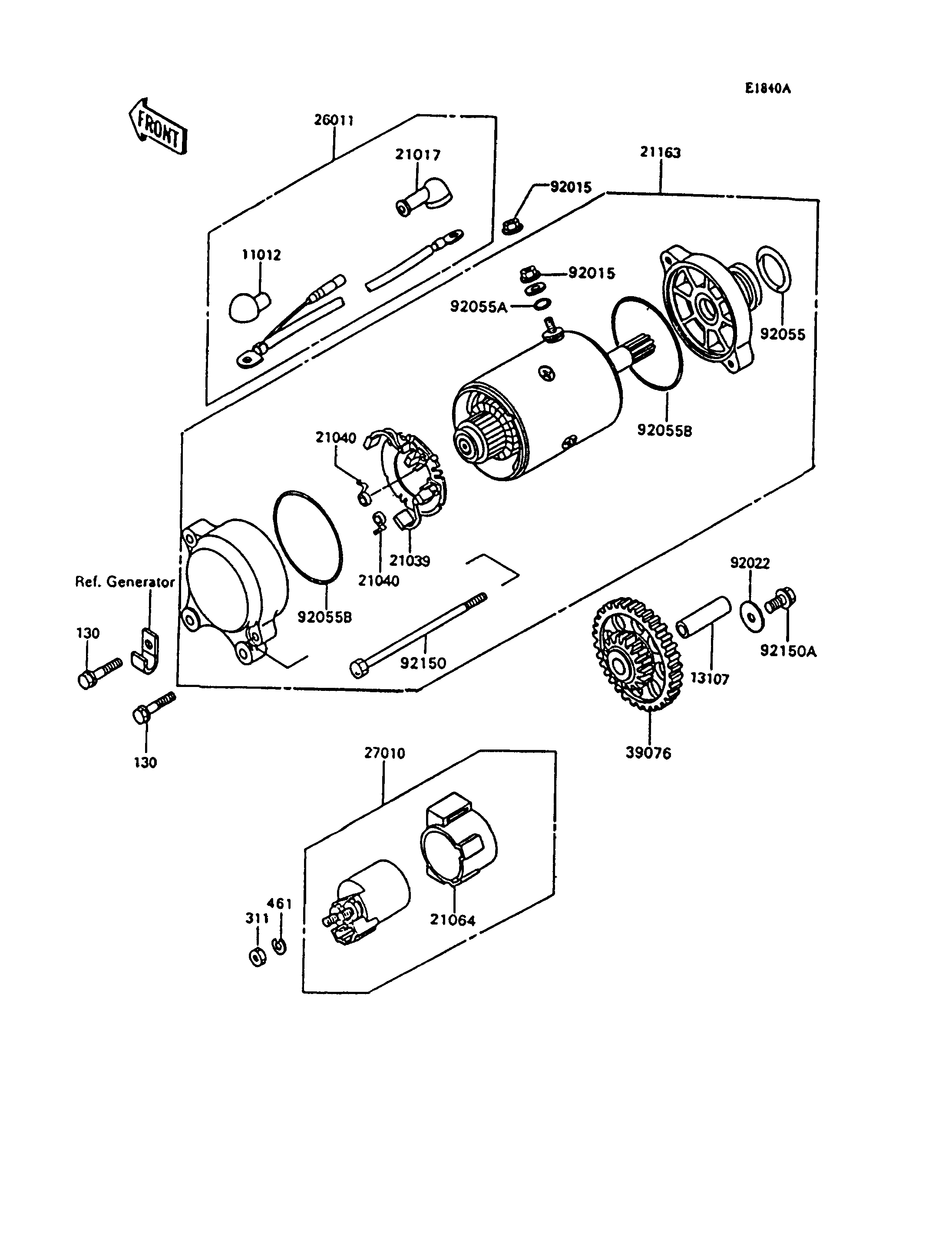

1993 Voyager XII - Starter Motor(ZG1200-B7/B8/B9)
130
130
311
461
11012
13107
21017
21039
21040
21040
21064
21163
26011
27010
39076
92015
92015
92022
92055
92055A
92055B
92055B
92150
92150A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED,6X25 | 130 | 130G0625 | 2 | ||
NUT-HEX,6MM | 311 | 311B0600 | 2 | ||
WASHER-SPRING,6MM | 461 | 461F0600 | 2 | ||
CAP,TERMINAL | 11012 | 11012-1354 | 1 | ||
SHAFT,IDLE GEAR | 13107 | 13107-1106 | 1 | ||
GROMMET,STARTER TERMINAL | 21017 | 21017-017 | 1 | ||
BRUSH,CARBON | 21039 | 21039-1060 | 1 | ||
SPRING-BRUSH | 21040 | 21040-1055 | 4 | ||
DAMPER,MAGNETIC SWITCH | 21064 | 21064-002 | 1 | ||
STARTER-ELECTRIC | 21163 | 21163-1196 | 1 | ||
WIRE-LEAD,STARTER MOTOR | 26011 | 26011-1369 | 1 | ||
SWITCH,MAGNETIC | 27010 | 27010-1209 | 1 | ||
LIMITER,STARTER IDLE | 39076 | 39076-1067 | 1 | ||
NUT,STARTER MOTOR | 92015 | 92015-1476 | 2 | ||
WASHER,6X19.5X2 | 92022 | 92022-1517 | 1 | ||
RING-O | 92055 | 92055-1276 | 1 | ||
RING-O,4.5X2.0 | 92055A | 92055-1370 | 1 | ||
RING-O,STARTER MOTOR | 92055B | 92055-1381 | 2 | ||
BOLT,STARTER MOTOR | 92150 | 92150-1572 | 2 | ||
BOLT,6X12 | 92150A | 92150-1826 | 1 |
