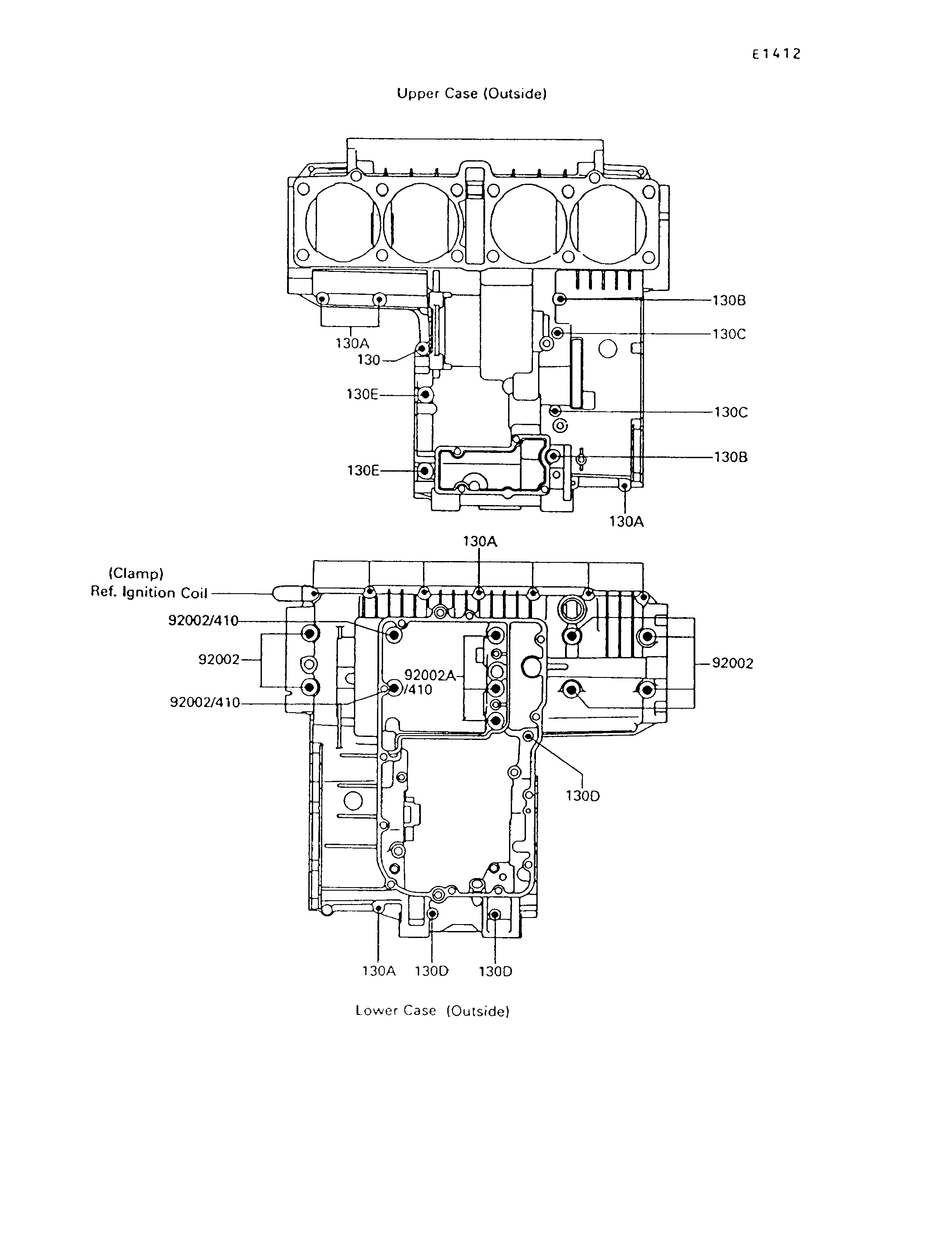

1993 Voyager XII - Crankcase Bolt Pattern
130
130A
130A
130A
130A
130B
130B
130C
130C
130D
130D
130D
130E
130E
410
92002
92002
92002
92002
92002A
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BOLT-FLANGED | 130 | 130Y0635 | 1 | ||
BOLT-FLANGED | 130A | 130Y0640 | 11 | ||
BOLT-FLANGED | 130B | 130Y0690 | 2 | ||
BOLT-FLANGED | 130C | 130Z06105 | 2 | ||
BOLT-FLANGED | 130D | 130Z06120 | 3 | ||
BOLT-FLANGED | 130E | 130Z0870 | 2 | ||
WASHER-PLAIN-SMALL,10MM | 410 | 410B1000 | 5 | ||
BOLT,10X95 | 92002 | 92002-1651 | 8 | ||
BOLT,10X145 | 92002A | 92002-1652 | 3 |
BOLT-FLANGED | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130A |
---|---|
PART NUMBER | |
QUANTITY | 11 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130D |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
BOLT-FLANGED | |
REF # | 130E |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER-PLAIN-SMALL,10MM | |
REF # | 410 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BOLT,10X95 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
BOLT,10X145 | |
REF # | 92002A |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
