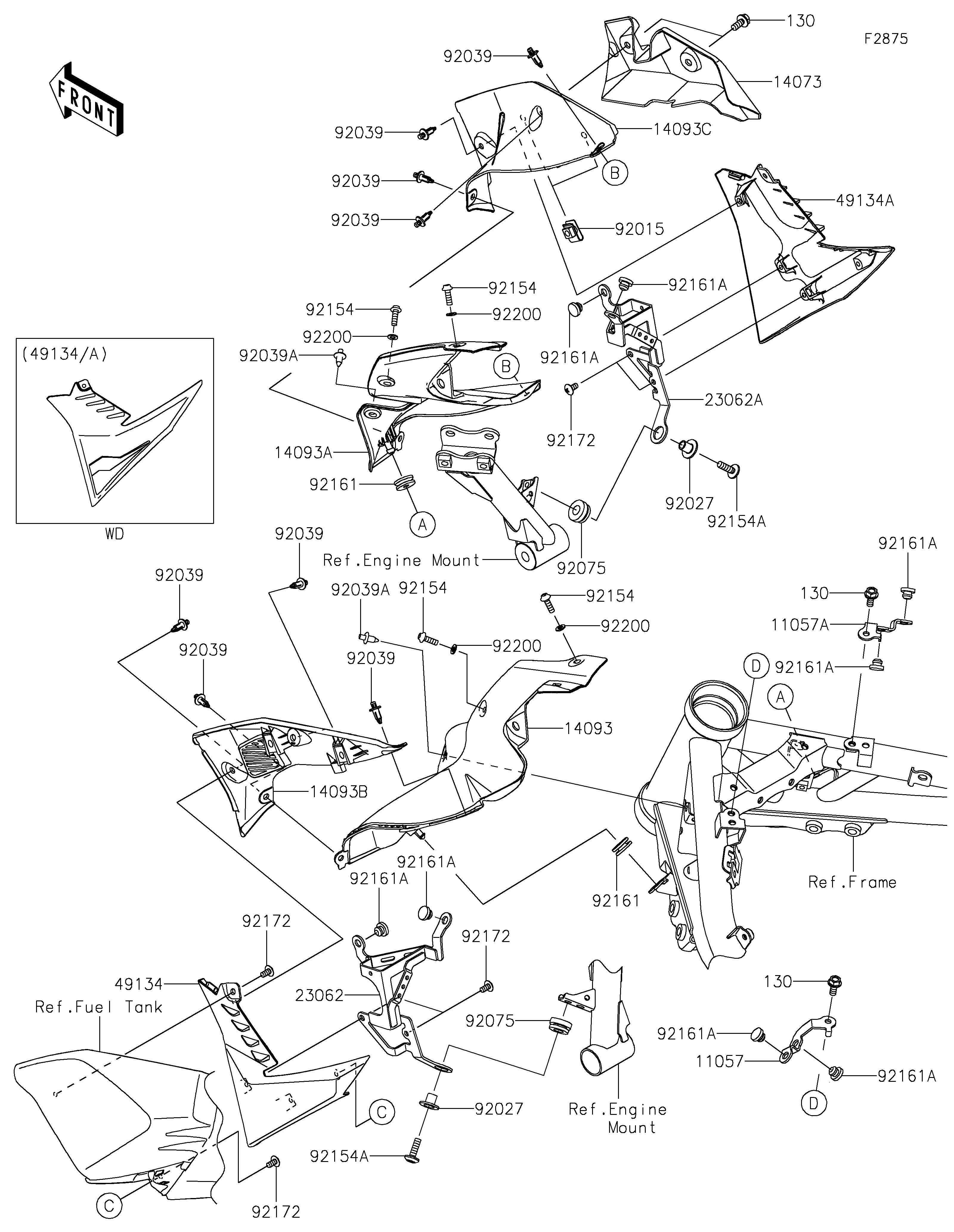

2023 Z900 SE - Shroud

DOWNLOAD PDF
SELECT A NEW PART
11057
11057A
14073
14093
14093A
14093B
14093C
23062
23062A
49134
49134A
92015
92027
92027
92039
92039
92039
92039
92039
92039
92039
92039
92039A
92039A
92075
92075
92154
92154
92154
92154
92154A
92154A
92161
92161
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92161A
92172
92172
92172
92172
92200
92200
92200
92200
130
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,SHROUD,RR,LH 11057 11057-3997 1
BRACKET,SHROUD,RR,RH 11057A 11057-3998 1
DUCT,INNER,GUIDE,RH 14073 14073-0962 1
COVER,SHROUD,INNER,RR,LH 14093 14093-0917 1
COVER,SHROUD,INNER,RR,RH 14093A 14093-0918 1
COVER,SHROUD,INNER,FR,LH 14093B 14093-0919 1
COVER,SHROUD,INNER,FR,RH 14093C 14093-0920 1
BRACKET-COMP,SHROUD,FR,LH 23062 23062-1278 1
BRACKET-COMP,SHROUD,FR,RH 23062A 23062-1279 1
SHROUD,LH,M.M.G.GRAY 49134 49134-5443-68P 1
SHROUD,RH,M.M.G.GRAY 49134A 49134-5445-68P 1
NUT,6MM 92015 92015-1671 2
COLLAR,FLANGED,L=12.1,BLACK 92027 92027-1651 2
RIVET 92039 92039-0051 8
RIVET 92039A 92039-0068 2
DAMPER 92075 92075-277 2
BOLT,SOCKET,5X16 92154 92154-4294 4
BOLT,SOCKET,6X20 92154A 92154-4295 2
DAMPER 92161 92161-0588 2
DAMPER 92161A 92161-1971 8
SCREW,5X10 92172 92172-0864 8
WASHER,5.2X10X1 92200 92200-2286 4
BOLT-FLANGED,6X14 130 130BA0614 4
