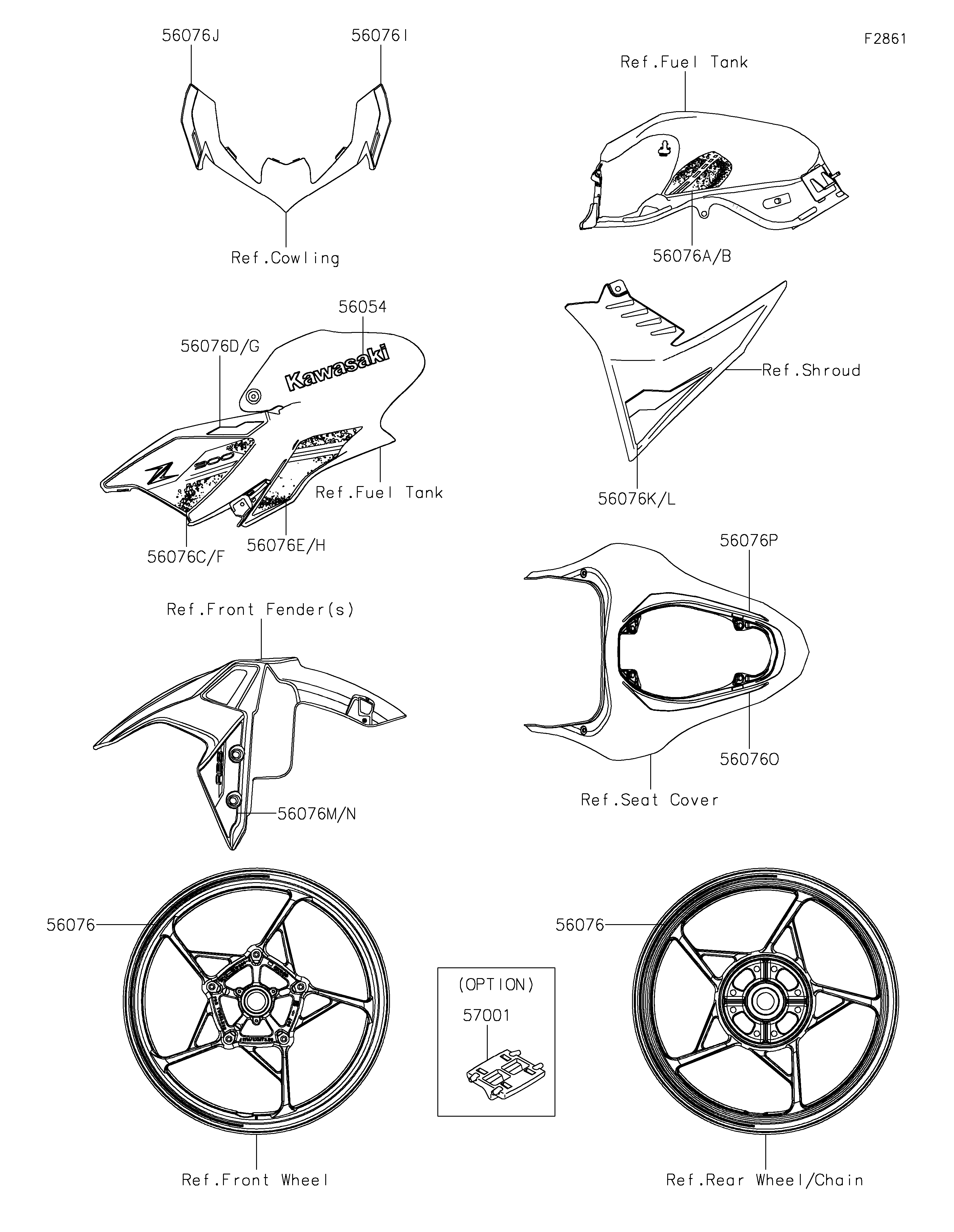

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
56054
56076
56076
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
56076L
56076M
56076N
56076O
56076P
57001
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,KAWASAKI | 56054 | 56054-1356 | 2 | ||
| PATTERN,WHEEL,GRN/BLK,6X700 | 56076 | 56076-2166 | 4 | ||
| PATTERN,FUEL TANK,LH | 56076A | 56076-7857 | 1 | ||
| PATTERN,FUEL TANK,RH | 56076B | 56076-7858 | 1 | ||
| PATTERN,TANK COVER,LH,FR | 56076C | 56076-7859 | 1 | ||
| PATTERN,TANK COVER,LH,CNT | 56076D | 56076-7860 | 1 | ||
| PATTERN,TANK COVER,LH,RR | 56076E | 56076-7861 | 1 | ||
| PATTERN,TANK COVER,RH,FR | 56076F | 56076-7862 | 1 | ||
| PATTERN,TANK COVER,RH,CNT | 56076G | 56076-7863 | 1 | ||
| PATTERN,TANK COVER,RH,RR | 56076H | 56076-7864 | 1 | ||
| PATTERN,UPP COWL.,LH,CNT | 56076I | 56076-7865 | 1 | ||
| PATTERN,UPP COWL.,RH,CNT | 56076J | 56076-7866 | 1 | ||
| PATTERN,SHROUD,LH | 56076K | 56076-7867 | 1 | ||
| PATTERN,SHROUD,RH | 56076L | 56076-7868 | 1 | ||
| PATTERN,FR FENDER,LH | 56076M | 56076-7869 | 1 | ||
| PATTERN,FR FENDER,RH | 56076N | 56076-7870 | 1 | ||
| PATTERN,TAIL COVER,LH | 56076O | 56076-7871 | 1 | ||
| PATTERN,TAIL COVER,RH | 56076P | 56076-7872 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) |
