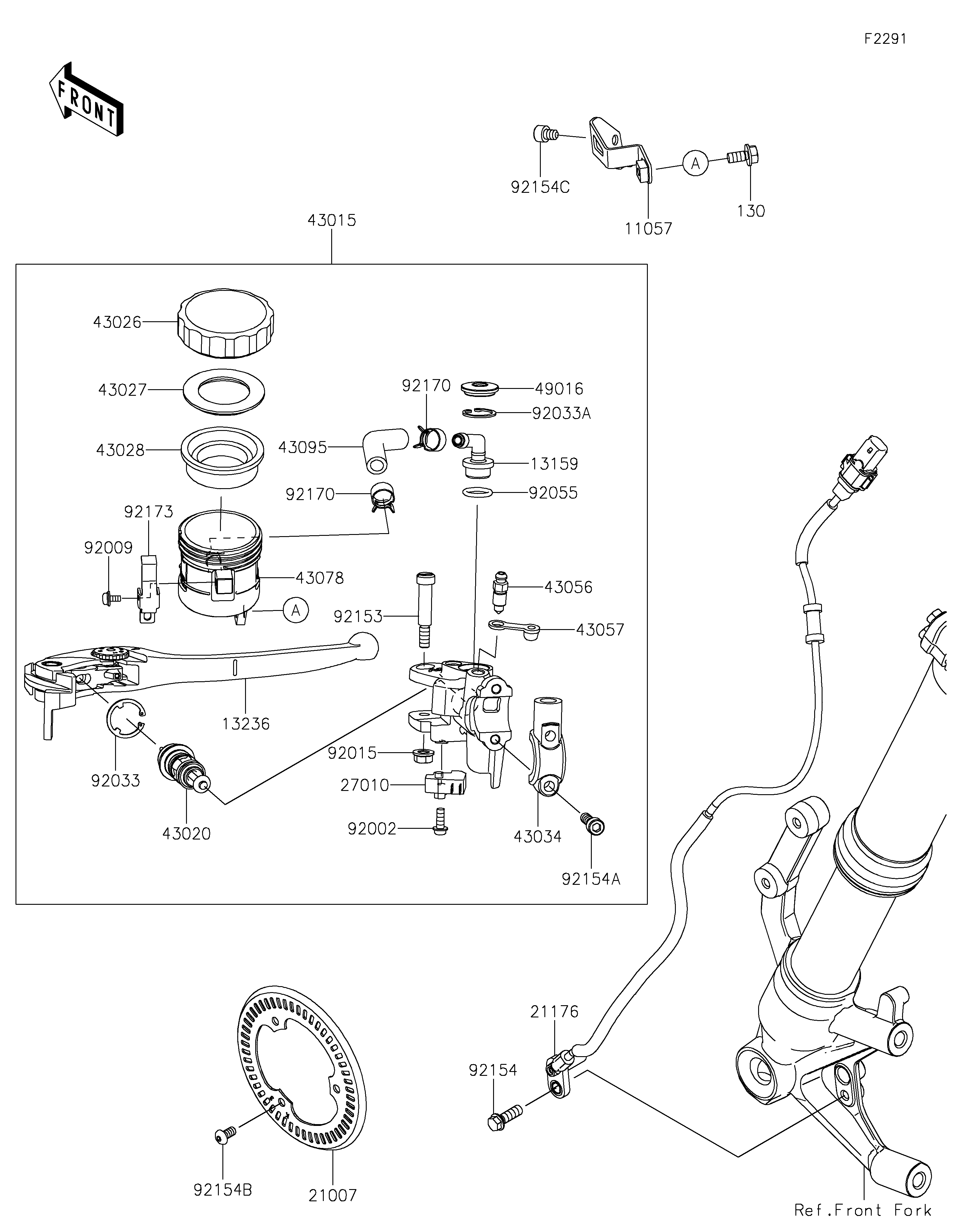

2023 Z900 SE - Front Master Cylinder

DOWNLOAD PDF
SELECT A NEW PART
11057
13159
13236
21007
21176
27010
43015
43020
43026
43027
43028
43034
43056
43057
43078
43095
49016
92002
92009
92015
92033
92033A
92055
92153
92154
92154A
92154B
92154C
92170
92170
92173
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,MASTER CYLINDER 11057 11057-4128 1
CONNECTOR 13159 13159-1061 1
LEVER-COMP,FRONT BRAKE 13236 13236-0139 1
ROTOR,SENSOR,FR 21007 21007-0671 1
SENSOR,SPEED,FR 21176 21176-0973 1
SWITCH,BRAKE 27010 27010-0762 1
CYLINDER-ASSY-MASTER,FR 43015 43015-0769 1
PISTON-COMP-BRAKE 43020 43020-0028 1
CAP-BRAKE 43026 43026-1051 1
PLATE-DIAPHRAGM 43027 43027-1051 1
DIAPHRAGM,MASTER CYLINDER 43028 43028-1057 1
HOLDER-BRAKE,MASTER CYLINDER 43034 43034-0057 1
BREATHER-BRAKE 43056 43056-1056 1
CAP-BREATHER 43057 43057-1001 1
RESERVOIR 43078 43078-0591 1
HOSE-BRAKE 43095 43095-1753 1
COVER-SEAL 49016 49016-1147 1
BOLT,SCREW,4X12 92002 92002-1323 1
SCREW 92009 92009-1570 1
NUT,FLANGED,6MM 92015 92015-1528 1
RING-SNAP 92033 92033-0034 1
RING-SNAP,20.5MM 92033A 92033-1186 1
RING-O,14.8X2.4 92055 92055-0741 1
BOLT,LEVER 92153 92153-0868 1
BOLT,FLANGED,6X18 92154 92154-0784 1
BOLT,SOCKET,6X22 92154A 92154-1271 2
BOLT,SOCKET,5X10 92154B 92154-2801 3
BOLT,SOCKET,6X8 92154C 92154-2914 1
CLAMP,HOSE 92170 92170-1091 2
CLAMP 92173 92173-1790 1
BOLT-FLANGED,6X12 130 130BA0612 1
