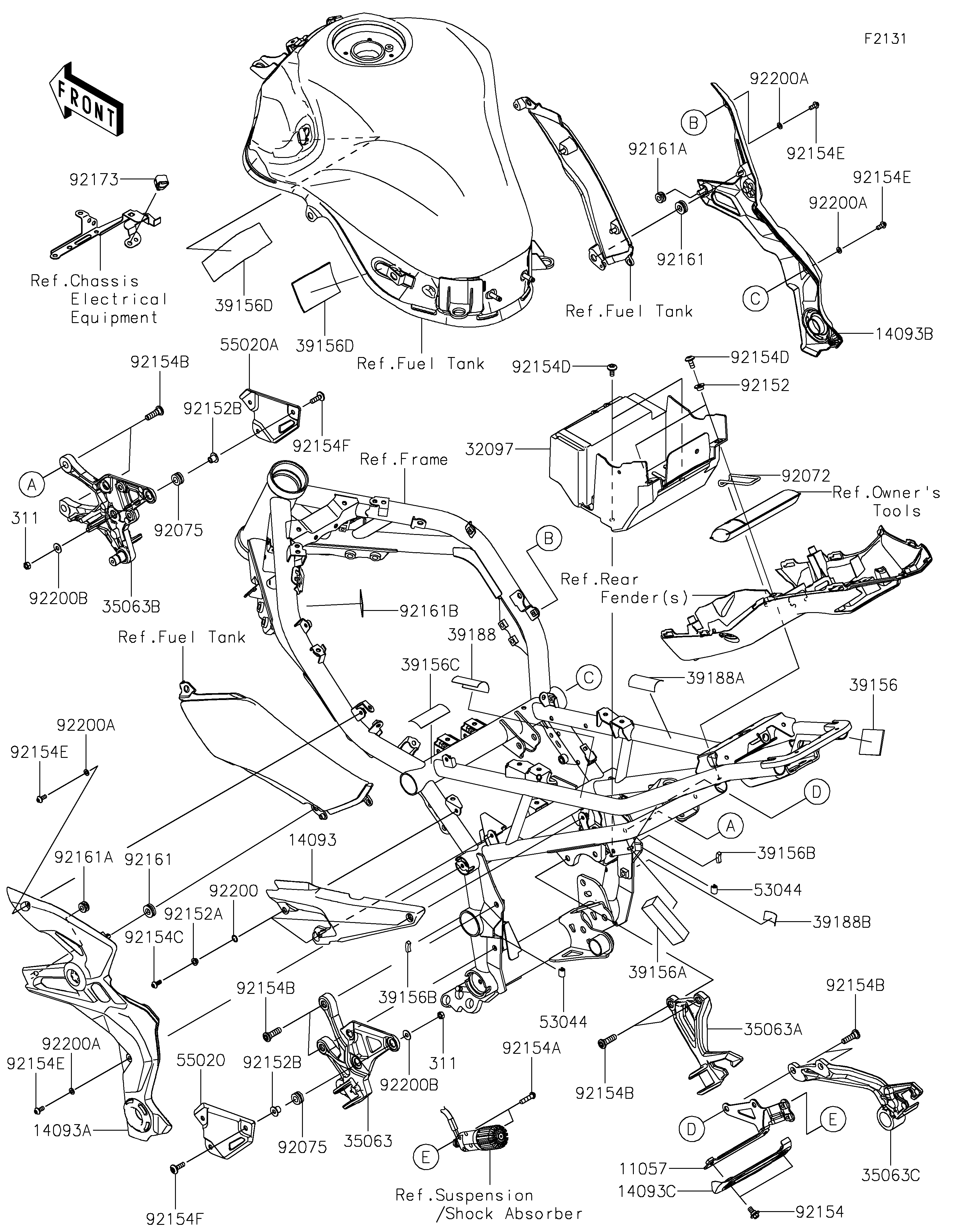

2023 Z900 SE - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11057
11057
14093
14093
14093A
14093A
14093B
14093B
14093C
14093C
32097
32097
35063
35063
35063A
35063A
35063B
35063B
35063C
35063C
39156
39156
39156A
39156A
39156B
39156B
39156B
39156B
39156C
39156C
39156D
39156D
39156D
39156D
39188
39188
39188A
39188A
39188B
39188B
53044
53044
53044
53044
55020
55020
55020A
55020A
92072
92072
92075
92075
92075
92075
92152
92152
92152A
92152A
92152B
92152B
92152B
92152B
92154
92154
92154A
92154A
92154B
92154B
92154B
92154B
92154B
92154B
92154B
92154B
92154C
92154C
92154D
92154D
92154D
92154D
92154E
92154E
92154E
92154E
92154E
92154E
92154E
92154E
92154F
92154F
92154F
92154F
92161
92161
92161
92161
92161A
92161A
92161A
92161A
92161B
92161B
92173
92173
92200
92200
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200A
92200B
92200B
92200B
92200B
311
311
311
311
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,PRELOAD ADJUSTER 11057 11057-4127 1
COVER,HARNESS,LH 14093 14093-0511 1
COVER,PIVOT,LH,M.M.G.GRAY 14093A 14093-0926-68P 1
COVER,PIVOT,RH,M.M.G.GRAY 14093B 14093-0927-68P 1
COVER 14093C 14093-1051 1
CASE-BATTERY 32097 32097-0045 1
STAY,STEP,FR,LH,F.S.BLACK 35063 35063-1399-18R 1
STAY,STEP,RR,LH,F.S.BLACK 35063A 35063-1452-18R 1
STAY,STEP,FR,RH,F.S.BLACK 35063B 35063-1454-18R 1
STAY,STEP,RR,RH,F.S.BLACK 35063C 35063-1518-18R 1
PAD,40X60X2 39156 39156-2177 1
PAD,25X80X20 39156A 39156-2217 1
PAD,20X5X5 39156B 39156-2509 2
PAD,70X30X1 39156C 39156-2535 1
PAD,100X50X5 39156D 39156-2543 2
TAPE,40X60 39188 39188-0583 1
TAPE,60X30 39188A 39188-0587 1
TAPE,15X30 39188B 39188-0590 1
TRIM 53044 53044-0577 2
GUARD,HEEL,LH 55020 55020-1962 1
GUARD,HEEL,RH 55020A 55020-1963 1
BAND,TOOL CASE 92072 92072-0865 1
DAMPER 92075 92075-1409 6
COLLAR,6.5X10X6.4 92152 92152-2287 2
COLLAR,5.7X8.5X4.5 92152A 92152-2354 3
COLLAR 92152B 92152-2682 6
BOLT,FLANGED,6X9 92154 92154-0546 2
BOLT,SOCKET,6X25 92154A 92154-1142 2
BOLT,SOCKET,8X28 92154B 92154-2334 8
BOLT,SOCKET,5X12,MEC 92154C 92154-2678 3
BOLT,SOCKET,6X14 92154D 92154-4286 4
BOLT,SOCKET,5X12 92154E 92154-4289 4
BOLT,SOCKET,6X20 92154F 92154-4295 6
DAMPER 92161 92161-0588 2
DAMPER 92161A 92161-0864 2
DAMPER,25X40,T1.0 92161B 92161-1432 1
CLAMP,12MM DIA. 92173 92173-0736 1
WASHER,8.8X11.5X0.5 92200 92200-1888 3
WASHER,5.2X10X1 92200A 92200-2286 4
WASHER,6.5X16X1.0 92200B 92200-2390 6
NUT-HEX,6MM 311 311AA0600 6
