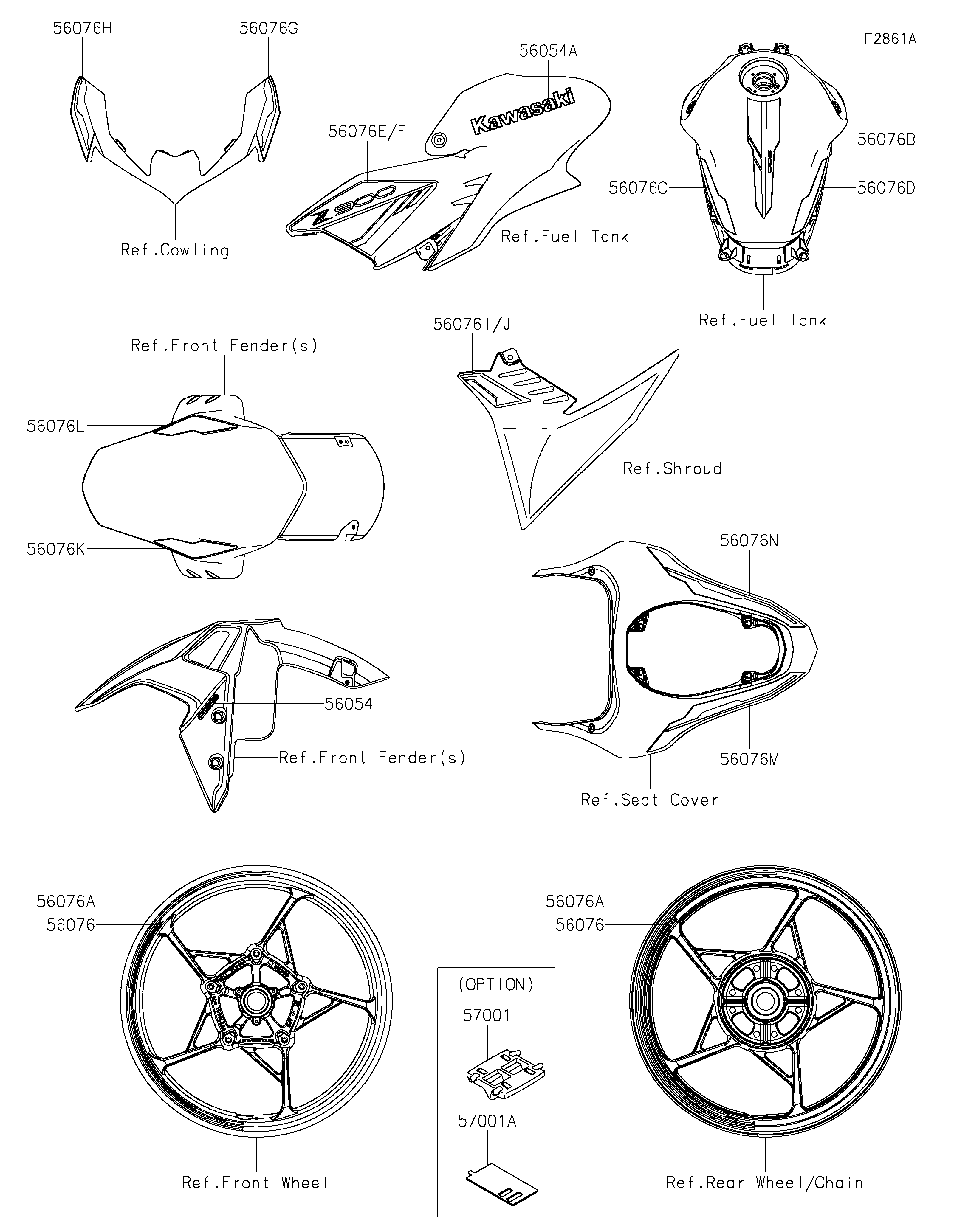

2023 Z900 ABS - Decals(Silver)(FPFBN/FPFBL)
56054
56054A
56076
56076
56076A
56076A
56076B
56076C
56076D
56076E
56076F
56076G
56076H
56076I
56076J
56076K
56076L
56076M
56076N
57001
57001A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,ABS | 56054 | 56054-1412 | 2 | ||
| MARK,KAWASAKI | 56054A | 56054-1876 | 2 | ||
| PATTERN,WHEEL,SIL/RED,535X12 | 56076 | 56076-7447 | 4 | ||
| PATTERN,WHEEL,SIL/RED,6X700 | 56076A | 56076-7448 | 4 | ||
| PATTERN,FUEL TANK,CNT | 56076B | 56076-7836 | 1 | ||
| PATTERN,FUEL TANK,LH | 56076C | 56076-7837 | 1 | ||
| PATTERN,FUEL TANK,RH | 56076D | 56076-7838 | 1 | ||
| PATTERN,TANK COVER,LH | 56076E | 56076-7839 | 1 | ||
| PATTERN,TANK COVER,RH | 56076F | 56076-7840 | 1 | ||
| PATTERN,UPP COWL.,LH,CNT | 56076G | 56076-7841 | 1 | ||
| PATTERN,UPP COWL.,RH,CNT | 56076H | 56076-7842 | 1 | ||
| PATTERN,SHROUD,LH | 56076I | 56076-7843 | 1 | ||
| PATTERN,SHROUD,RH | 56076J | 56076-7844 | 1 | ||
| PATTERN,FR FENDER,LH | 56076K | 56076-7845 | 1 | ||
| PATTERN,FR FENDER,RH | 56076L | 56076-7846 | 1 | ||
| PATTERN,TAIL COVER,LH | 56076M | 56076-7847 | 1 | ||
| PATTERN,TAIL COVER,RH | 56076N | 56076-7848 | 1 | ||
| RIM STRIPE APPLICATOR | 57001 | 57001-1752 | AR | (OPTION) | |
| RIM STRIPE APPLICATOR,10/12MM | 57001A | 57001-1836 | AR | (OPTION) |
| MARK,ABS | |
| REF # | 56054 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,KAWASAKI | |
| REF # | 56054A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,SIL/RED,535X12 | |
| REF # | 56076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PATTERN,WHEEL,SIL/RED,6X700 | |
| REF # | 56076A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,CNT | |
| REF # | 56076B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56076C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56076D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK COVER,LH | |
| REF # | 56076E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TANK COVER,RH | |
| REF # | 56076F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,LH,CNT | |
| REF # | 56076G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWL.,RH,CNT | |
| REF # | 56076H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,LH | |
| REF # | 56076I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SHROUD,RH | |
| REF # | 56076J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,LH | |
| REF # | 56076K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FR FENDER,RH | |
| REF # | 56076L |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,LH | |
| REF # | 56076M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,TAIL COVER,RH | |
| REF # | 56076N |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM STRIPE APPLICATOR | |
| REF # | 57001 |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
| RIM STRIPE APPLICATOR,10/12MM | |
| REF # | 57001A |
|---|---|
| PART NUMBER | |
| QUANTITY | AR |
| DESTINATION | |
| REMARKS | (OPTION) |
