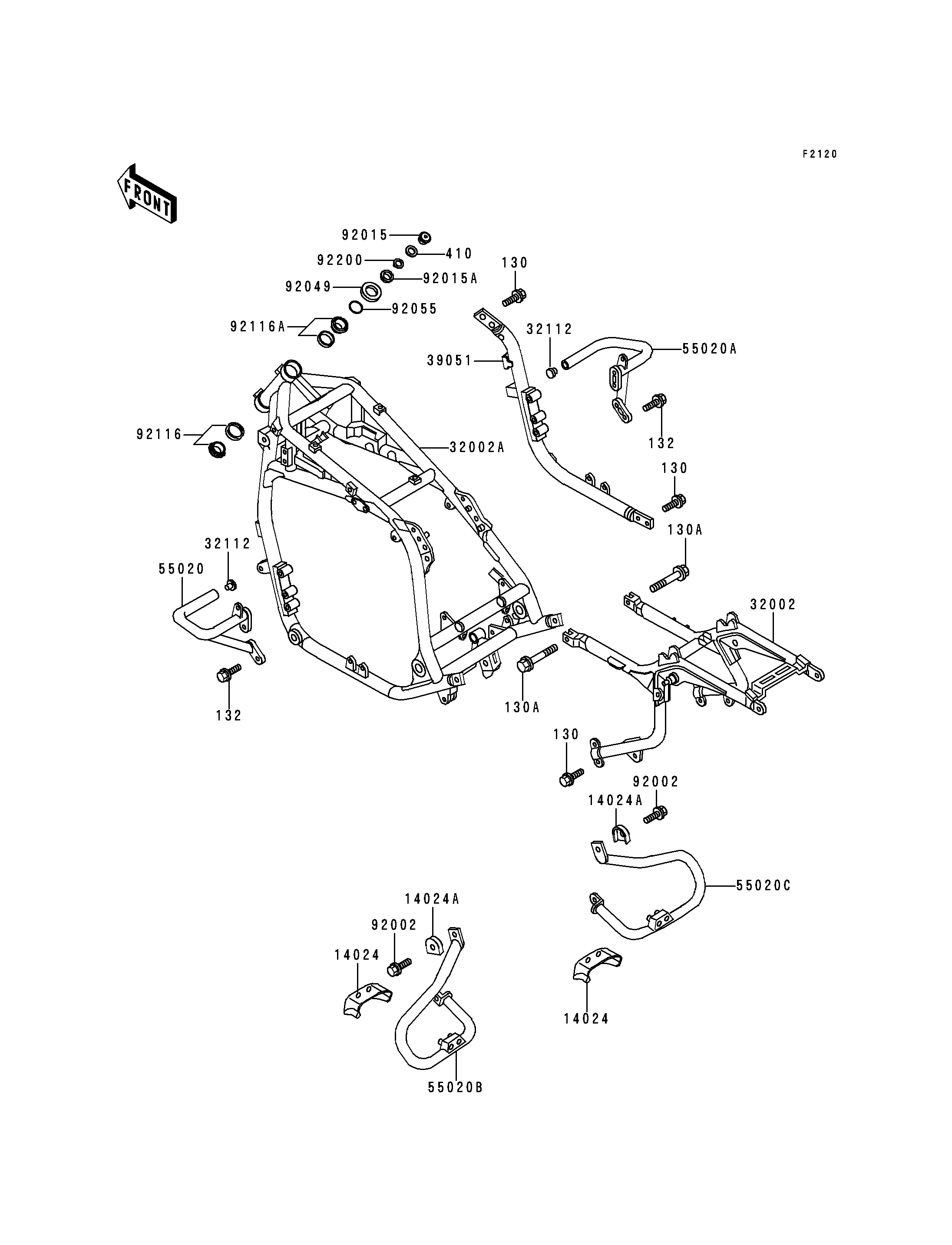

1997 Voyager XII - Frame

DOWNLOAD PDF
SELECT A NEW PART
130
130
130
130A
130A
132
132
410
14024
14024
14024A
14024A
32002
32002A
32112
32112
39051
55020
55020A
55020B
55020C
92002
92002
92015
92015A
92049
92055
92116
92116A
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130S1016 6
BOLT-FLANGED,10X40 130A 130S1040 2
BOLT-FLANGED-SMALL,8X12 132 132J0812 4
W-PLAIN-S 410 410F1800 1
COVER,SIDE BAG STAY 14024 14024-1335 2
COVER,SIDE BAG STAY 14024A 14024-1336 2
FRAME-COMP,RR 32002 32002-1861 1
FRAME-COMP,FR 32002A 32002-1947 1
PLUG,22X3 32112 32112-008 2
FRAME-COMP-SIDE 39051 39051-1052 1
GUARD,FR,LH 55020 55020-1212 1
GUARD,FR,RH 55020A 55020-1213 1
GUARD,RR,LH 55020B 55020-1214 1
GUARD,RR,RH 55020C 55020-1215 1
BOLT,FLANGED,10X20 92002 92002-1827 2
NUT,18MM 92015 92015-1404 1
NUT,25MM,T=12 92015A 92015-1546 1
SEAL-OIL,STEERING STEM 92049 92049-1214 1
RING-O,ID=24.5 92055 92055-1459 1
BEARING-ROLLER,LWR,32006JR RS 92116 92116-1008 1
BEARING-ROLLER,HI-CAP32005JR-1 92116A 92116-1056 1
WASHER,CLAW,18.5X30X2.3 92200 92200-1357 1
