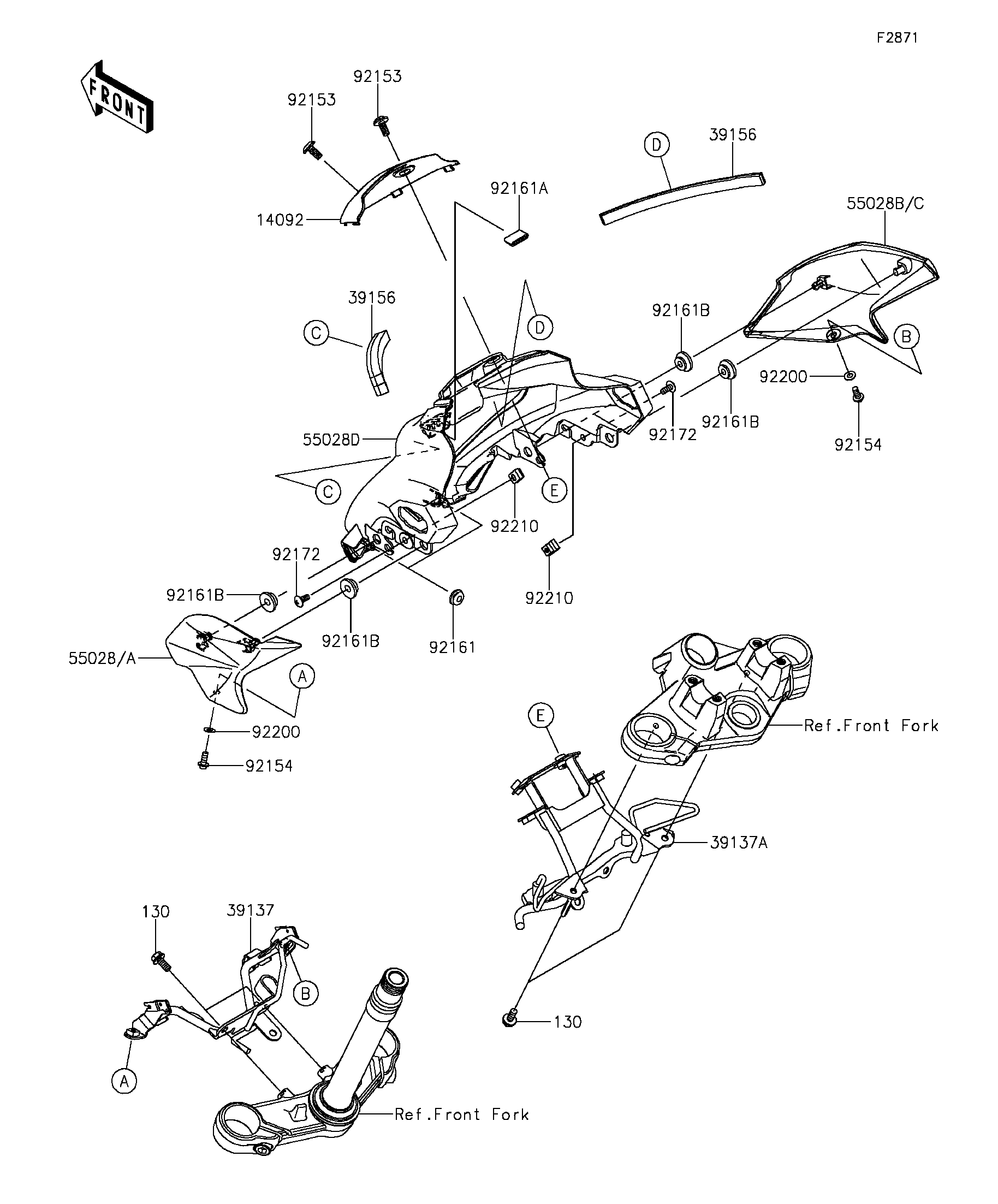

2014 Z250SL - Cowling

DOWNLOAD PDF
SELECT A NEW PART
14092
39137
39137A
39156
39156
55028
55028A
55028B
55028C
55028D
92153
92153
92154
92154
92161
92161A
92161B
92161B
92161B
92161B
92172
92172
92200
92200
92210
92210
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,METER 14092 14092-1151 1
STAY-COMP,UPP COWL.,LWR 39137 39137-0622 1
STAY-COMP,UPP COWL.,UPP 39137A 39137-0623 1
PAD,15X170X10 39156 39156-1820 2
COWLING,UPP,LH,EBONY 55028 55028-0498-20A 1
COWLING,UPP,LH,C.L.GREEN 55028A 55028-0498-21Q 1
COWLING,UPP,RH,EBONY 55028B 55028-0499-20A 1
COWLING,UPP,RH,C.L.GREEN 55028C 55028-0499-21Q 1
COWLING,UPP,CNT 55028D 55028-0546 1
BOLT,SOCKET,6X14 92153 92153-1361 2
BOLT,SOCKET,5X12 92154 92154-0917 2
DAMPER 92161 92161-0631 2
DAMPER,12X23 92161A 92161-1367 1
DAMPER 92161B 92161-1531 4
SCREW,5X12,WHITE 92172 92172-1070 2
WASHER,NYLON,5.3X11.5X0.5 92200 92200-1480 2
NUT,PLATE,5MM 92210 92210-0262 2
BOLT-FLANGED,6X14 130 130BA0614 4
