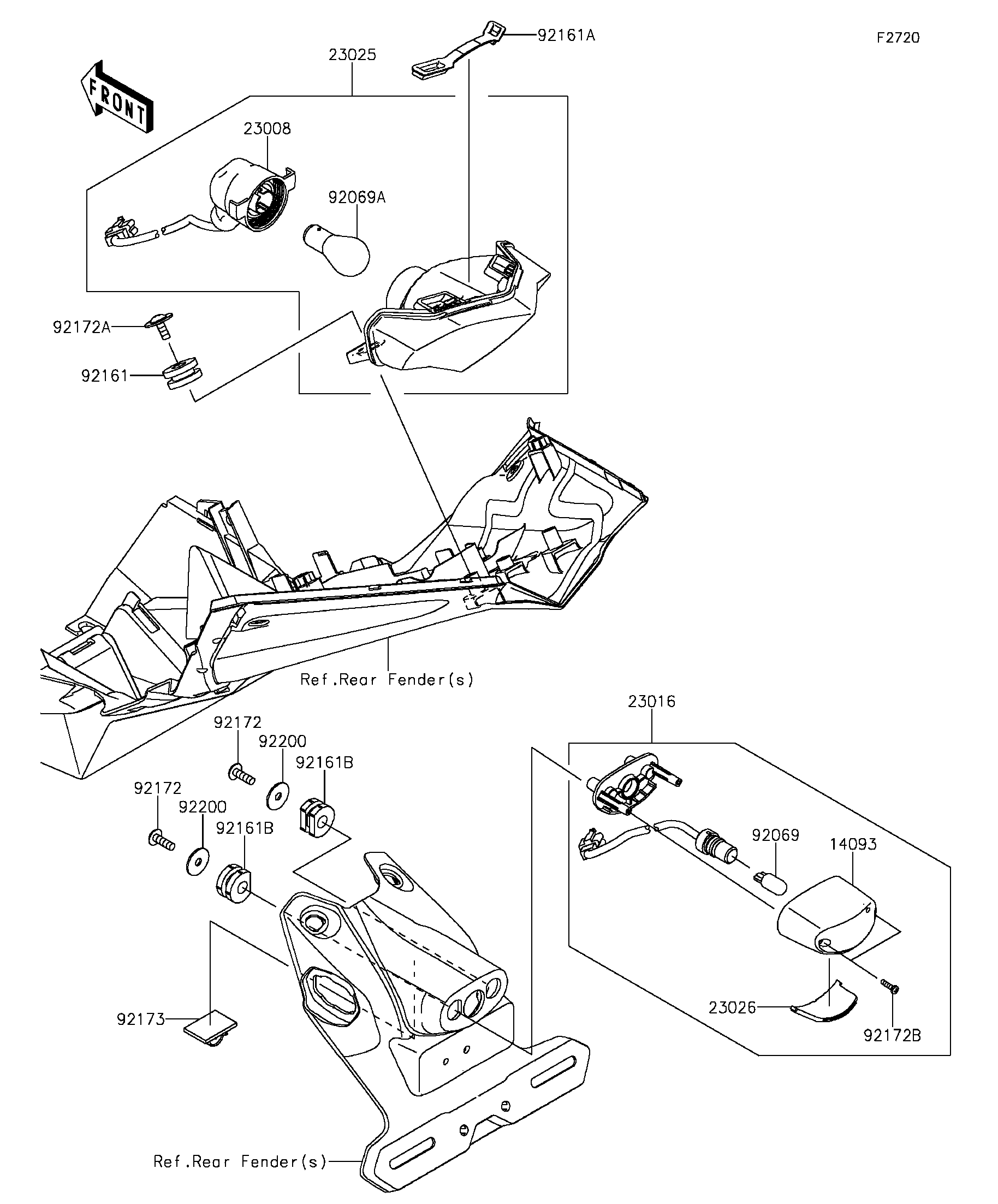

2014 Z250SL - Taillight(s)

DOWNLOAD PDF
SELECT A NEW PART
14093
23008
23016
23025
23026
92069
92069A
92161
92161A
92161B
92161B
92172
92172
92172A
92172B
92173
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,LICENSE LAMP 14093 14093-0188 1
SOCKET-ASSY 23008 23008-0156 1
LAMP-ASSY,LICENCE 23016 23016-0564 1
LAMP-TAIL 23025 23025-0343 1
LENS,LICENSE LAMP 23026 23026-0022 1
BULB,12V 5W 92069 92069-1016 1
BULB,12V 21/5W 92069A 92069-1084 1
DAMPER 92161 92161-0163 2
DAMPER,TAIL LAMP 92161A 92161-0191 1
DAMPER 92161B 92161-0776 2
SCREW,TAPPING,5X16 92172 92172-0427 2
SCREW,TAPPING,WP,5X14 92172A 92172-0441 2
SCREW,4X12 92172B 92172-0904 2
CLAMP 92173 92173-1061 1
WASHER,5.5X20X1.2 92200 92200-0284 2
