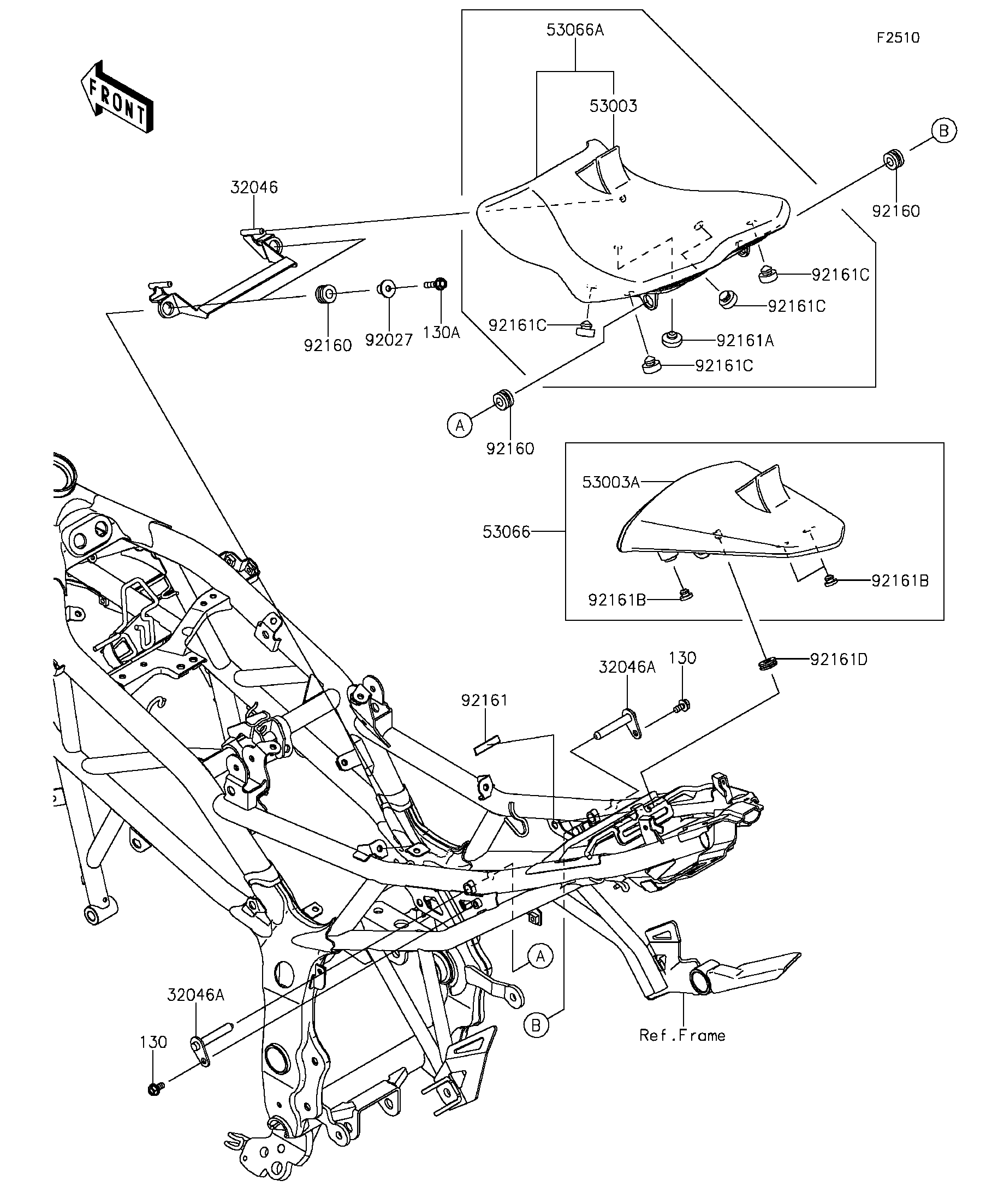

Parts Diagrams |
32046
32046A
32046A
53003
53003A
53066
53066A
92027
92160
92160
92160
92161
92161A
92161B
92161B
92161C
92161C
92161C
92161C
92161D
130
130
130A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET-SEAT,FR | 32046 | 32046-0353 | 1 | ||
| BRACKET-SEAT,RR | 32046A | 32046-0354 | 2 | ||
| LEATHER,FR SEAT,BLACK | 53003 | 53003-0371-MA | 1 | ||
| LEATHER,RR SEAT,BLACK | 53003A | 53003-0372-MA | 1 | ||
| SEAT-ASSY,RR,BLK+BAND BLK | 53066 | 53066-0463-12Y | 1 | ||
| SEAT-ASSY,FR,BLACK | 53066A | 53066-0470-MA | 1 | ||
| COLLAR,6.5X10X14.1 | 92027 | 92027-1183 | 2 | ||
| DAMPER,10X20X12 | 92160 | 92160-1167 | 4 | ||
| DAMPER,COVER UPP | 92161 | 92161-0654 | 1 | ||
| DAMPER | 92161A | 92161-0915 | 1 | ||
| DAMPER | 92161B | 92161-1084 | 3 | ||
| DAMPER,10X20X8 | 92161C | 92161-1609 | 4 | ||
| DAMPER,9X20X7 | 92161D | 92161-1644 | 1 | ||
| BOLT-FLANGED,6X12 | 130 | 130BA0612 | 2 | ||
| BOLT-FLANGED,6X25 | 130A | 130BA0625 | 2 |
