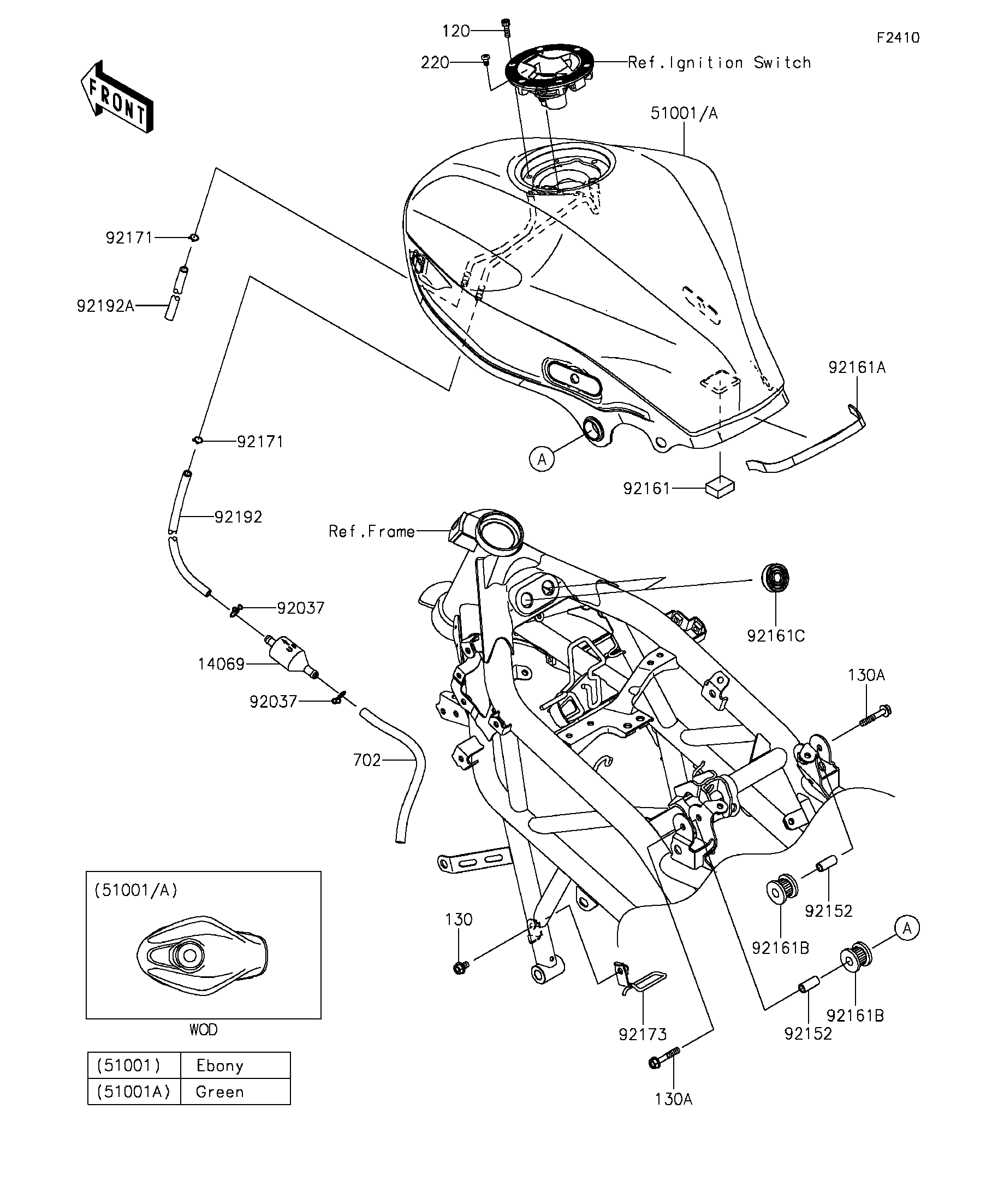

2014 Z250SL - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
14069
51001
51001A
92037
92037
92152
92152
92161
92161A
92161B
92161B
92161C
92171
92171
92173
92192
92192A
120
130
130A
130A
220
702
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BREATHER,FUEL TANK 14069 14069-1004 1
TANK-COMP-FUEL,EBONY 51001 51001-0790-20A 1
TANK-COMP-FUEL,C.L.GREEN 51001A 51001-0790-21Q 1
CLAMP,TUBE 92037 92037-147 2
COLLAR,6.8X10X23 92152 92152-1767 2
DAMPER 92161 92161-0718 1
DAMPER,10X220X2 92161A 92161-1575 1
DAMPER,10X27.8X21.4 92161B 92161-1641 2
DAMPER,10X32X17 92161C 92161-1642 2
CLAMP 92171 92171-0573 2
CLAMP,BREATHER 92173 92173-1114 1
TUBE,6X9X580 92192 92192-1296 1
TUBE,6X9X810 92192A 92192-1429 1
BOLT-SOCKET,5X16 120 120CB0516 6
BOLT-FLANGED,6X10 130 130BA0610 1
BOLT-FLANGED,6X35 130A 130BA0635 2
SCREW-PAN-CROS,5X8 220 220AB0508 1
TUBE-RUBBER,7X10X210 702 702A07210 1
