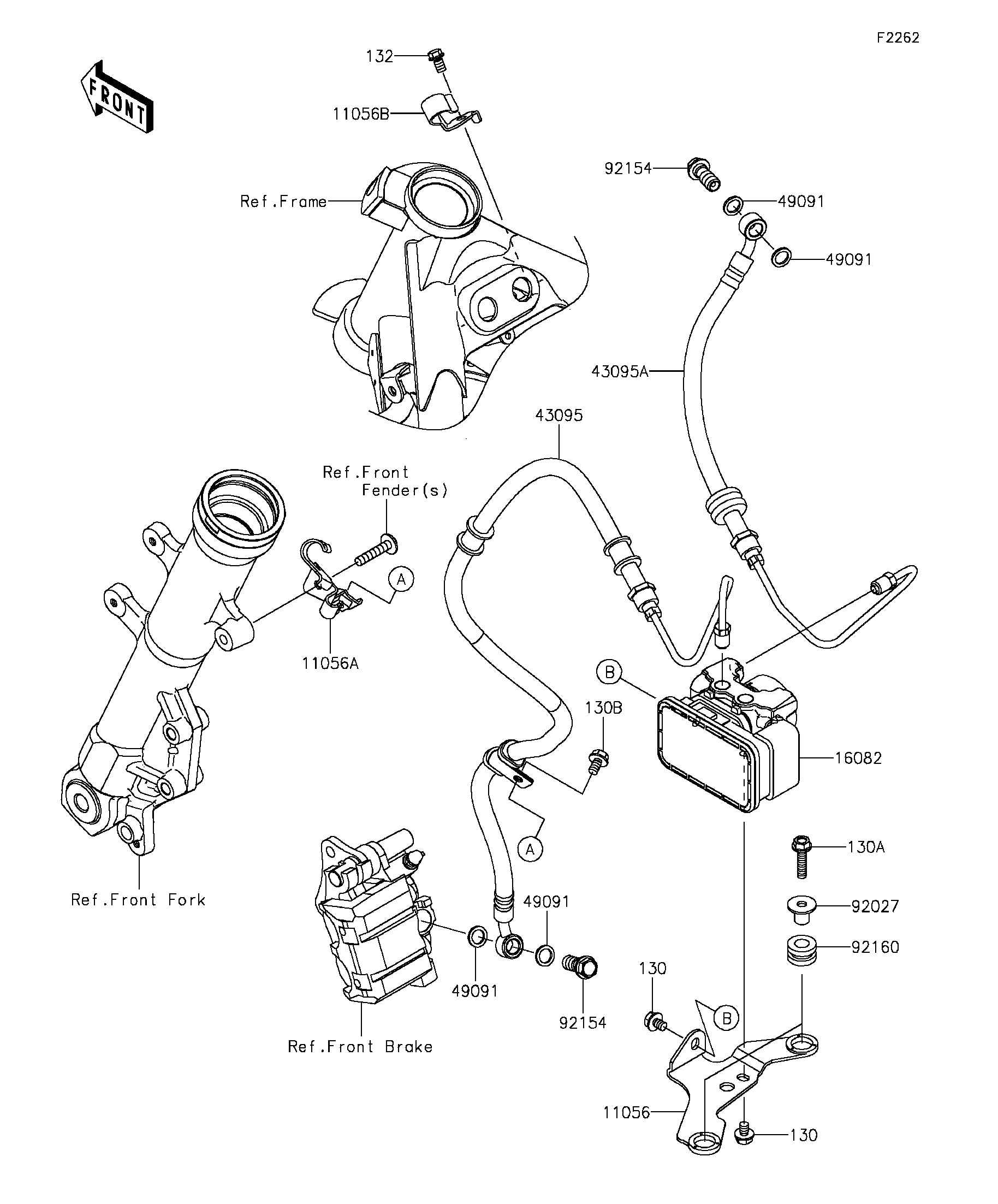

2014 Z250SL - Brake Piping

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
11056B
16082
43095
43095A
49091
49091
49091
49091
92027
92154
92154
92160
130
130
130A
130B
132
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,ABS UNIT 11056 11056-2561 1
BRACKET,FR FENDER 11056A 11056-2623 1
BRACKET,FRAME COMP 11056B 11056-4305 1
PUMP-ASSY-OIL,ABS,WET 16082 16082-0733 1
HOSE-BRAKE,FR CYLINDER 43095 43095-0794 1
HOSE-BRAKE,FR M/CYLINDER 43095A 43095-0800 1
WASHER-SEAL,10.1X14.5X1.5 49091 49091-0001 4
COLLAR,6.5X10X14.1 92027 92027-1183 2
BOLT,FLANGED,10X23 92154 92154-0732 2
DAMPER,10X20X12 92160 92160-1167 2
BOLT-FLANGED,6X8 130 130BA0608 2
BOLT-FLANGED,6X25 130A 130BA0625 2
BOLT-FLANGED,6X10 130B 130BB0610 1
BOLT-FLANGED-SMALL,6X10 132 132BB0610 1
