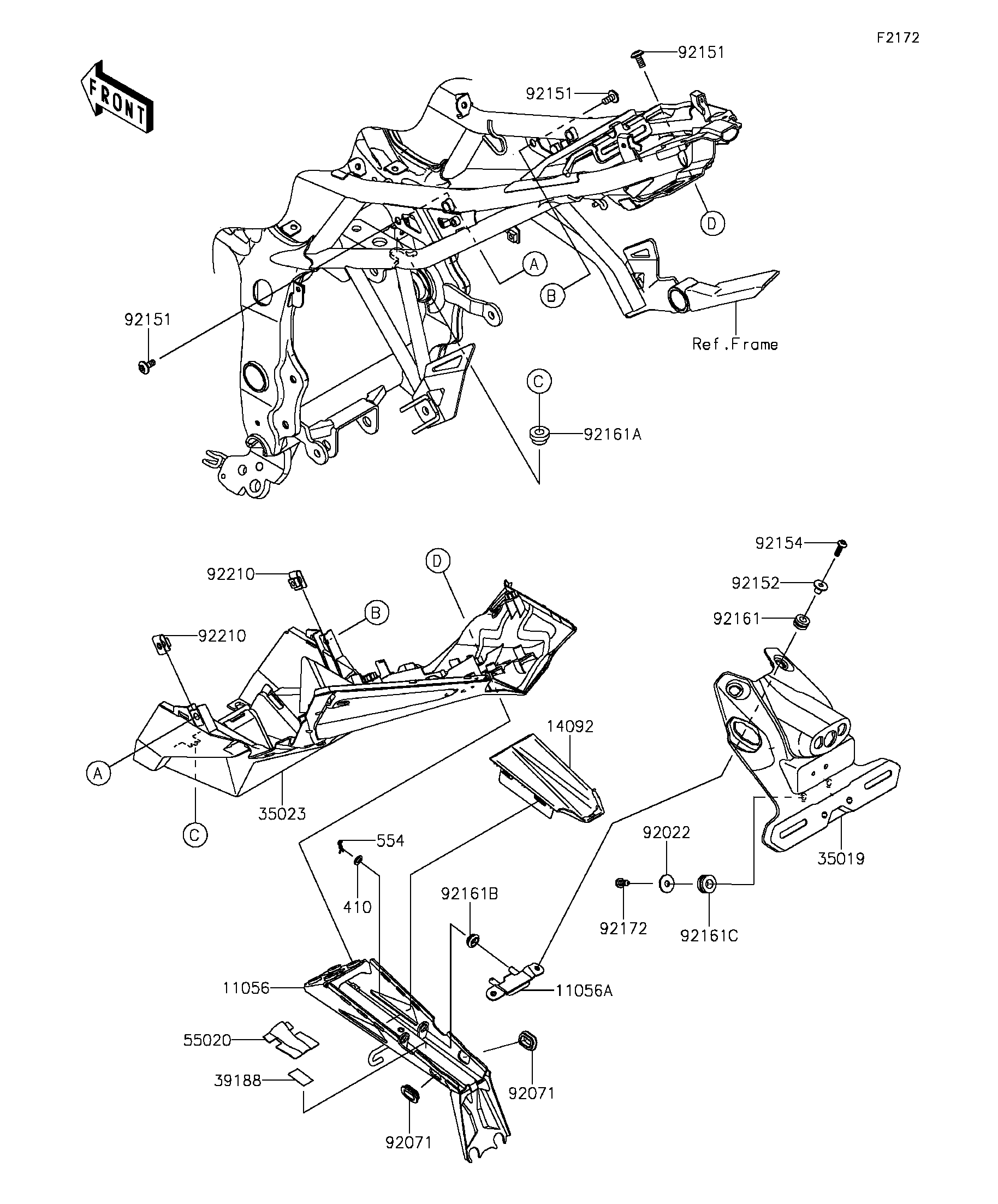

2014 Z250SL - Rear Fender(s)

DOWNLOAD PDF
SELECT A NEW PART
11056
11056A
14092
35019
35023
39188
55020
92022
92071
92071
92151
92151
92151
92152
92154
92161
92161A
92161B
92161C
92172
92210
92210
410
554
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,FLAP,MAIN,F.M.GRAY 11056 11056-7060-26M 1
BRACKET,FLAP,FR 11056A 11056-7270 1
COVER,FLAP 14092 14092-1111 1
FLAP 35019 35019-0579 1
FENDER-REAR 35023 35023-0396 1
TAPE,15X25 39188 39188-0045 1
GUARD,HARNESS 55020 55020-1873 1
WASHER,6.5X20X1.6 92022 92022-125 2
GROMMET 92071 92071-0724 2
BOLT,SOCKET,6X14 92151 92151-1654 6
COLLAR,5.2X7.2X10 92152 92152-1792 2
BOLT,SOCKET,5X16 92154 92154-0026 2
DAMPER 92161 92161-0056 2
DAMPER 92161A 92161-0501 1
DAMPER 92161B 92161-0631 2
DAMPER,10X20X8.8 92161C 92161-1664 2
SCREW,TAPPING,6X14 92172 92172-0856 2
NUT,6MM 92210 92210-0218 2
WASHER-PLAIN-SMALL 410 410AA0600 2
PIN-SNAP,1.2X21.2 554 554DA0600 2
