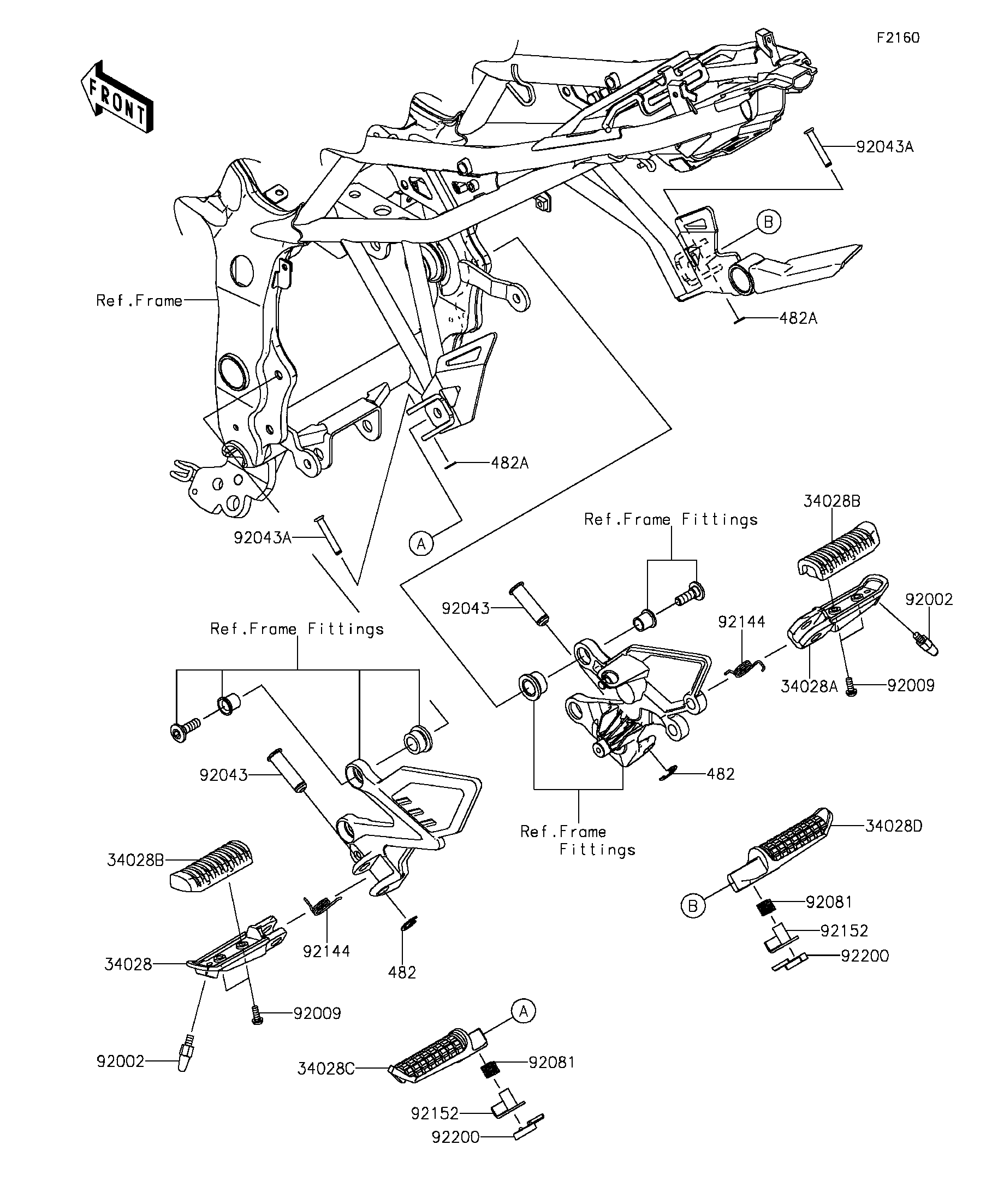

2014 Z250SL - Footrests

DOWNLOAD PDF
SELECT A NEW PART
34028
34028A
34028B
34028B
34028C
34028D
92002
92002
92009
92009
92043
92043
92043A
92043A
92081
92081
92144
92144
92152
92152
92200
92200
482
482
482A
482A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STEP,FR,LH 34028 34028-0035 1
STEP,FR,RH 34028A 34028-0036 1
STEP,FR,RUBBER 34028B 34028-0056 2
STEP,RR,LH 34028C 34028-0334 1
STEP,RR,RH 34028D 34028-0335 1
BOLT,BANK SENSOR 92002 92002-1742 2
SCREW,5X14 92009 92009-1404 4
PIN,12X37.5 92043 92043-0026 2
PIN,6X35.5 92043A 92043-1294 2
SPRING,STEP,RR 92081 92081-1612 2
SPRING,STEP RETURN 92144 92144-1567 2
COLLAR,STEP 92152 92152-0658 2
WASHER 92200 92200-0783 2
CIRCLIP-TYPE-E,10MM 482 482EA0100 2
CIRCLIP-TYPE-E 482A 482EA5000 2
