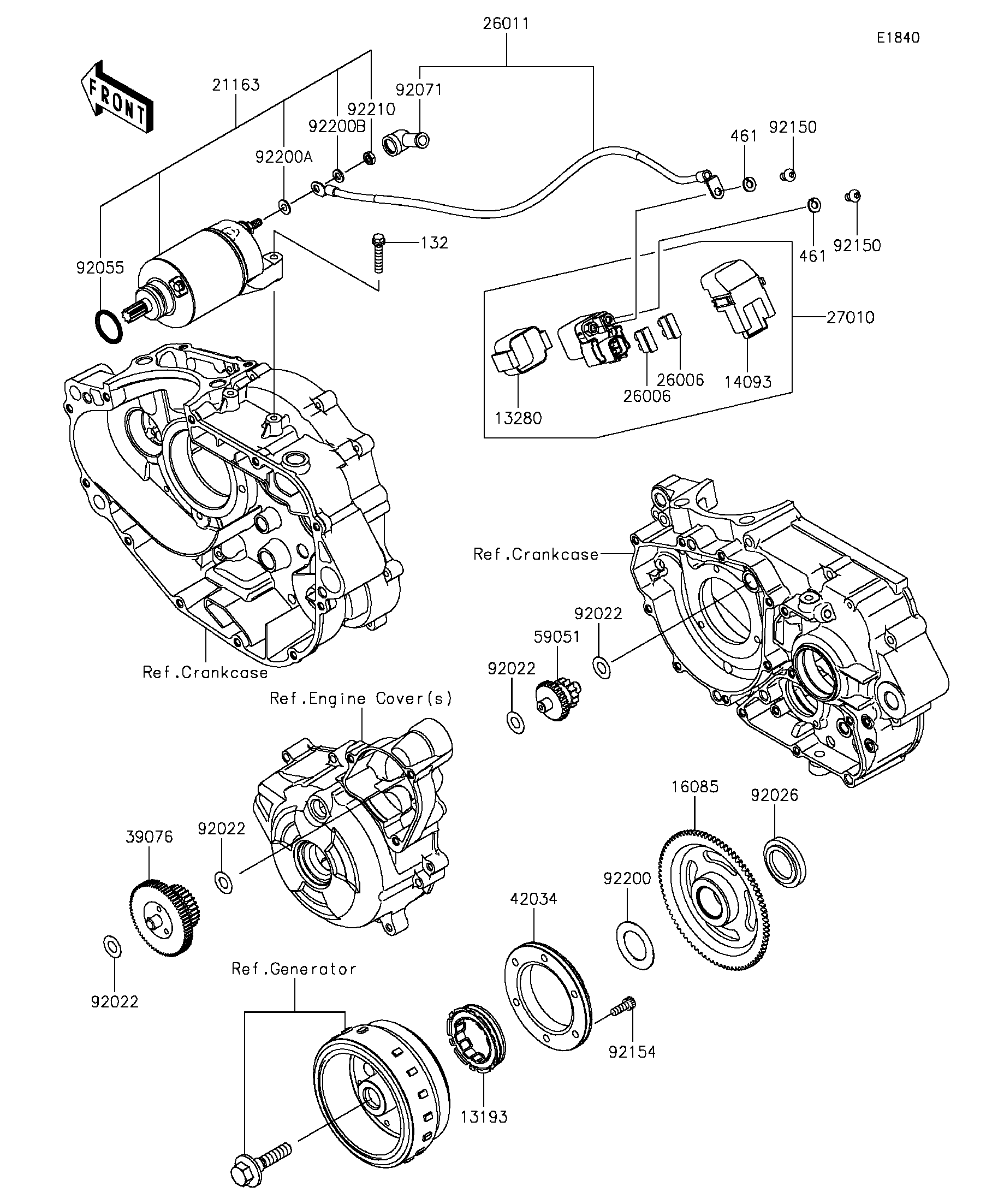

2014 Z250SL - Starter Motor

DOWNLOAD PDF
SELECT A NEW PART
13193
13280
14093
16085
21163
26006
26006
26011
27010
39076
42034
59051
92022
92022
92022
92022
92026
92055
92071
92150
92150
92154
92200
92200A
92200B
92210
132
461
461
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CLUTCH-ASSY-ONEWAY 13193 13193-0007 1
HOLDER 13280 13280-0710 1
COVER 14093 14093-0199 1
GEAR 16085 16085-0613 1
STARTER-ELECTRIC 21163 21163-0739 1
FUSE,BLADE,30A,GREEN 26006 26006-1006 2
WIRE-LEAD 26011 26011-0890 1
SWITCH 27010 27010-0754 1
LIMITER,STARTER IDLE GEAR 39076 39076-0020 1
COUPLING 42034 42034-0048 1
GEAR-SPUR,IDLER 59051 59051-0743 1
WASHER,10.2X20X0.5 92022 92022-1649 4
SPACER 92026 92026-0762 1
RING-O 92055 92055-0822 1
GROMMET 92071 92071-0024 1
BOLT,6X10 92150 92150-1577 2
BOLT,SOCKET,6X16 92154 92154-0235 6
WASHER,27.2X44X1 92200 92200-0908 1
WASHER 92200A 92200-1678 1
WASHER 92200B 92200-1679 1
NUT,6MM 92210 92210-0941 1
BOLT-FLANGED-SMALL,6X30 132 132BC0630 2
WASHER-SPRING,6MM 461 461DB0600 2
