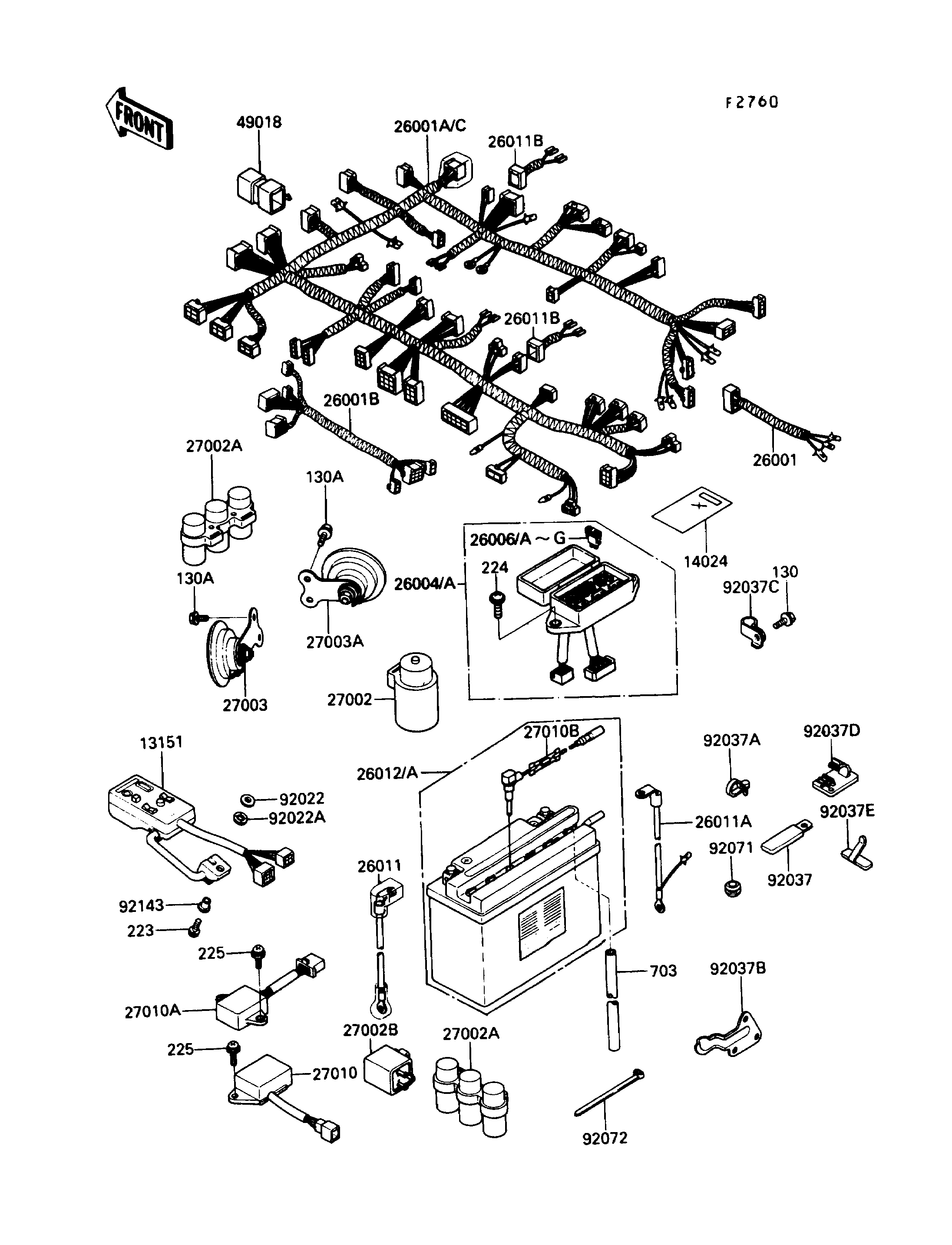

1991 Voyager XII - Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
13151
13151
14024
14024
26001B
26001B
26001C
26001C
26004A
26004A
26006D
26006D
26006E
26006E
26006F
26006F
26006G
26006G
26011
26011
26011A
26011A
26011B
26011B
26011B
26011B
26012A
26012A
27002
27002
27002A
27002A
27002A
27002A
27002B
27002B
27003
27003
27003A
27003A
27010
27010
27010A
27010A
27010B
27010B
49018
49018
92022
92022
92022A
92022A
92037
92037
92037A
92037A
92037B
92037B
92037C
92037C
92037D
92037D
92037E
92037E
130
130
130A
130A
130A
130A
223
223
224
224
225
225
225
225
703
703
92071
92071
92072
92072
92143
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH-COMP,AUDIO 13151 13151-1063 1
COVER,HARNESS 14024 14024-1352 1
HARNESS,RADIO 26001B 26001-1863 1
HARNESS,MAIN 26001C 26001-1892 1
FUSE-ASSY 26004A 26004-1085 1
FUSE,30A-G 26006D 26006-1067 2
FUSE,10A-R 26006E 26006-1068 6
FUSE,15A-B 26006F 26006-1069 2
FUSE,3A-P 26006G 26006-1070 1
WIRE-LEAD,BATTERY(+) 26011 26011-1339 1
WIRE-LEAD,BATTERY(-) 26011A 26011-1340 1
WIRE-LEAD,IGNITION COIL 26011B 26011-1365 2
BATTERY,12V 20AH,SY50-N18L-A 26012A 26012-1240 1
RELAY-ASSY 27002 27002-1051 1
RELAY-ASSY 27002A 27002-1052 2
RELAY-ASSY,TURN SIGNAL 27002B 27002-1060 1
HORN,350HZ,LH 27003 27003-1239 1
HORN,415HZ,RH 27003A 27003-1240 1
SWITCH,RESERVE LIGHTING 27010 27010-1069 1
SWITCH,TURN SIGNAL OPERATION 27010A 27010-1166 1
SWITCH,BATTERY,L=180 27010B 27010-1256 1
DIODE 49018 49018-1052 2
WASHER,6.5X20X1.6 92022 92022-125 1
WASHER,WAVE,10MM 92022A 92022-1828 1
CLAMP,WIRING HARNESS 92037 92037-1069 6
CLAMP,HOSE 92037A 92037-1163 1
CLAMP 92037B 92037-1720 1
CLAMP,HOSE 92037C 92037-1727 1
CLAMP,HARNESS 92037D 92037-1816 1
CLAMP,HARNESS 92037E 92037-1820 3
BOLT-FLANGED,6X10 130 130B0610 2
BOLT-FLANGED,6X12 130A 130C0612 4
SCREW-PAN-WS-CROS 223 223C0620 1
SCREW-PAN-WP-CROS 224 224B0614 2
SCREW-PAN-WSP-CROS 225 225B0620 4
TUBE-RUBBER,8X750 703 703A08750 1
GROMMET 92071 92071-024 1
BAND,L=185 92072 92072-1195 12
COLLAR 92143 92143-1026 1
