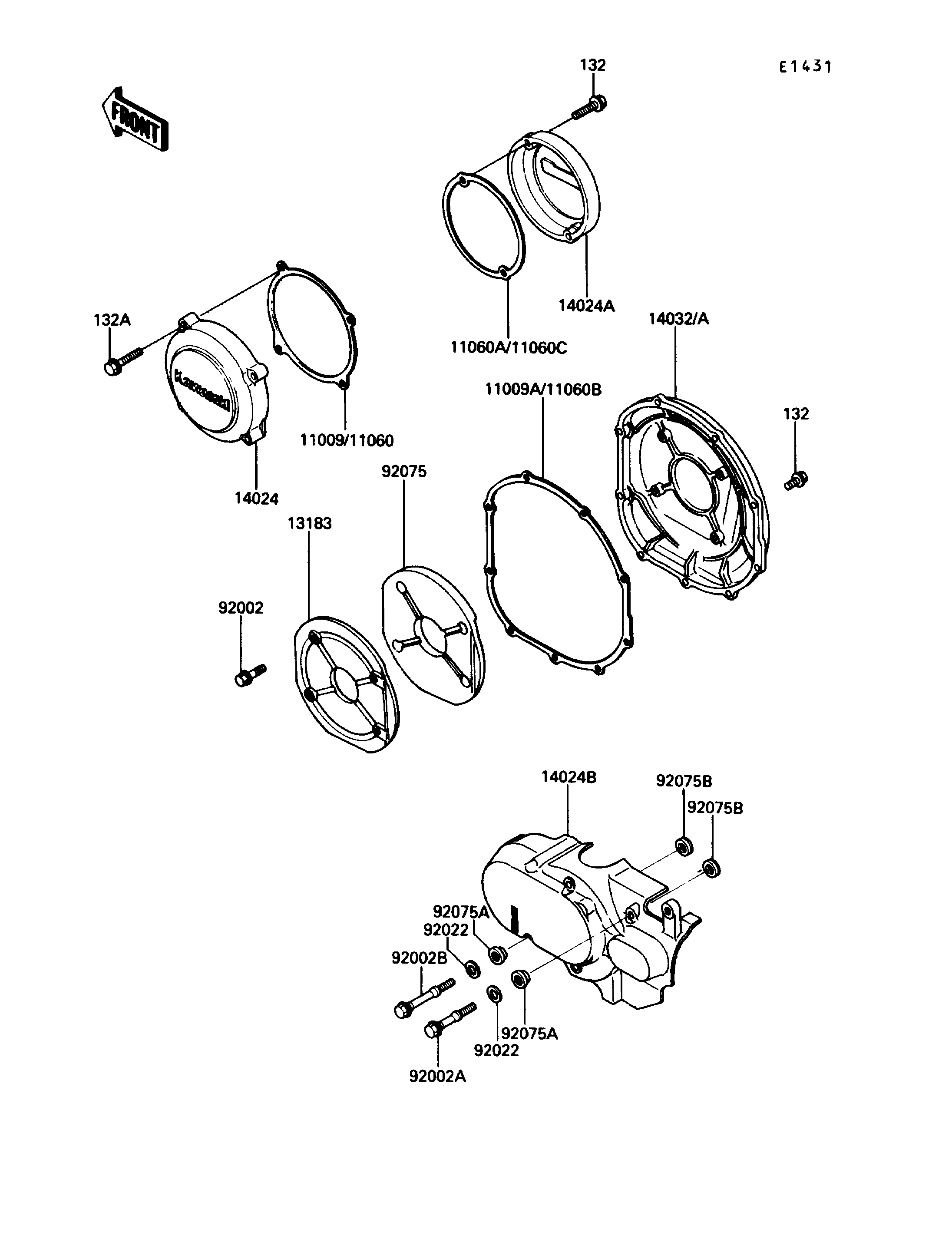

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
132
132
132A
11060A
13183
14024
14024A
14024B
14032A
92002
92002A
92002B
92022
92022
92075
92075A
92075A
92075B
92075B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-FLANGED-SMALL | 132 | 132E0625 | 11 | ||
| BOLT-FLANGED-SMALL | 132A | 132E0630 | 4 | ||
| GASKET,PULSING COIL COVER | 11060A | 11060-1098 | 1 | ||
| PLATE,SOUND ARRSETER DAMPER | 13183 | 13169-1986 | 1 | ||
| COVER,LH | 14024 | 14024-1153 | 1 | ||
| COVER,PULSING COIL | 14024A | 14024-1154 | 1 | ||
| COVER,FRONT BEVEL | 14024B | 14024-1236 | 1 | ||
| COVER-CLUTCH | 14032A | 14032-1301 | 1 | ||
| BOLT,6X10 | 92002 | 92002-1449 | 4 | ||
| BOLT | 92002A | 92002-1814 | 3 | ||
| BOLT | 92002B | 92002-1815 | 1 | ||
| WASHER | 92022 | 92022-1823 | 4 | ||
| DAMPER,SOUND ARRESTER | 92075 | 92075-1789 | 1 | ||
| DAMPER | 92075A | 92075-1855 | 4 | ||
| DAMPER | 92075B | 92075-1856 | 4 | ||
| GASKET,LH,COVER | 11060 | 11060-1097 | 1 | ||
| GASKET,CLUTCH COVER | 11060B | 11060-1099 | 1 |
