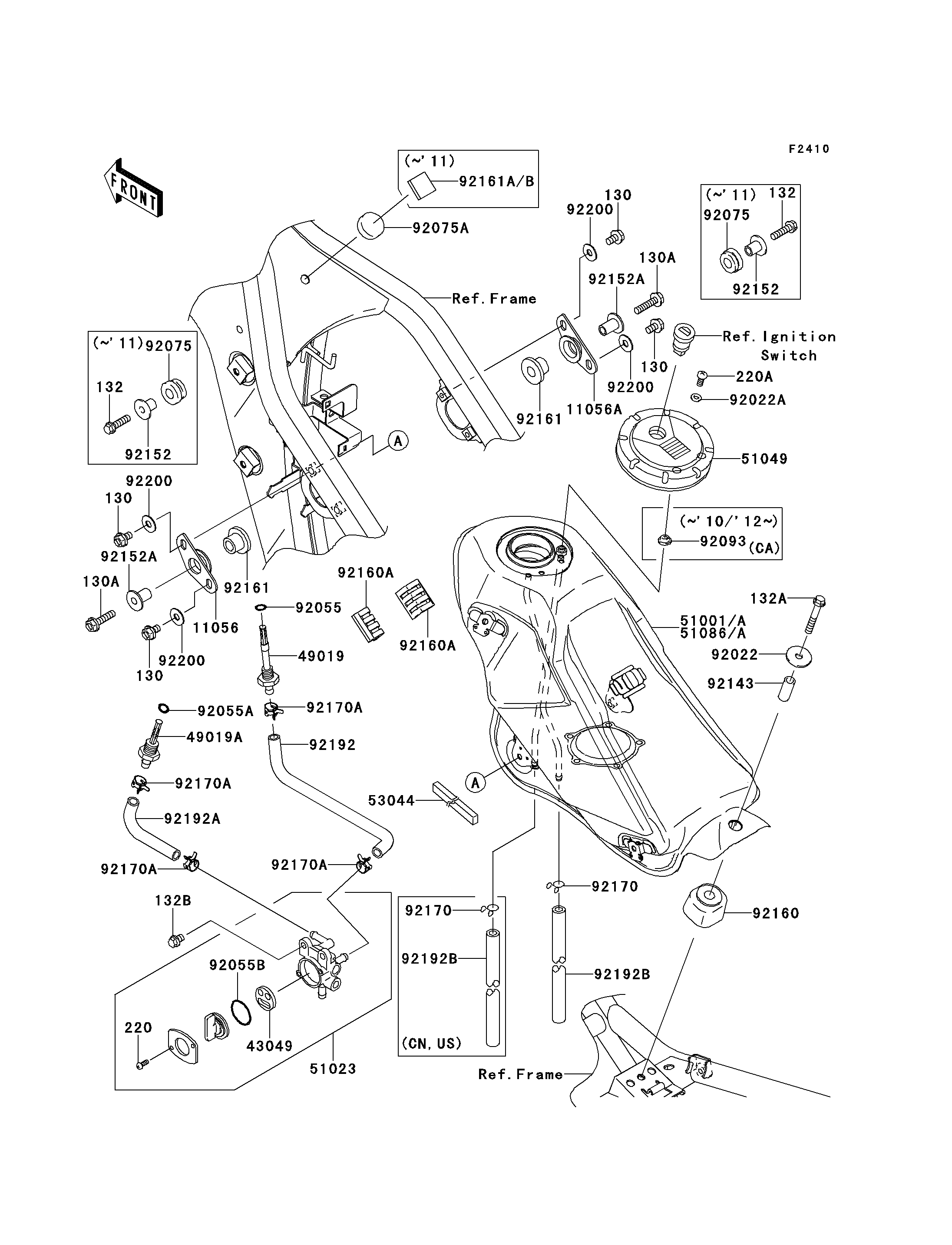

2009 KLX®250S - Fuel Tank

DOWNLOAD PDF
SELECT A NEW PART
43049
43049
49019
49019
49019A
49019A
51023
51023
51049
51049
53044
53044
92022
92022
92022A
92022A
92055
92055
92055A
92055A
92055B
92055B
92075
92075
92075
92075
92075A
92075A
92143
92143
92152
92152
92152
92152
92160
92160
92160A
92160A
92160A
92160A
92161A
92161A
92161B
92161B
92170A
92170A
92170A
92170A
92170A
92170A
92170A
92170A
132
132
132
132
132A
132A
132B
132B
220
220
220A
220A
92192
92192
92192A
92192A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PACKING,TAP VALVE 43049 43049-1091 1
FILTER-FUEL,"ON" 49019 49019-0009 1
FILTER-FUEL,"RES" 49019A 49019-1057 1
TAP-ASSY,FUEL 51023 51023-1322 1
CAP-TANK,FUEL 51049 51049-1134 1
TRIM,L=490 53044 53044-1209 1
WASHER,6.5X24X2 92022 92022-1690 1
WASHER,5.1X10X1.0 92022A 92022-1977 2
RING-O,ID=9.5 92055 92055-1386 1
RING-O,11.5X1.5 92055A 92055-1387 1
RING-O,TAP LEVER 92055B 92055-1419 1
DAMPER,RUBBER 92075 92075-1123 2
DAMPER 92075A 92075-281 1
COLLAR,6.8X10X24.5 92143 92143-1459 1
COLLAR 92152 92152-0604 2
DAMPER,FUEL TANK,RR 92160 92160-1254 1
DAMPER,FUEL TANK 92160A 92160-1328 2
DAMPER,20X20X4 92161A 92161-1429 AR
DAMPER,20X20X6 92161B 92161-1430 AR
CLAMP 92170A 92170-1872 4
BOLT-FLANGED-SMALL,6X22 132 132BA0622 2
BOLT-FLANGED-SMALL,6X35 132A 132BA0635 1
BOLT-FLANGED-SMALL,6X8 132B 132BB0608 2
SCREW-PAN-CROS,3X8 220 220AA0308 2
SCREW-PAN-CROS,5X10 220A 220AA0510 2
TUBE,FUEL,ON 92192 92192-0706 1
TUBE,FUEL,RESERVE 92192A 92192-0707 1
TANK-COMP-FUEL,F.S.BLACK 51086 51086-5063-25Q 1 CNUS
TANK-COMP-FUEL,F.S.BLACK 51086A 51086-5064-25Q 1 CA
SEAL,FUEL TANK CAP 92093 92093-1030 1 CA
CLAMP,TUBE 92170 92170-1834 1 CA
CLAMP,TUBE 92170 92170-1834 2 CNUS
TUBE,7X12X700 92192B 92192-0778 1 CA
TUBE,7X12X700 92192B 92192-0778 2 CNUS
