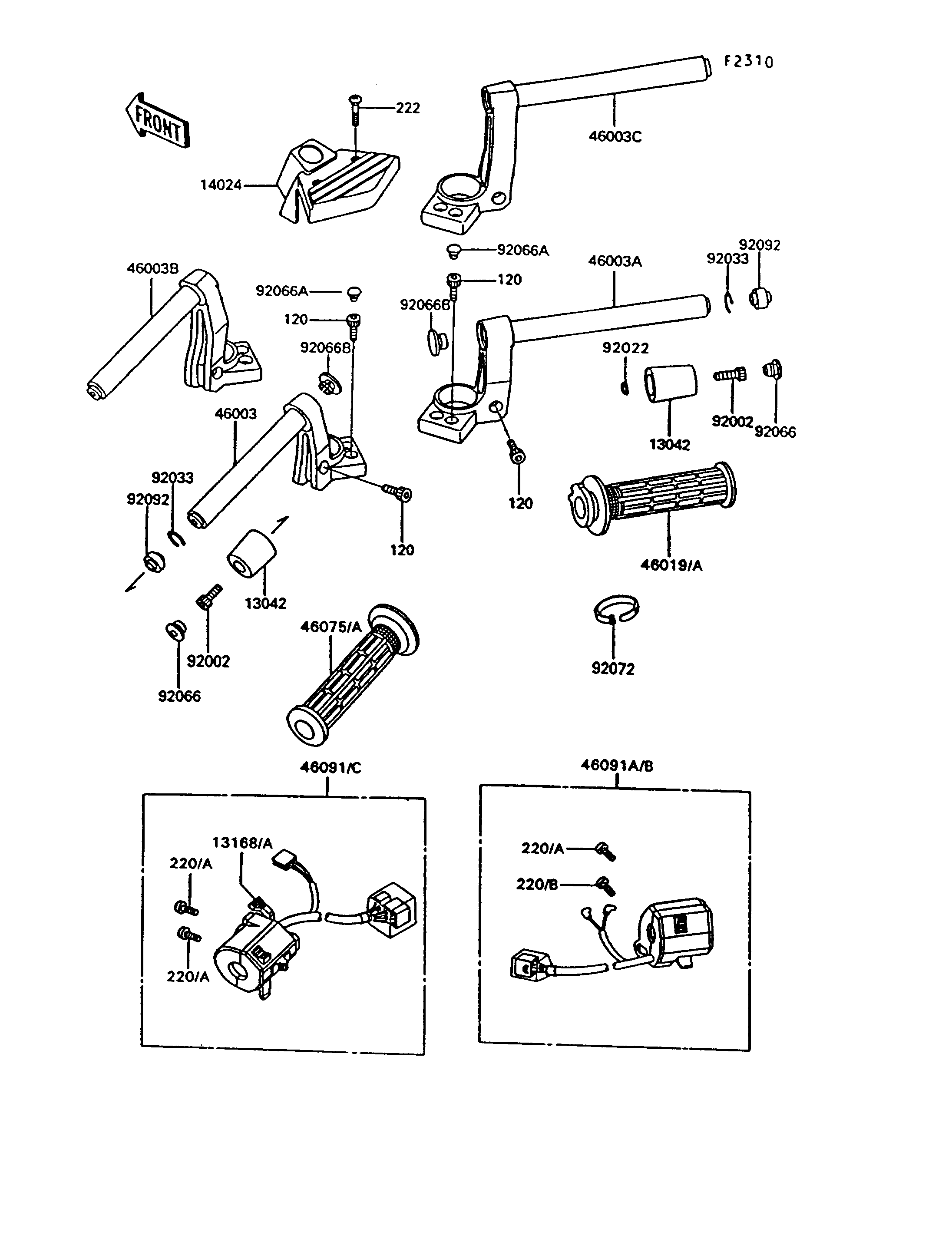

1994 Concours - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WEIGHT,HANDLE 13042 13042-1006 2
LEVER,CHOKE 13168A 13168-1516 1
COVER,HANDLE 14024 14024-1104 1
HANDLE,LH,LOW TYPE 46003 46003-1213 1 (OPTION)
HANDLE,RH,LOW TYPE 46003A 46003-1214 1 (OPTION)
HANDLE,LH,HIGH TYPE 46003B 46003-1246 1
HANDLE,RH,HIGH TYPE 46003C 46003-1247 1
GRIP-ASSY,THROTTLE 46019A 46019-1077 1
GRIP,LH 46075A 46075-1088 1
HOUSING-ASSY-CONTROL,RH 46091B 46091-1591 1
HOUSING-ASSY-CONTROL,LH 46091C 46091-1593 1
BOLT,SOCKET,8X30 92002 92002-1844 2
WASHER,8.5X14.5X1.6 92022 92022-1470 1
RING-SNAP,OD=22.2 92033 92033-1102 2
PLUG,HANDLE 92066 92066-1124 2
PLUG 92066A 92066-1216 4
PLUG,13.5X12,POLYETHYLENE 92066B 92066-1245 2
BAND,L=365 92072 92072-1197 2
BUSHING-RUBBER,HANDLE 92092 92092-1018 2
BOLT-SOCKET,8X20 120 120S0820 6
SCREW-PAN-CROS 220A 220C0525 3
SCREW-PAN-CROS 220B 220C0540 1
SCREW-CSK-RD-CROS 222 222C0525 2
